Titanium Plate 4mm

Titanium Plate 4mm

Product Name: titanium plate 4mm
Standard: ASTM B265
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting

Send Inquiry

Chat Now

Product Introduction

Name	Titanium Plate
Size	Thickness: 0.3~60mm, Width: 400~3600mm, Length: 100~5600mm
Grade	Gr 1, Gr 2, Gr 3, Gr 4, Gr5, Gr 7, Gr 9, Gr 12 etc.
Standard	ASTM B265, ASTM F67, ASTM F136 etc.
Mechanical Properties	Annealed at room temperature (20°C), tensile strength: σb≥345Mpa (50Ksi), permanent elongation stress: σ0.2≥276Mpa (40Ksi), elongation: δ4D≥20%, reduced area: Ψ≥30 %
State	Thermal processing condition (R), Cold-work condition (Y), Annealed (M)
Application	1). Chemical industry; 2). Petrochemical industry; 3). Machinery field, automobile field, etc.; 4). Desalination of sea water; 5). Textile

	N	C	H	Fe	O	Al	V		Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/		bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/		bal
Gr 3	0.05	0.08	0.015	0.30	0.35	/	/		bal
Gr 4	0.05	0.08	0.015	0.50	0.40	/	/
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5		bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	Pa:0.12-0.25	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0		bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	Mo:0.2-0.4 Ni:0.6-0.9	bal

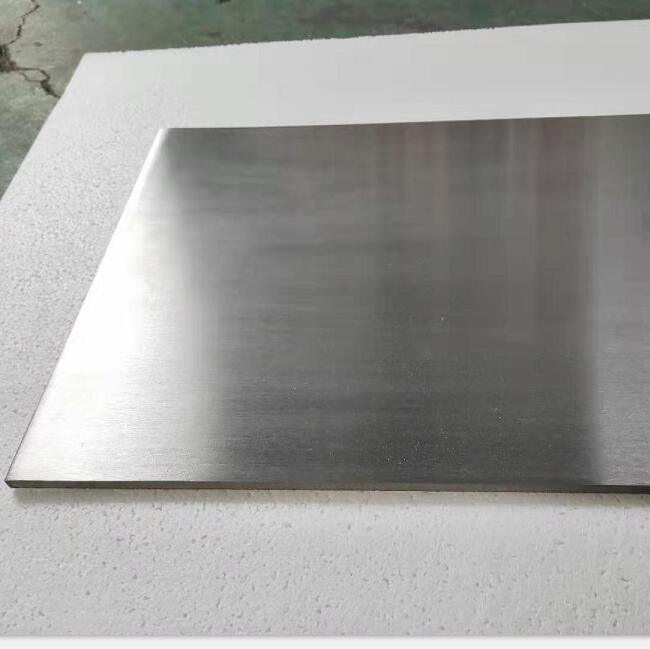

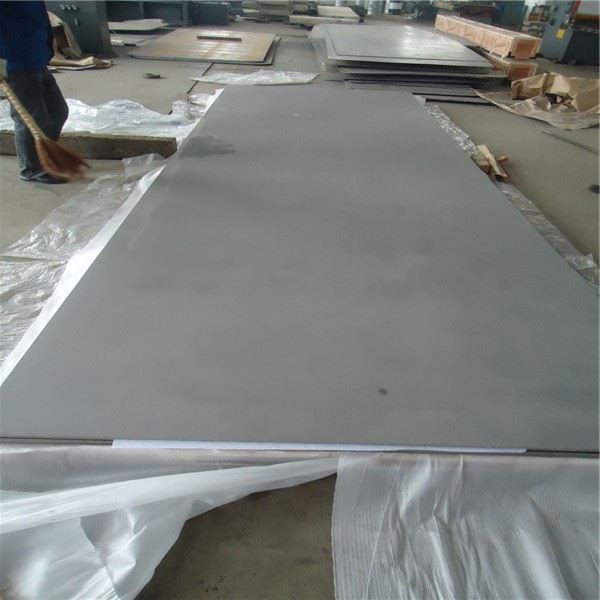

titanium sheet (41) titanium sheet (6)
