8mm Titanium Plate

Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy.

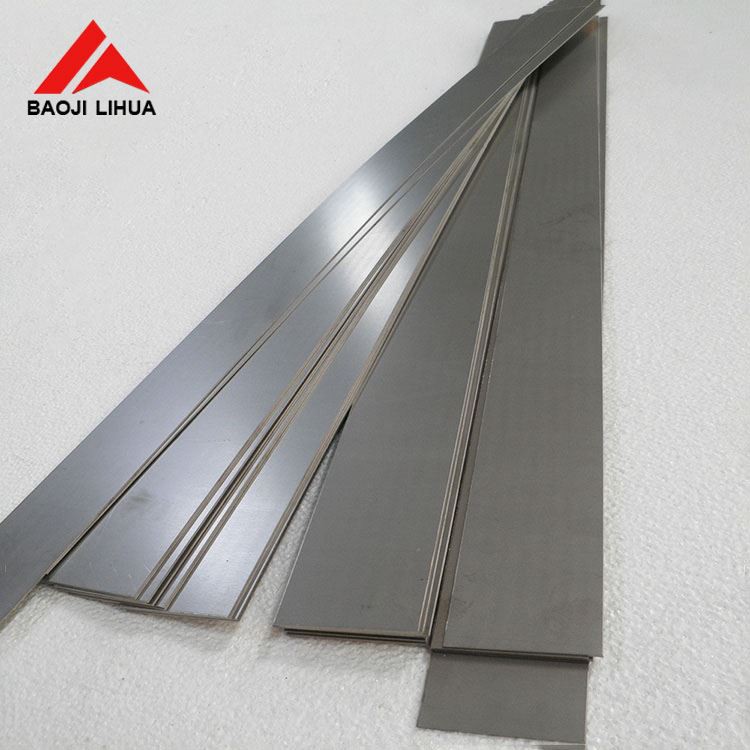

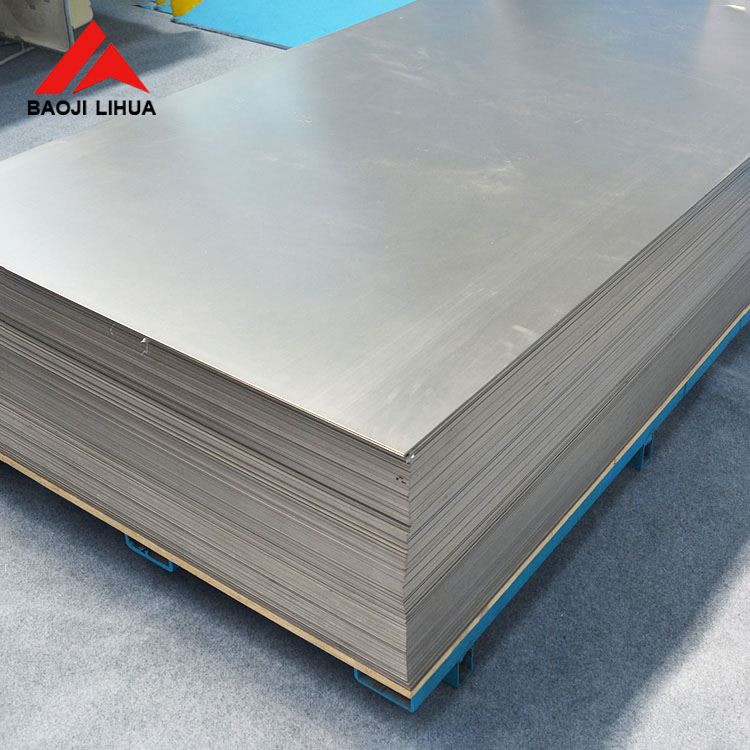

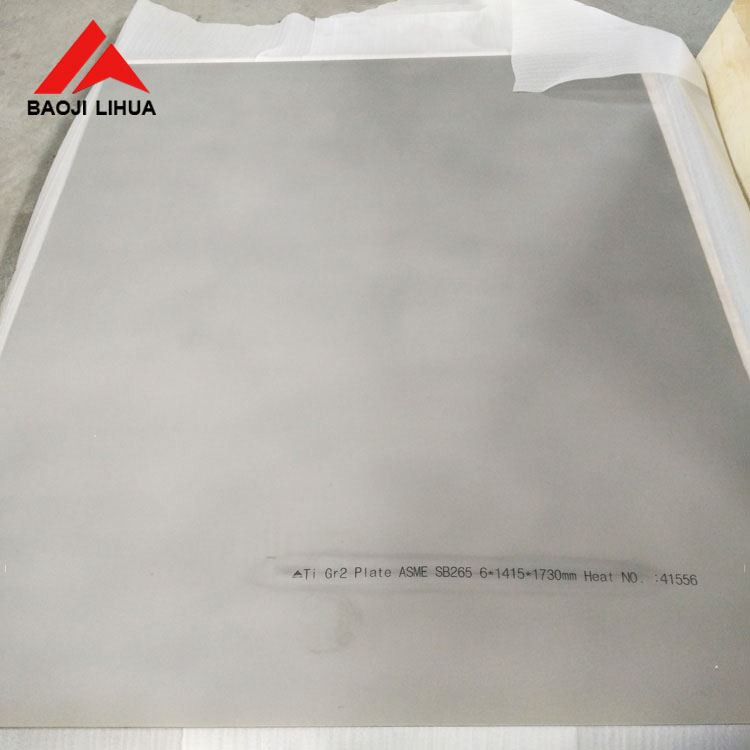

Product Name: 8mm titanium plate

Material:  Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc.

Standard: ASTM B265 ASME SB 265

Surface: Pickling, Polishing, Sand Blasting

Technique:Rolled, Forged

Thickness: 0.5-60mm

Length: 500-6000mm Or As You Require

Width: 500-1000mm Or As You Require

Status and specifications of titanium plates

Surface Quality of titanium plate

The surface of the titanium plate should be bright and clean, with a metallic color. Plates are allowed to be delivered with sandblasted surfaces. The surface of the titanium plate is allowed to have slight darkening and local water marks; local defects, scratches, indentations, pits and other defects that do not exceed half of the thickness tolerance are allowed, but the minimum thickness should be guaranteed. The surface is not allowed to have macro defects such as cracks, peeling, oxide scale, crushing, metal and non-metal inclusions, and traces of alkaline washing. The titanium plate is allowed to clear the local defects along the rolling direction, but the thickness of the plate after removal is not less than the minimum allowable thickness.

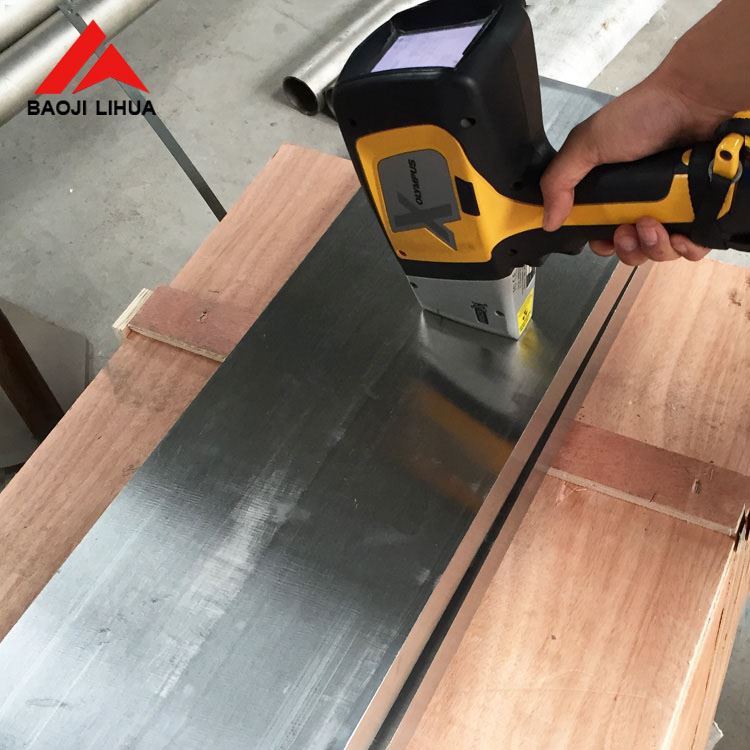

Quality test of titanium plate(PMI test )

As a titanium manufacturer with over 15 years production and export experience,we have a plenty of titanim plates in stock. Ensure high quality, and provide customers low price in the same time.

Welcome to contact us in any time!
