Astm B265 Titanium Plate

Introduction of ASTM B265 Titanium Sheet:

ASTM B265 covers annealed titanium and titanium alloy strips, sheets and plates. ASTM B265 Ti and Ti-based alloy plates are widely used in equipment for high-temperature environment, including aircraft equipment, petroleum and petrochemical, biological materials, marine and chemical industries, such as: blades, storage tanks, targets, pipes and heat exchanger equipment.

Materials Covered: ASTM B265 covers grades of titanium and titanium alloys in the form of sheets, strips, and plates. The most common grades specified include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), and Grade 7.

Dimensions and Sizes: The standard specifies dimensions, tolerances, and other technical requirements for titanium plates. This includes thicknesses ranging from 0.1875 inches (4.76 mm) to 3.000 inches (76.20 mm) and widths up to 96 inches (2438 mm) or more, depending on the grade and specific requirements.

Surface Finish: ASTM B265 also covers requirements for surface finish, which is important for applications where smoothness and aesthetics are critical.

Mechanical Properties: The standard includes requirements for mechanical properties such as tensile strength, yield strength, and elongation. These properties ensure that the titanium plates meet the necessary performance standards for their intended applications.

Chemical Composition: ASTM B265 specifies the chemical composition limits for various grades of titanium and titanium alloys, ensuring consistency and compliance with international standards.

Applications: Titanium plates conforming to ASTM B265 are widely used in industries such as aerospace, medical, chemical processing, marine, and architecture due to their excellent combination of properties including high strength-to-weight ratio, corrosion resistance, and biocompatibility.

Quality Assurance: The standard outlines procedures for testing and quality assurance to ensure that the titanium plates meet the required specifications and performance standards.

The Differences between Sheet and Plate:

Thickness:

Sheet: Sheets are typically thinner than plates. In industrial practice, sheets are often 0.1875 inches (4.76 mm) thick or less.

Plate: Plates, on the other hand, are thicker than sheets. They generally start at around 0.25 inches (6.35 mm) thick and can range up to several inches thick, depending on the material and application.

Size:

Sheet: Sheets are generally available in standard sizes up to 96 inches (2438 mm) in width and 144 inches (3658 mm) in length.

Plate: Plates are often larger in dimension compared to sheets. They can exceed standard sheet sizes and are used for more substantial structural or heavy-duty applications where greater thickness and strength are required.

Application:

Sheet: Sheets are commonly used where a combination of light weight, formability, and corrosion resistance is needed. They are prevalent in industries such as aerospace (for skins of aircraft), automotive (body panels), and medical (implants).

Plate: Plates are preferred in applications that require higher mechanical properties, strength, and durability. They are used in structural applications such as bridges, pressure vessels, ship hulls, and heavy machinery components.

Manufacturing Process:

Sheet: Sheets are often produced by rolling or cold-forming processes, which can produce thinner gauges with consistent thickness and surface finish.

Plate: Plates are generally produced by hot rolling or hot forming processes, which allow for thicker sections with greater structural integrity and less surface finish variation.

Cost:

Sheet: Sheets are typically more cost-effective than plates due to their thinner gauge and simpler manufacturing processes.

Plate: Plates are more expensive due to their thicker gauge, larger size, and often more rigorous manufacturing requirements to meet strength and quality standards.

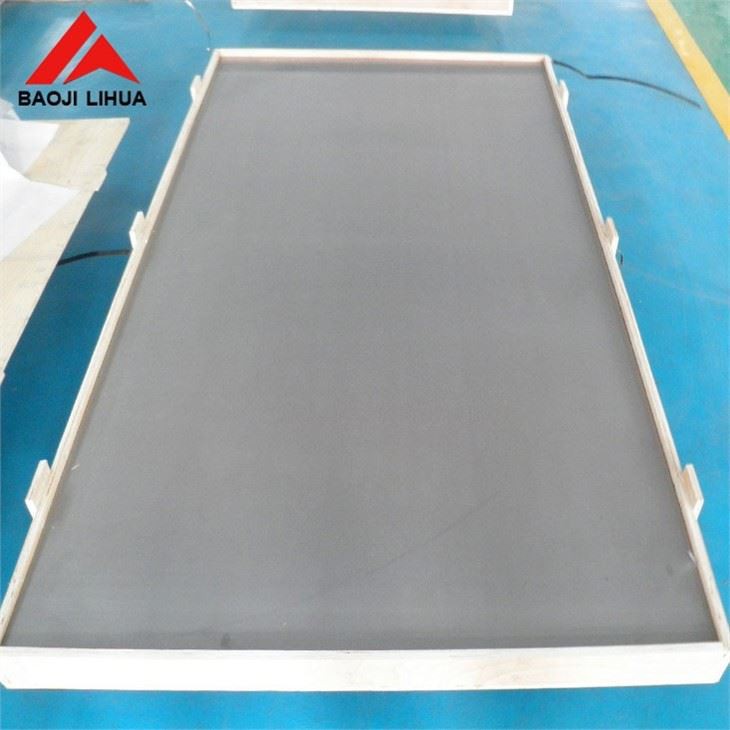

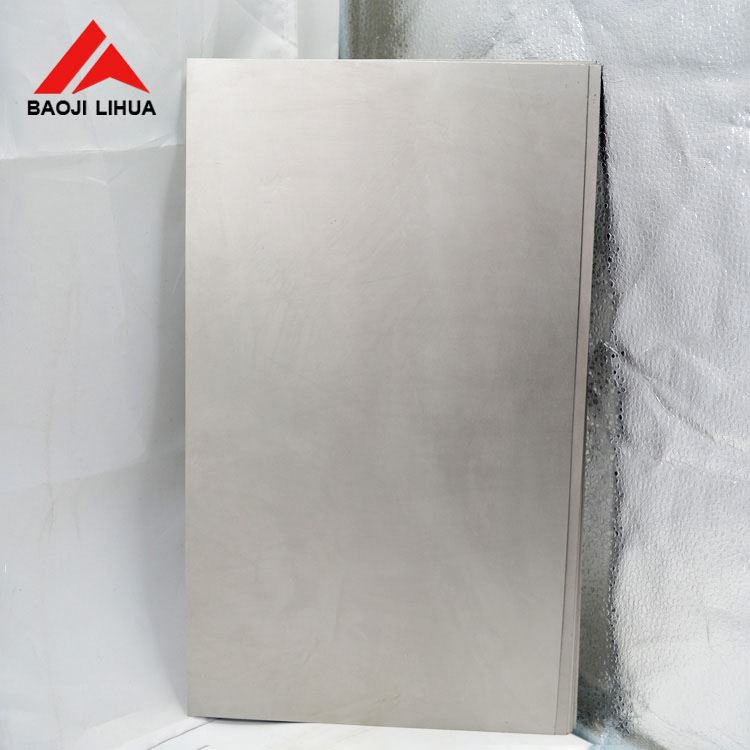

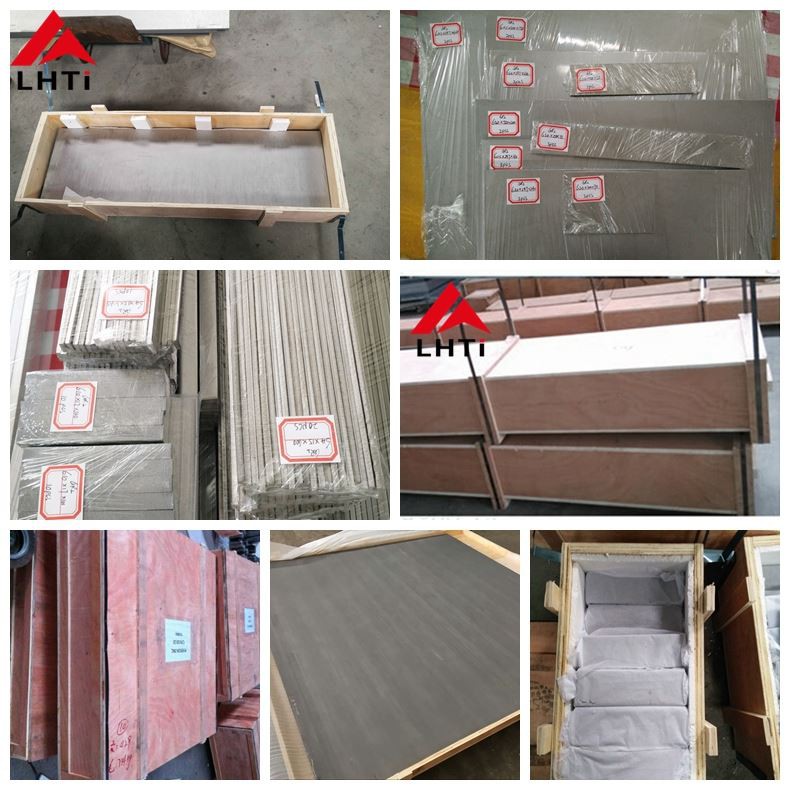

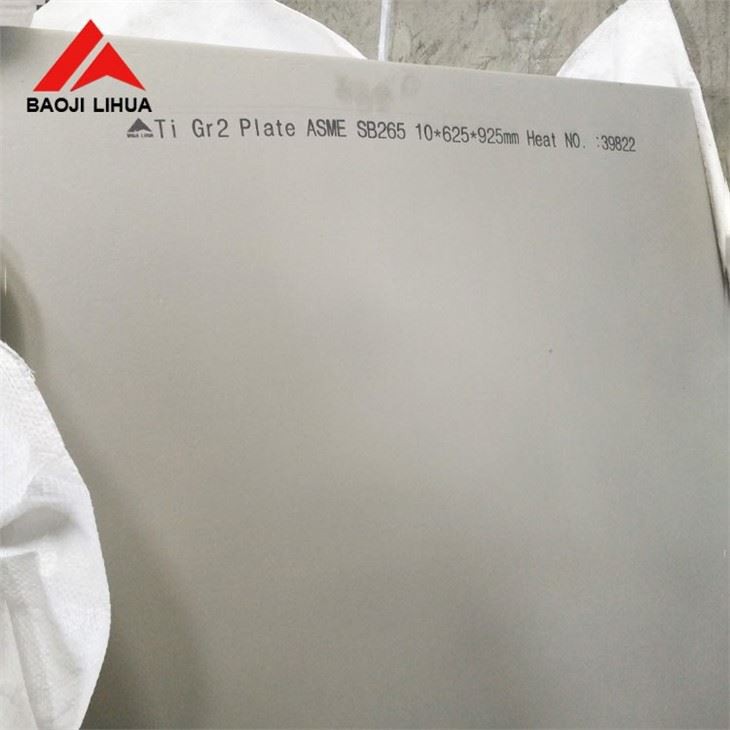

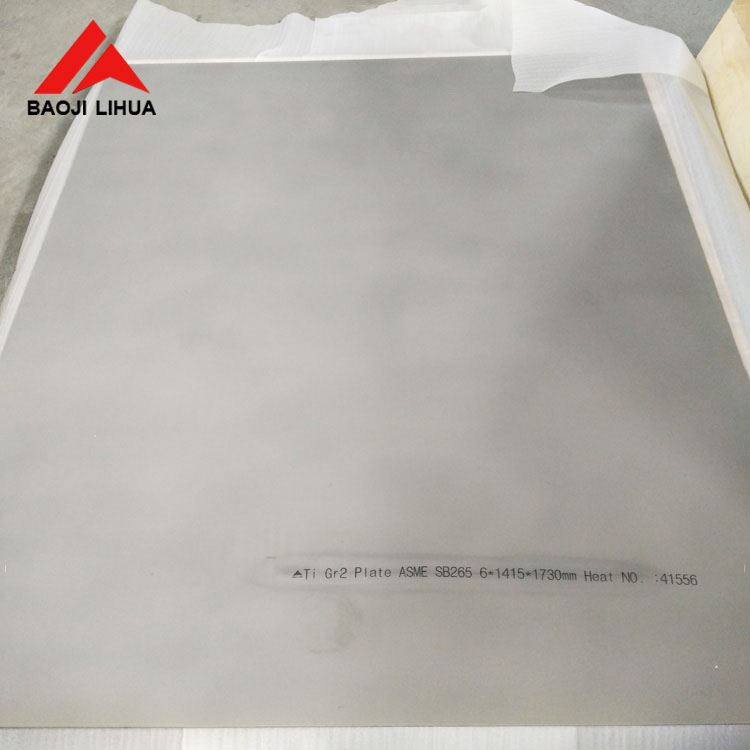

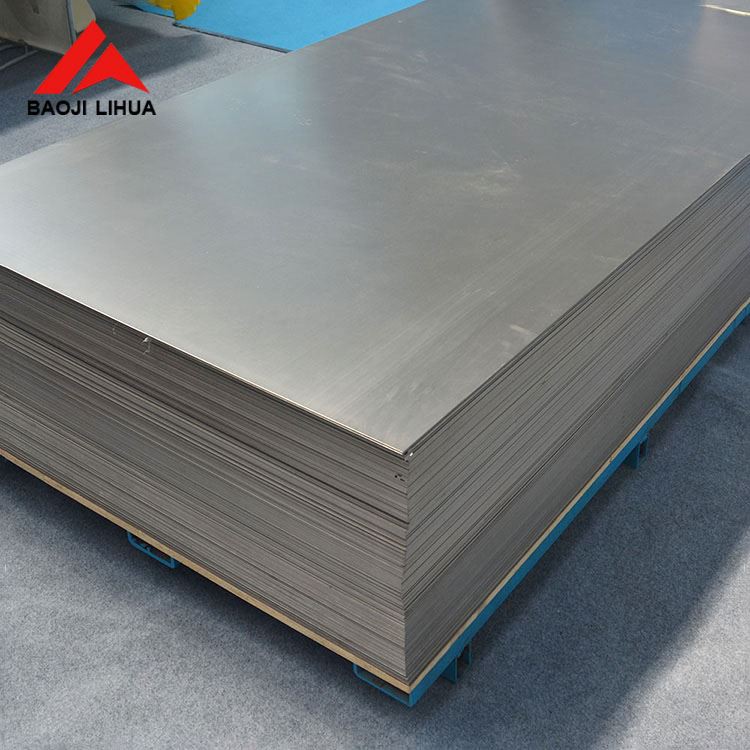

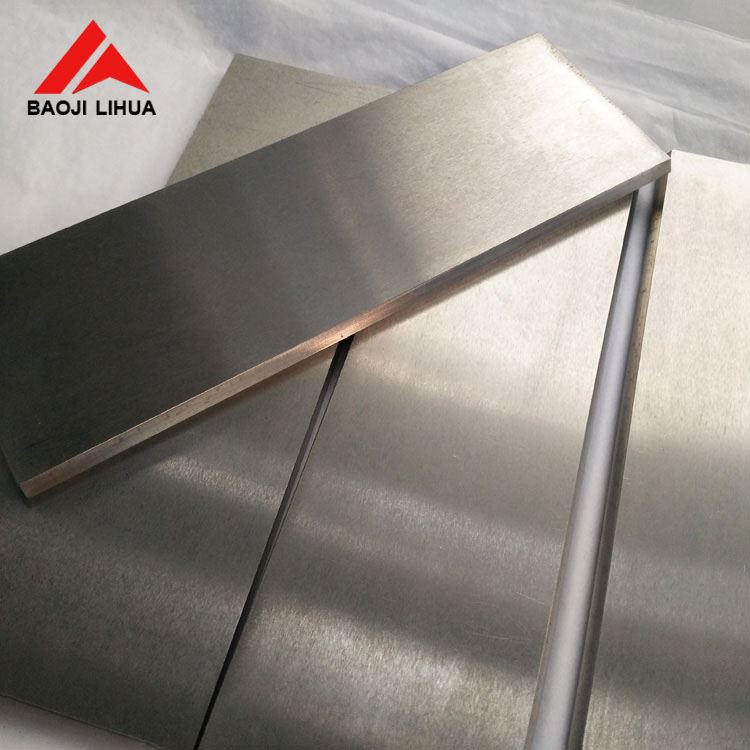

Detailed Images:

All Tests of ASTM B265 Titanium Plate:

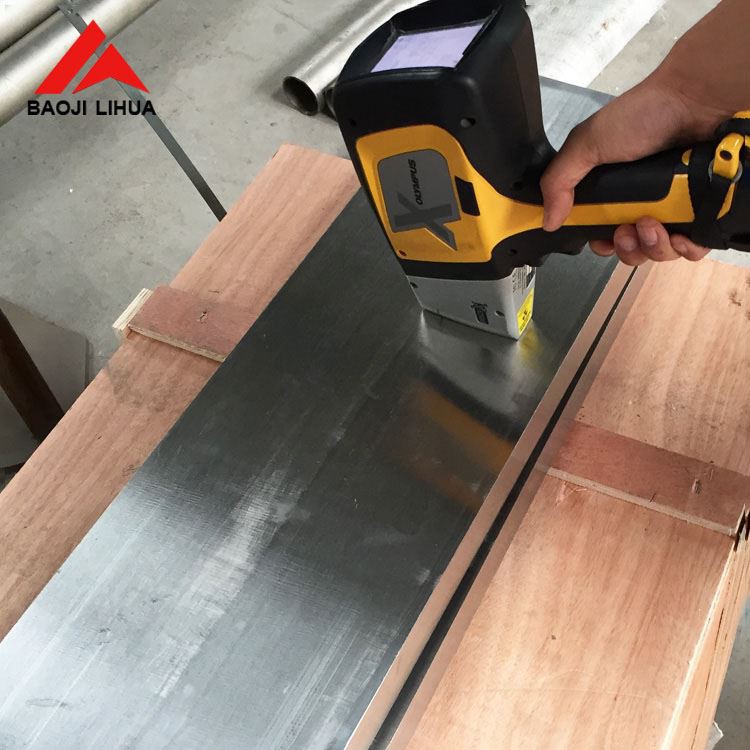

Chemical Composition Analysis: This test verifies that the chemical composition of the titanium plate conforms to the specified limits for elements such as oxygen, nitrogen, hydrogen, iron, carbon, and other trace elements depending on the grade of titanium alloy.

Mechanical Properties Testing:

Tensile Properties: This includes tests for ultimate tensile strength, yield strength, and elongation. These properties ensure that the titanium plate has the necessary mechanical strength for its intended application.

Hardness Testing: Hardness tests such as Rockwell hardness or Brinell hardness may be performed to assess the hardness characteristics of the titanium plate.

Microstructure Examination: Microstructural analysis can be conducted to examine the grain size and morphology of the titanium alloy, ensuring it meets specified requirements for grain size distribution and uniformity.

Dimensional Inspection: This involves measuring the thickness, width, and length dimensions of the titanium plate to ensure they meet the specified tolerances and dimensional requirements outlined in ASTM B265.

Surface Finish Evaluation: Surface finish tests assess the surface smoothness and visual appearance of the titanium plate, ensuring it meets the specified surface finish requirements for its intended application.

Ultrasonic Testing (Optional): Depending on the application and customer requirements, ultrasonic testing may be performed to detect internal defects such as voids, cracks, or inclusions within the titanium plate.

Non-destructive Testing (NDT): Other NDT methods such as dye penetrant testing or magnetic particle testing may be employed to detect surface and near-surface defects that could affect the integrity of the titanium plate.

Certification and Documentation: ASTM B265 requires that manufacturers provide certification and documentation that demonstrates compliance with all specified requirements, including test results, chemical composition, mechanical properties, and dimensional measurements.

Titanium plate applications:
