Titanium Sheet Gr5

Titanium Sheet Gr5

Product Name: Titanium 6al4v plate
Standard: ASTM B265 , AMS 4911 , ASTM F136
Material: Gr5
Unit Price: $19.5usd/kg-$48usd/kg
Thickness: 0.3-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting

Send Inquiry

Chat Now

Product Introduction

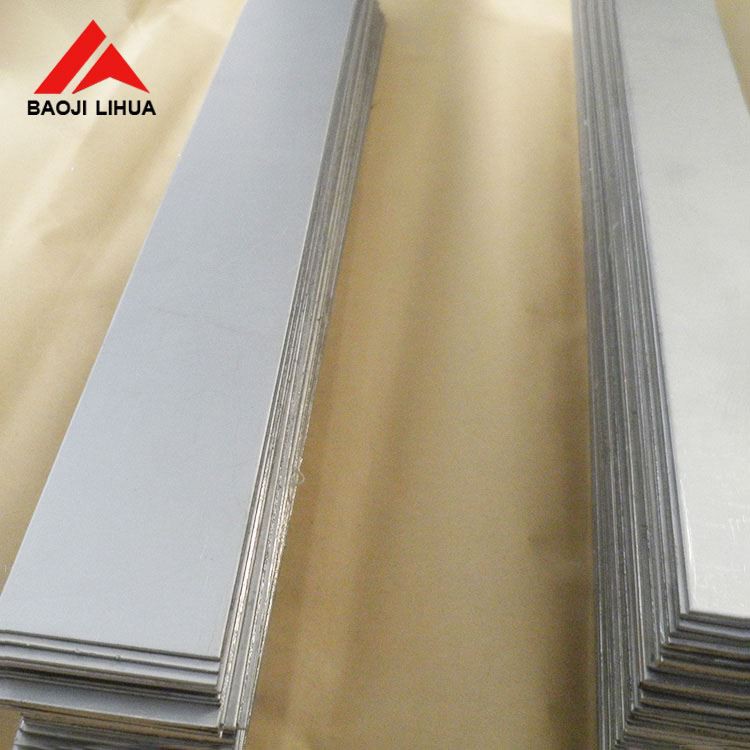

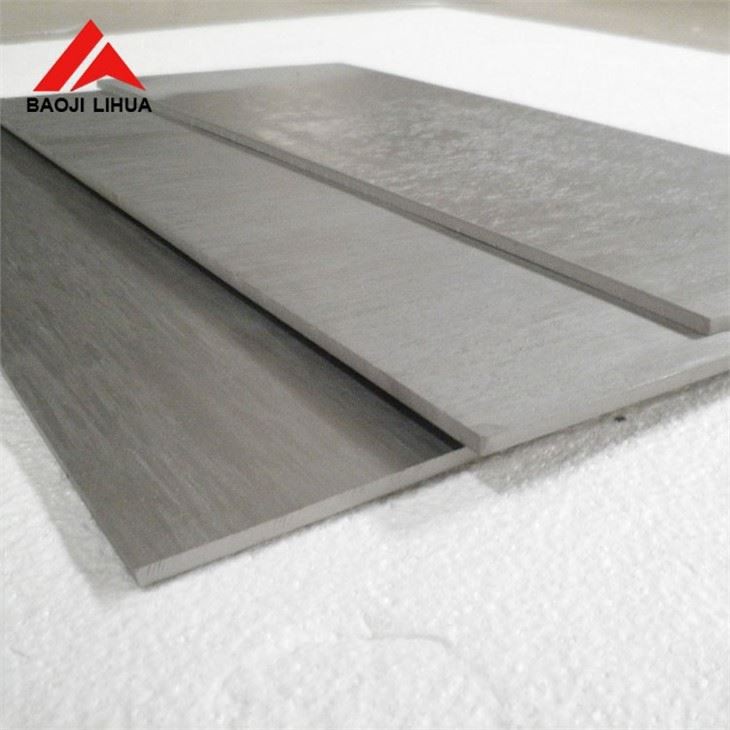

Titanium sheet gr5

Ti-6Al-4V alloy has become a trump alloy in titanium alloy industry because of its good heat resistance, strength, plasticity, toughness, formability, weldability, corrosion resistance and biocompatibility. The use of this alloy has accounted for 75% ~ 85% of all titanium alloys. Many other titanium alloys can be regarded as modifications of Ti-6Al-4V alloy.

Product name	Grade 5 Titanium sheet
Material grade	Gr5 /Ti-6Al4V
Certificate	ISO9001:2008,TUV, material test certificate EN10204.3.1
Standard	ASTM B265,ASME SB265,AMS4911,ASTM F136
Tehnique	Hot/cold rolled
Surface	Acid wash,polished
Dimensions	Thickness:0.3-100mm
	Width:20-1220mm
	Length:500-6000mm

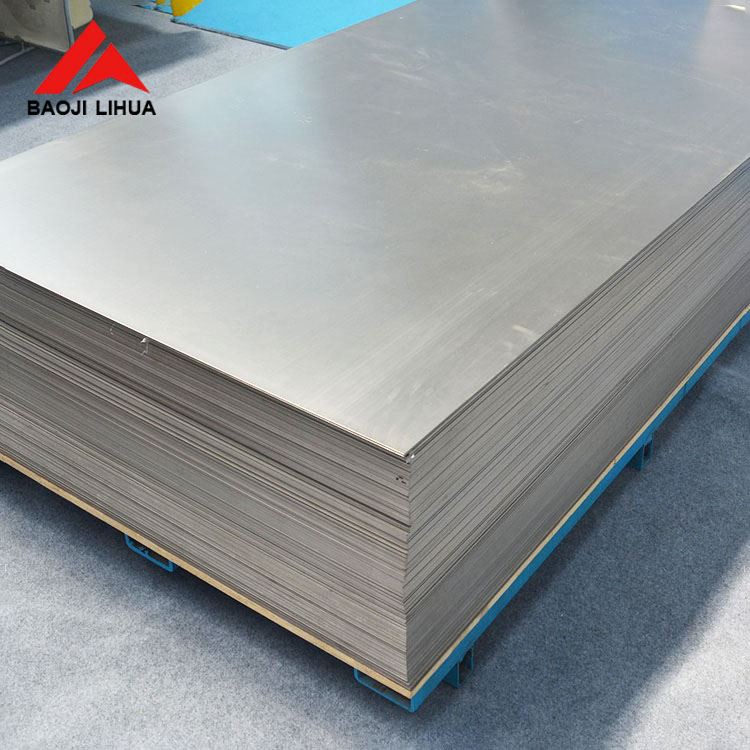

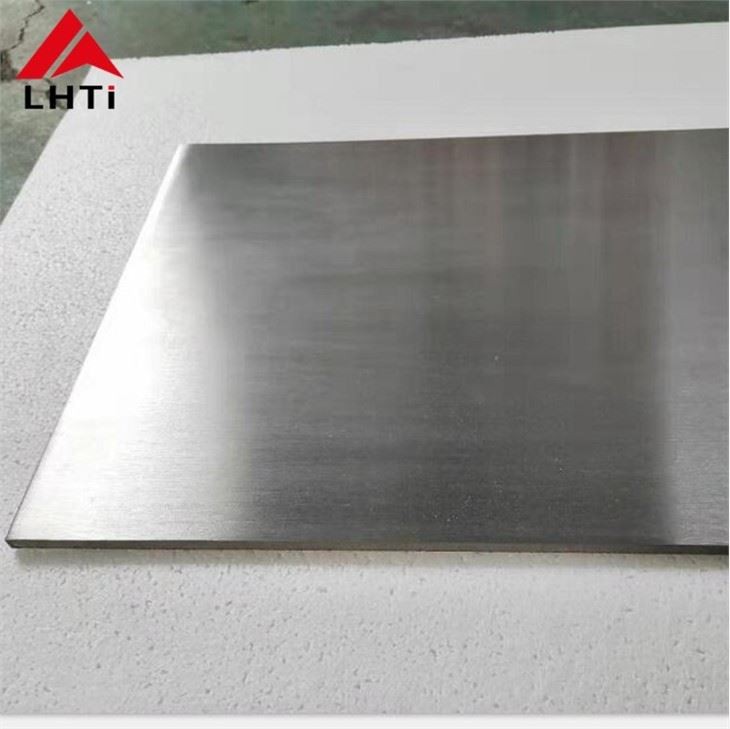

Titanium 6al4v plate
Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Remainder	5.5-6.75	3.5-4.5	0.30	0.08
N	H	O	Other(total)
0.05	0.015	0.2	0.4
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	830	8-12	18-30
