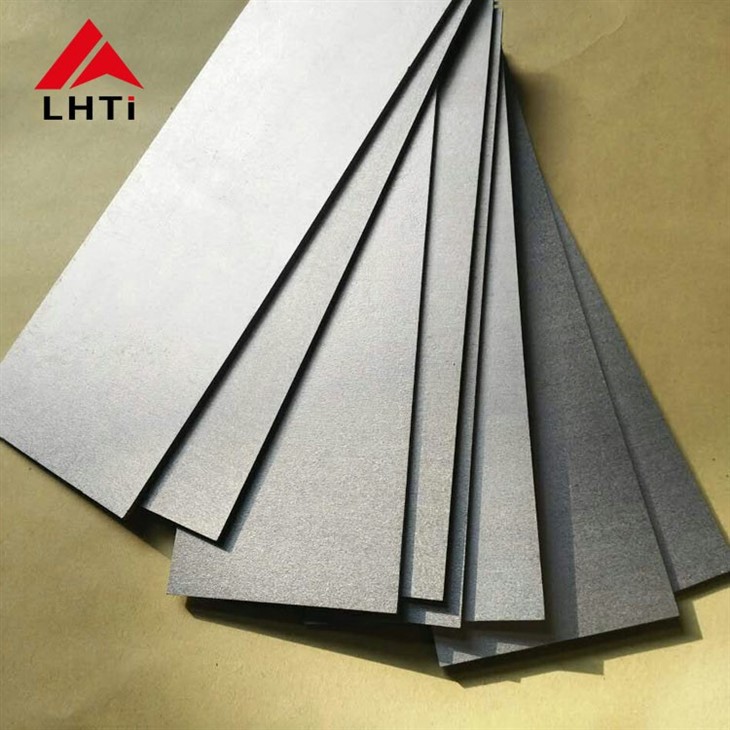

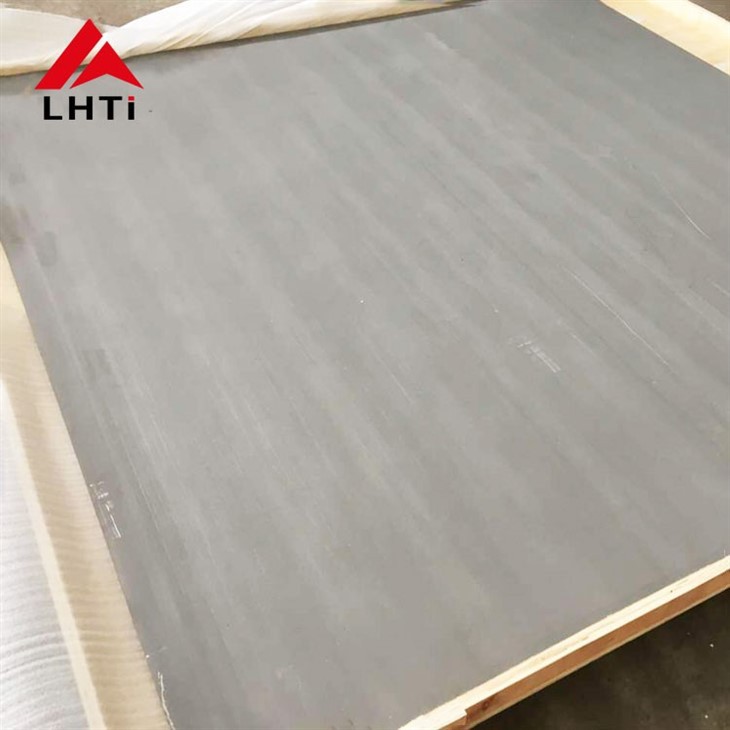

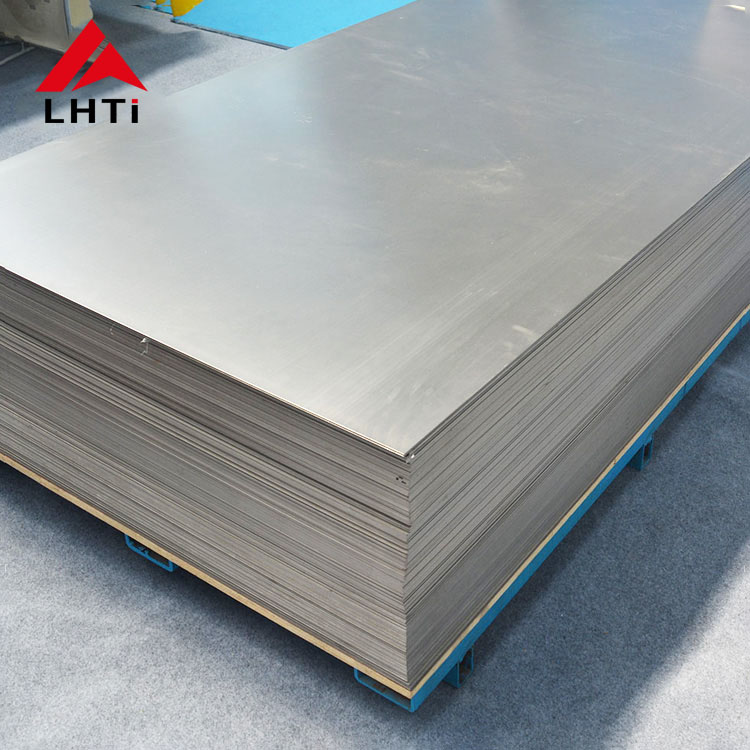

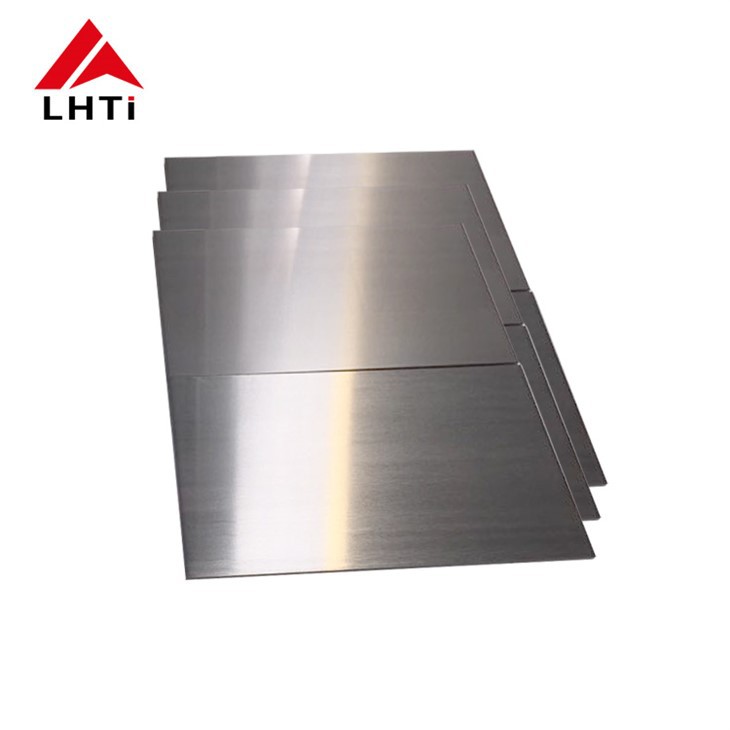

Gr5 Titanium Plate Hot Rolled Pickling Surface Corrosion Resistance
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer
Gr5 Titanium Plate Hot Rolled Pickling Surface Corrosion Resistance
Titanium plate(sheet) for heat exchanger is a metal sheet with a corrugated shape by a series of stacked a new high-efficiency heat exchanger between various plates to form a thin rectangular channel, through the process of heat exchange it half a piece of shell and tube type heat exchanger in general, consumption in the same flow resistance and pump power under the condition, the heat transfer coefficient is much higher.
Features:
Material: Gr. 1, Gr. 11, Gr. 17
Standard: ASTM B265
Size: (0.5~1.0) T * (300~1000) W * (800~3000 )L mm
State: M, Annealed
Surface: Vacuum annealing bright
Erichsen number >11.0 mm
Tensile strength >280 MPa
Yield strength >185 MPa
Heat exchanger is widely used in metallurgy, petroleum, chemical industry, food, pharmaceutical, ship, textile, papermaking. It is considered to be excellent equipment for heating, cooling, heat recovery, and sterilization purposes.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
