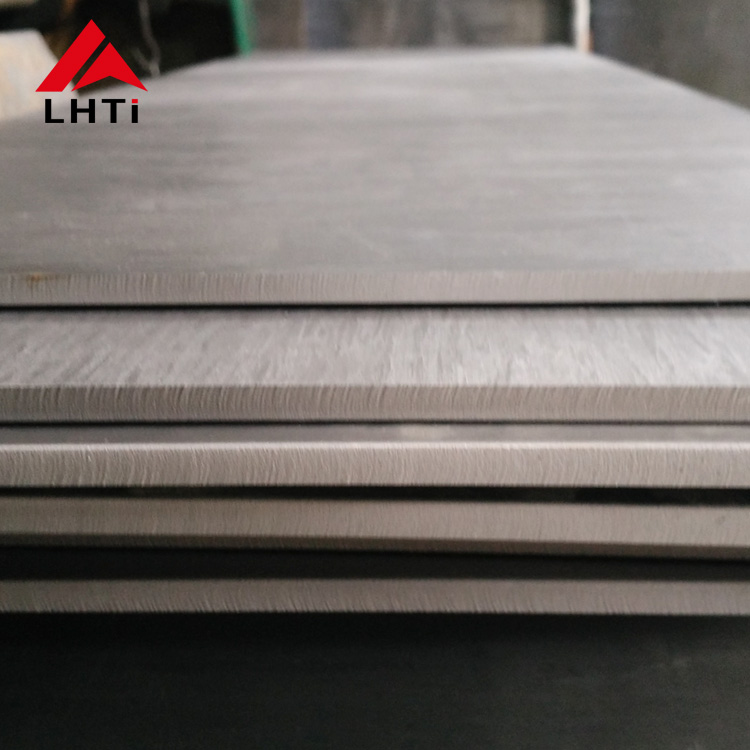

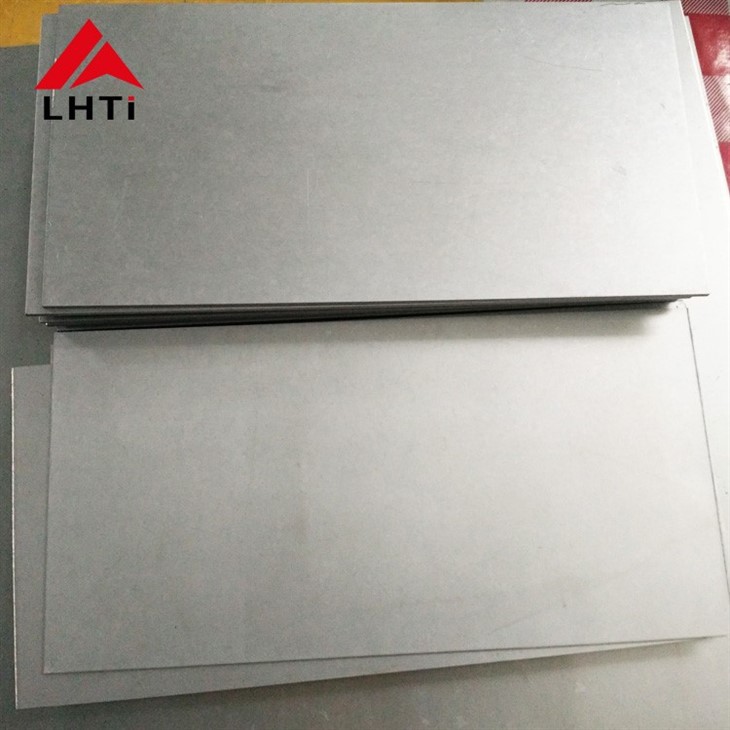

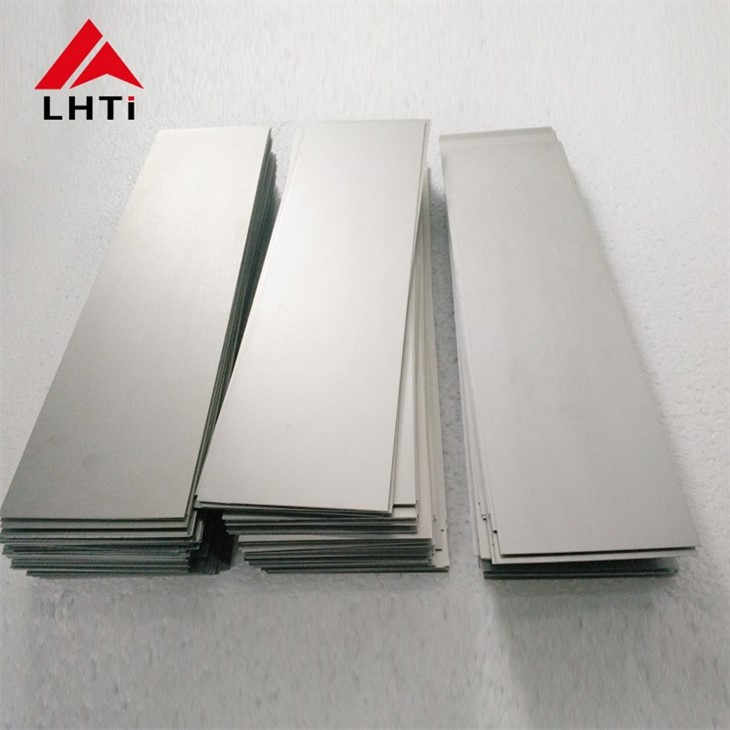

AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length
Product Name: Titanium Plate
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer
Send Inquiry
Chat Now
Product Introduction

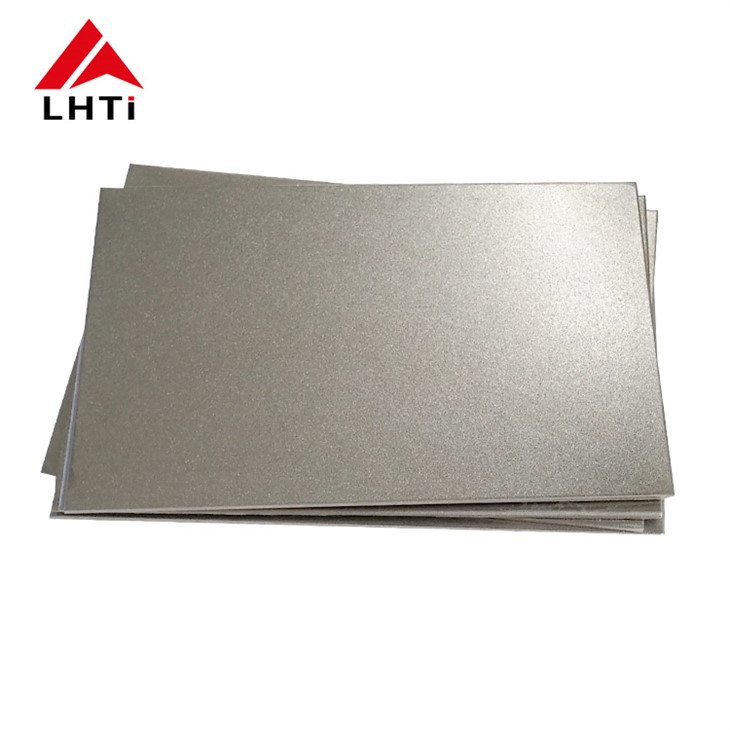

AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
| Standard | l ASTM B265 | |||
| Grade | l Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23 etc. | |||
| Technology | l Hot rolling,Cold rolling | |||
| Test | l Ultrasonic test(UT),X-ray test | |||
| Thickness | l Foil: ≤ 0.3mm l Plate: > 0.3mm | |||
| Standard specifications | l Width: <1.1m l Length: <2.2m Special specifications can be customized | |||
| Manufacturing methods | l Hot rolling and cold rolling | |||
| Annealing temperature: | l 700~785°C | |||
| Size(mm) | Length | Width | Thickness | |
| Hot rolling | 1000~4000 | 400~3000 | 4.1~60 | |
| Cold rolling | 1000~3000 | 400~1500 | 0.3~6 | |
