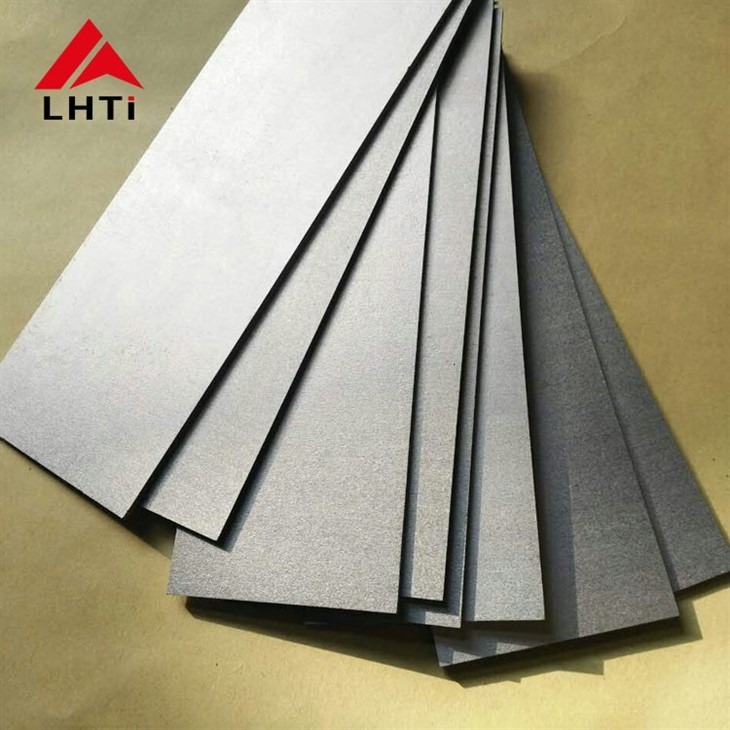

Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer

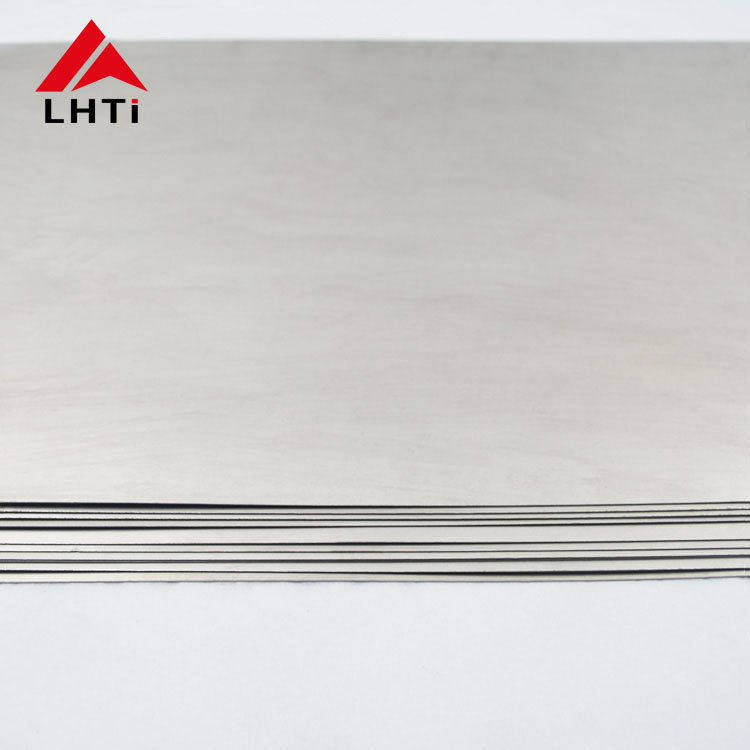

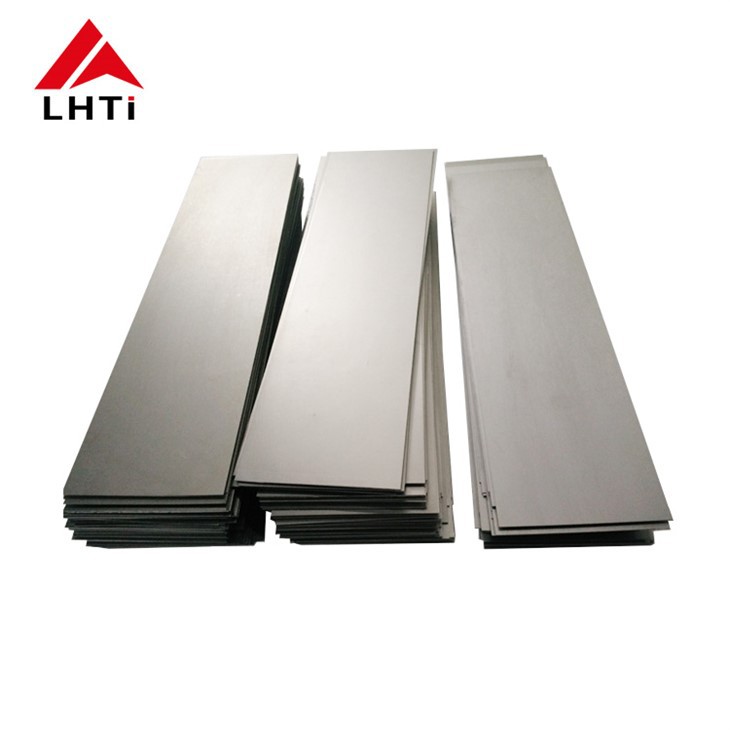

Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Product Information
1. Plate quality: GR5 titanium alloy plate
2. Specification: about 1000 length, 2000 width, and plate with thickness *1m*2m
3. Executive standard: AMS4911, etc.
4. Titanium plate features: low density, light texture, high temperature resistance, corrosion resistance, high tensile strength of titanium alloy plate, good mechanical properties
5. Application: widely used in electric power, chemical industry, ship, military industry, aviation, medical treatment, electroplating, petroleum exploitation and other fields.
6. Quality assurance: the company has a strict inspection of the quality of titanium plate and mature processing technology (such as chemical composition, mechanical properties, metallographic structure, tolerance, flaw detection) shipping can be issued to customers material certification, products through ISO9001 certification.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
