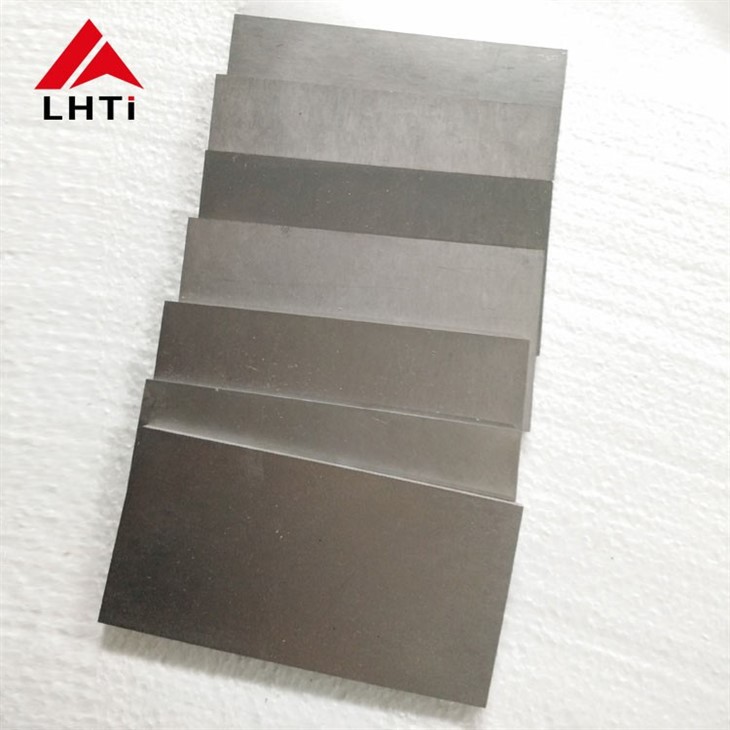

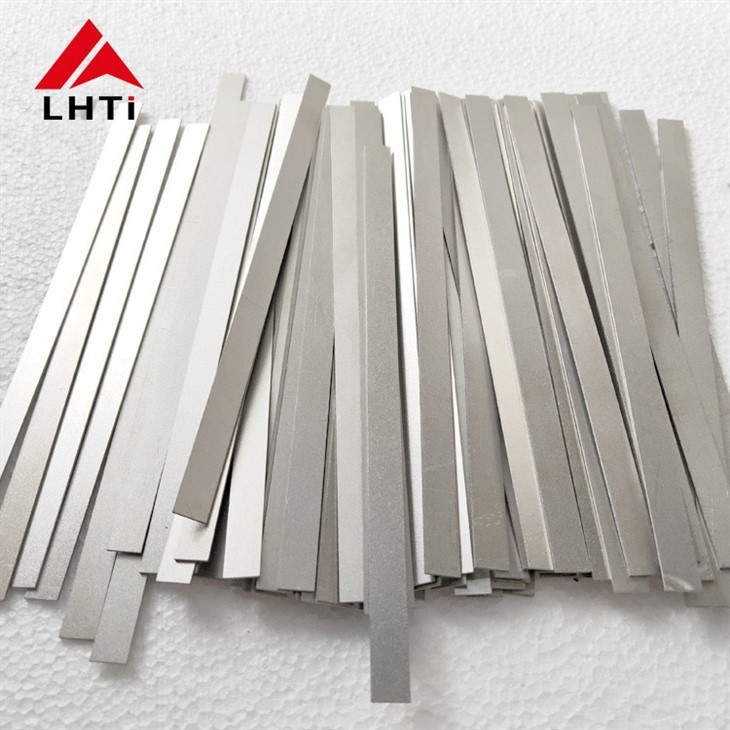

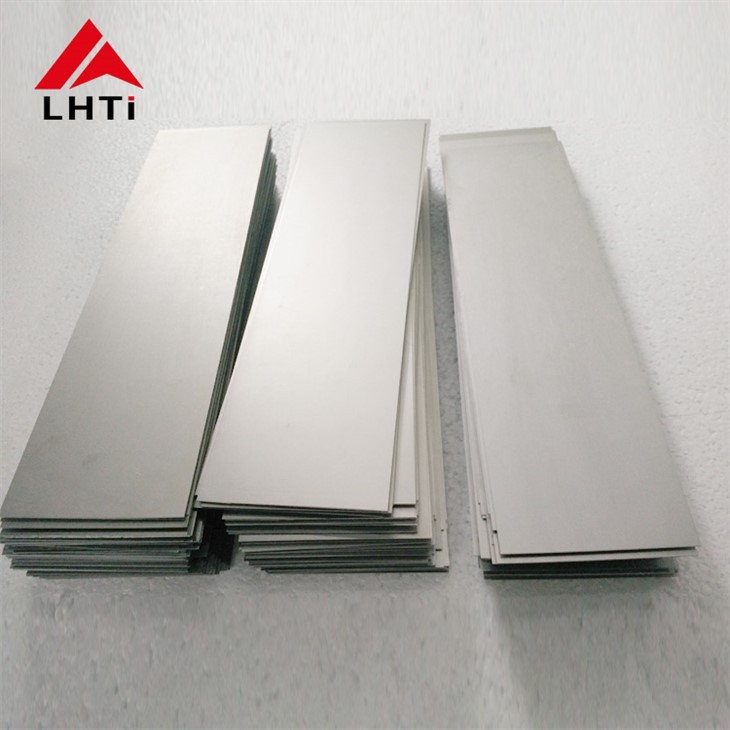

Grade7 Titanium Plate Titanium Sheet

Introduction of Grade7 Titanium Plate Titanium Sheet:

Titanium Grade 7 has physical and mechanical properties equivalent to CP3 titanium or Grade 2. It has excellent welding and fabrication properties and is extremely resistant to corrosion, especially from reducing acids.

Grade 7 titanium is a titanium alloy known for its excellent corrosion resistance in reducing environments and its ability to withstand moderate temperatures. Here's an introduction to Grade 7 titanium plate and sheet:

Composition and Properties:

Composition: Grade 7 titanium is primarily composed of titanium (Ti) with approximately 0.12-0.25% palladium (Pd) and small amounts of other elements like nickel (Ni) and ruthenium (Ru). This alloy composition enhances its corrosion resistance compared to pure titanium (Grade 1 to Grade 4).

Properties: Grade 7 titanium offers a balance of strength, weldability, formability, and corrosion resistance. It is particularly resistant to corrosion in oxidizing acids, seawater, and chlorides, making it suitable for applications in chemical processing, marine environments, and other corrosive environments.

Applications of Grade 7 Titanium Plates and Sheets: A Comprehensive Overview

Grade 7 titanium, also known as Titanium-0.2Pd, is a specialized titanium alloy renowned for its exceptional corrosion resistance, making it invaluable in several critical industries. Its unique properties extend its utility far beyond standard applications, contributing significantly to advancements in chemical processing, marine, and medical fields.

In the chemical processing industry, Grade 7 titanium plates and sheets are indispensable for fabricating equipment such as reactors, heat exchangers, and valves. These components are frequently exposed to highly corrosive substances, including acids and chlorides. The alloy's superior resistance to corrosion ensures the longevity and reliability of such equipment, preventing premature failure and reducing maintenance costs. The alloy's ability to withstand aggressive chemical environments while maintaining structural integrity makes it a preferred choice for these demanding applications.

The marine industry also benefits greatly from Grade 7 titanium. Its resistance to seawater and chloride environments is particularly valuable for components exposed to harsh marine conditions. Offshore oil and gas platforms, boat hulls, and propeller shafts made from Grade 7 titanium exhibit outstanding durability and resistance to seawater-induced corrosion. This makes the alloy an essential material for marine applications where performance and longevity are critical.

In the medical field, Grade 7 titanium's biocompatibility and corrosion resistance make it suitable for specific medical implants. Although less commonly used than Grade 5 titanium (Ti-6Al-4V), Grade 7 titanium still finds its niche in applications where the alloy's properties align with the requirements for biocompatibility and resistance to bodily fluids. Its use in medical implants ensures long-term functionality and patient safety.

Overall, Grade 7 titanium plates and sheets offer a versatile solution for industries requiring high resistance to corrosion and durability. Its applications in chemical processing, marine environments, and medical implants highlight its critical role in advancing technology and ensuring the reliability of essential equipment and devices.

Properties and Performance:

Mechanical Properties: Grade 7 titanium exhibits good strength properties comparable to other titanium alloys in the annealed condition. Its mechanical properties can be further enhanced through heat treatment processes.

Corrosion Resistance: The alloy's resistance to corrosion in various environments is a standout feature, particularly in environments where oxidizing acids and chlorides are present.

Manufacturing and Forms:

Production: Grade 7 titanium plates and sheets are typically produced using processes such as hot rolling, cold rolling, or annealing depending on the required thickness and mechanical properties.

Forms: They are available in various forms including sheets and plates. Sheets are generally thinner (up to a few millimeters thick), while plates are thicker and can be used for structural applications.

Grade 2 and Grade 7 Titanium Plate Titanium Sheet:

Grade 7 titanium and Grade 2 titanium are both titanium alloys but differ in composition, properties, and applications. Here's a comparison between Grade 7 titanium plate/sheet and Grade 2 titanium:

Composition:

Grade 7 Titanium: Contains titanium as the base metal with approximately 0.12-0.25% palladium and small amounts of nickel and ruthenium. The addition of palladium enhances its corrosion resistance compared to Grade 2 titanium.

Grade 2 Titanium: Pure titanium with trace amounts of oxygen, nitrogen, carbon, hydrogen, and iron. It is the most commercially pure titanium grade, offering excellent weldability and formability.

Mechanical Properties:

Grade 7 Titanium: Offers good strength properties, although slightly lower than Grade 2 titanium. Its mechanical properties can be further improved through heat treatment processes.

Grade 2 Titanium: Known for its high ductility, excellent weldability, and formability. It has lower strength compared to alloyed titanium grades like Grade 5 (Ti-6Al-4V) or Grade 7.

Corrosion Resistance:

Grade 7 Titanium: Superior corrosion resistance in reducing environments compared to Grade 2 titanium. It is particularly resistant to corrosion in oxidizing acids, seawater, and chloride environments.

Grade 2 Titanium: Offers good corrosion resistance, especially in environments where it is exposed to mild reducing or neutral conditions. It is not as resistant to chloride environments as Grade 7.

Applications:

Grade 7 Titanium: Commonly used in industries requiring high corrosion resistance, such as chemical processing (reactors, heat exchangers), marine applications (boat hulls, propeller shafts), and certain medical implants.

Grade 2 Titanium: Widely used in applications where its excellent weldability, formability, and moderate strength are advantageous, such as aerospace structures, chemical industry (piping, valves), and medical devices (surgical implants).

Cost:

Grade 7 Titanium: Typically more expensive than Grade 2 titanium due to its alloying elements, especially palladium.

Grade 2 Titanium: Generally more cost-effective compared to alloyed titanium grades due to its simpler composition and widespread availability as commercially pure titanium.

Fabrication:

Forging:

Titanium Grade 7 is forged at temperatures between 815°C and 900°C, which is a narrow range compared to other metals.

Hot forging creates an outer layer of titanium oxide called "alpha case," which is very hard and must be removed by pickling in nitric and hydrofluoric acids.

Cold Forming:

After forging or annealing, Titanium Grade 7 can be cold formed using standard methods without forming the alpha case.

Pickling may still be required to remove embedded carbon steel pickup to prevent corrosion.

Machinability:

Titanium Grade 7 is machinable using conventional methods.

Its machinability is comparable to austenitic stainless steels.

Due to low thermal conductivity, using plenty of coolant during machining is recommended.

Sharp tools are essential for effective machining.

Weldability:

Titanium Grade 7 is readily weldable using Gas Metal Arc Welding (GMAW) and Gas Tungsten Arc Welding (GTAW) processes.

Preheat or post weld heat treatments are generally not required.

The welding area must be meticulously cleaned of grease, dirt, and other contaminants.

Cleaning methods include abrasive cleaning, solvent cleaning, and pickling with nitric and hydrofluoric acids.

A trailing gas shield is essential during welding to prevent heavy oxidation during cooling.

Matching filler metal AWS ERTi-7 should be used.

The welding gas shield must be low in hydrogen, oxygen, and nitrogen to prevent embrittlement of the titanium.

In summary, Titanium Grade 7 is relatively easier to forge compared to other titanium alloys but requires careful handling
