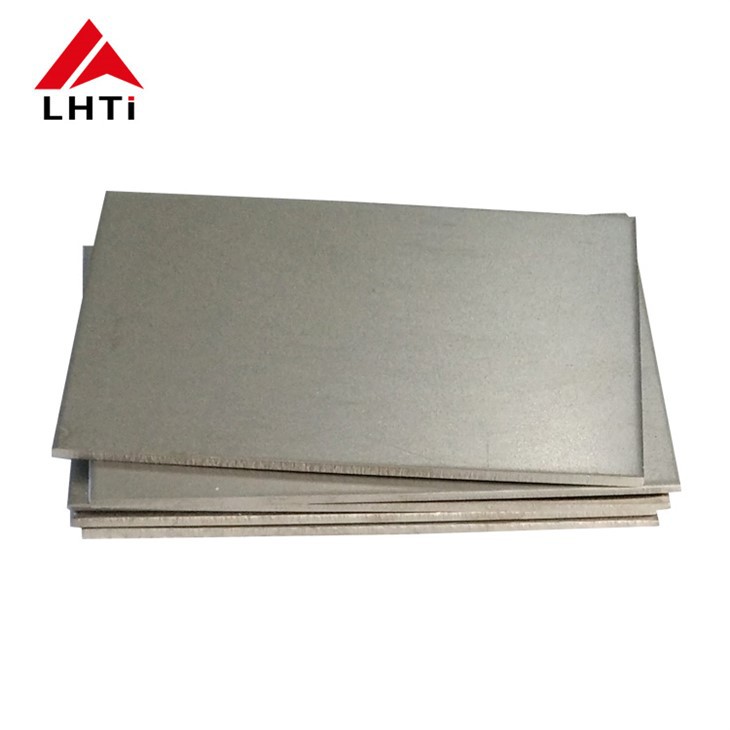

Grade7 Titanium Plate Titanium Sheet

Ti6AL4V Titanium plate is forged and annealed in the α+β phase zone to obtain an equiaxed grain structure with a relatively high plasticity (6 and). After forging in the β phase zone, it is air-cooled and the structure annealed at 705°C is Wei Its structure has high fracture toughness and fatigue strength. This shows that fatigue cracks extend along the c cluster of Widmanstatten structure, the path is tortuous, and the speed is slow, which is consistent with the high fatigue strength of Widmanstatten structure of a alloy.

Typical heat treatment process for Ti-6A1-4V alloy.

① Stress relief annealing: 600℃, 2~4h, air cooling.

②Factory annealing: 700℃, 2h, air cooling, or 800℃, 1h, air cooling.

③Recrystallization annealing: 930C, 4h, furnace cooling to 480℃, air cooling after discharge

④Double annealing: 940℃, 10min, air cooling +700°℃, 4h, air cooling.

⑤Solid solution treatment over-aging: 940C, 10min, water cooling +700°C, 4h, air cooling.

⑥Solution treatment + aging: 940C, 10min, water cooling +540C, 4h, air cooling, or 900℃, 30min, water cooling +500℃, 8h, air cooling.

Ti6AL4V Titanium Plate Specification ：

Width:2000mm or customized

Length:6000mm or customized

Technique:Hot Rolled Grades availble:Gr5 Gr7 Gr9 Gr12 Gr23

Density:4.51g/cm3

Color:silver

Surface:Bright

Stock size:2000*6000mm

Weight Calculation:T*W*L*4.51/1000000
