90 Degree Titanium Elbow

Introduction of Titanium 90 Degree Elbow:

An ASME B16.9 titanium 90-degree elbow is a specific type of pipe fitting designed and manufactured in accordance with the ASME B16.9 standard, which sets the dimensions, tolerances, materials, and testing requirements for pipe fittings.

Standard Compliance:

ASME B16.9: This standard is established by the American Society of Mechanical Engineers (ASME) and covers factory-made wrought butt-welding fittings of sizes NPS 1/2 through NPS 48 (DN 15 through DN 1200).

Material Specifications:

Titanium Alloys: ASME B16.9 titanium 90-degree elbows are typically constructed from titanium alloys such as Grade 2 (commercially pure titanium) or Grade 5 (Ti-6Al-4V alloy).

Properties: These alloys offer exceptional corrosion resistance, high strength-to-weight ratio, and biocompatibility, making them suitable for a wide range of industrial applications.

Design and Construction:

Elbow Configuration: The 90-degree elbow has a smooth curve that allows it to change the direction of flow by 90 degrees in piping systems.

Dimensions: Conforms to ASME B16.9 standards for dimensions, including outer diameter, wall thickness, center-to-end dimensions, and overall dimensions.

Features of 90 Degree Titanium Elbow:

The advantages of using a 90-degree titanium elbow in piping systems primarily stem from the unique properties of titanium alloys and the specific design of the elbow itself:

Corrosion Resistance: Titanium and its alloys exhibit exceptional resistance to corrosion from various corrosive environments, including seawater, acids, and chlorides. This makes titanium 90-degree elbows highly durable and suitable for long-term use in challenging industrial applications where corrosion is a concern.

High Strength-to-Weight Ratio: Titanium alloys offer a superior strength-to-weight ratio compared to traditional materials like steel. This property allows for the construction of lightweight piping systems without sacrificing structural integrity. It also facilitates easier handling, installation, and maintenance.

Biocompatibility: Titanium is biocompatible and non-toxic, making it suitable for applications in industries such as pharmaceuticals, biotechnology, and medical devices where product purity and safety are critical.

Heat Resistance: Titanium maintains its mechanical properties at elevated temperatures, providing reliability in high-temperature applications such as aerospace, chemical processing, and power generation.

Low Thermal Expansion: Titanium exhibits low thermal expansion characteristics, which helps in maintaining dimensional stability under temperature variations. This property reduces the risk of leaks and ensures consistent performance over a wide range of operating temperatures.

Longevity and Maintenance Savings: Due to its corrosion resistance and durability, titanium 90-degree elbows have a longer service life compared to traditional materials. This longevity translates into reduced downtime and lower maintenance costs over the lifecycle of the piping system.

Environmental Compatibility: Titanium is environmentally friendly due to its long life cycle, recyclability, and non-toxic nature. It contributes to sustainable practices in industries aiming to minimize environmental impact.

Versatility in Applications: Titanium 90-degree elbows find applications across diverse industries including chemical processing, oil and gas, marine, aerospace, and more. Their versatility arises from the ability to withstand harsh conditions while maintaining performance and reliability.

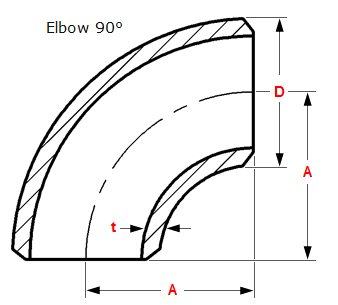

90 Degree Titanium Elbow Data:

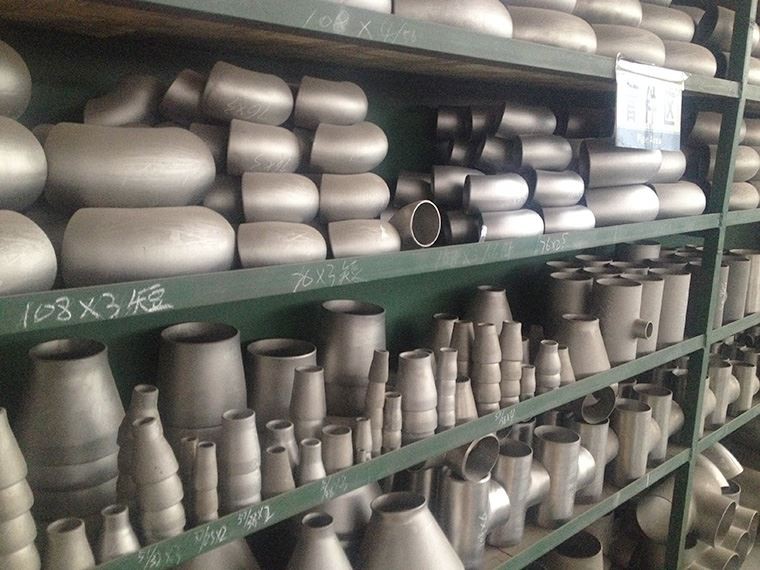

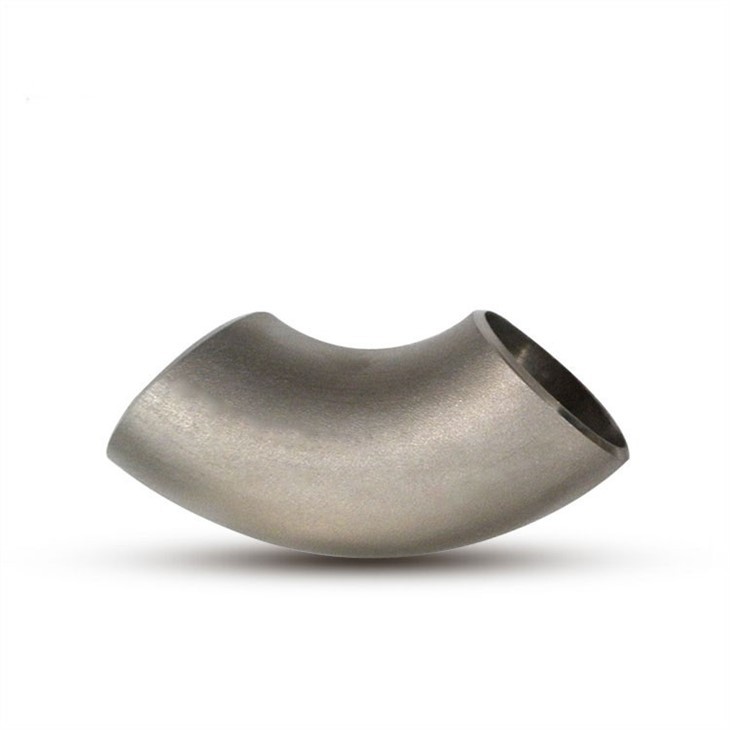

Detailed Images of 90 Degree Titanium Elbow:

Directional Change: A 90-degree elbow allows for a change in the direction of flow in piping systems without the need for additional fittings. This reduces the number of fittings and potential leak points in the system, enhancing reliability.

Space Saving: Compared to using multiple straight fittings to achieve the same directional change, a single 90-degree elbow takes up less space. This is particularly beneficial in tight or confined spaces where optimizing layout is crucial.

Improved Flow Characteristics: Properly designed 90-degree elbows minimize turbulence and pressure drop within the piping system, ensuring smooth flow of fluids or gases. This contributes to efficient operation and reduced energy consumption.

Ease of Installation: Installing a 90-degree elbow is straightforward, especially in welded configurations where it can be butt-welded to pipes. This simplifies installation and reduces labor costs compared to more complex configurations.

Cost Efficiency: Using 90-degree elbows can lower overall material and labor costs by reducing the number of fittings and simplifying the piping layout. This cost efficiency is beneficial in both initial installation and long-term maintenance.

Versatility: 90-degree elbows are available in various materials, sizes, and configurations to suit different piping requirements across industries. This versatility ensures compatibility with diverse applications and environmental conditions.

Durability: High-quality 90-degree elbows, when properly selected for the application, offer durability and reliability. They are designed to withstand operational stresses, pressure variations, and environmental factors over extended periods.

Aesthetic Appeal: In architectural and visible piping applications, such as in building interiors, 90-degree elbows provide a clean and professional appearance by neatly routing piping around corners.

Applications of Titanium 90 Degree Elbows:

Chemical Processing: Titanium elbows are used in chemical processing plants where resistance to corrosive chemicals and high temperatures is critical. They are employed in piping systems for transporting acids, alkalis, and other corrosive fluids.

Marine and Offshore: Due to titanium's excellent corrosion resistance in seawater environments, 90-degree elbows are utilized in marine applications, offshore oil rigs, and desalination plants. They help in handling seawater, brine, and other saline solutions.

Aerospace: Titanium elbows are essential in aerospace applications due to their lightweight properties and strength. They are used in aircraft hydraulic systems, fuel lines, and structural components where weight reduction is crucial without compromising on strength and durability.

Medical Equipment: Titanium's biocompatibility makes it suitable for medical equipment and devices. 90-degree elbows are used in medical gas systems, pharmaceutical manufacturing, and implantable medical devices where cleanliness, durability, and non-reactivity with body fluids are required.

Power Generation: In power plants, particularly nuclear and fossil fuel plants, titanium elbows are used in piping systems for handling corrosive fluids, high-pressure steam, and cooling water. They contribute to the reliability and longevity of these critical systems.

Industrial Applications: Titanium elbows find applications in various industrial sectors such as pulp and paper manufacturing, semiconductor production, and food processing. They are used where resistance to corrosion, cleanliness, and durability are paramount.

Desalination Plants: Titanium elbows play a crucial role in desalination plants where they handle saline solutions and brine. Their corrosion resistance ensures longevity and reliability in the harsh environment of saltwater processing.

Environmental Technologies: Titanium elbows are used in environmental technologies such as wastewater treatment plants and pollution control systems. They help in transporting corrosive fluids and gases without degradation over time.
