ANSI B16.5 Titanium Weld Neck Flange

ANSI B16.5 Titanium Weld Neck Flange

Titanium weld neck flange
1/2"~80"
Class 150 class 300 class 600 class 900 class 1500
Material: GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)
Standard:ANSI B16.5 ASTM B381
Technique:Forged, CNC machined
Unit price:$5.9-$269/pc
Titanium Pipe Flanges
Titanium Nippo Flanges
Titanium welding neck flange
Titanium welded neck flange
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer

Send Inquiry

Chat Now

Product Introduction

ANSI B16.5 Titanium Weld Neck Flange

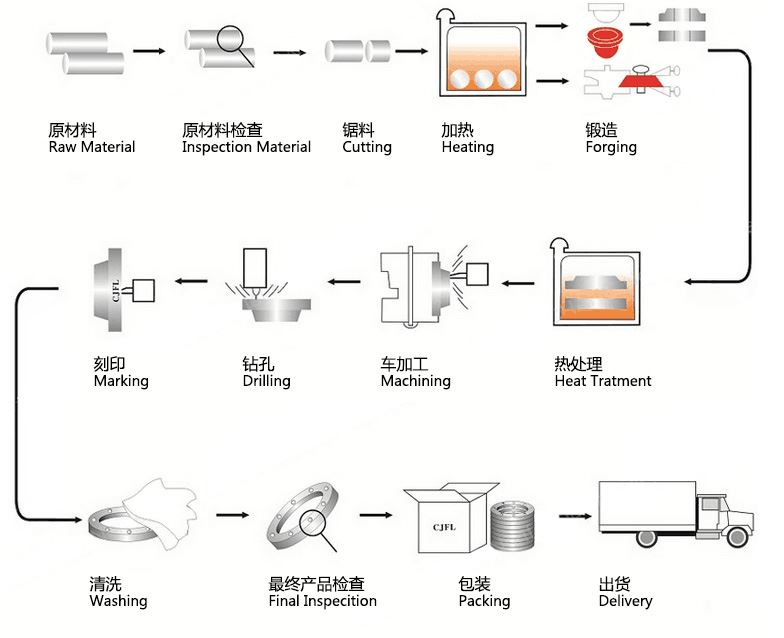

Titanium weld neck flanges mainly have higher rigidity and load-bearing capacity of neck flanges. Its purpose is to transfer the pressure of the pipeline, thereby reducing the Frankie high stress concentration butt welding flange, also known as high neck flange, rigid, suitable for high pressure and temperature occasions. The main production processes are integral forging, forging, pressing, casting, rolling and so on. The main production equipment is lathe, drilling machine, CNC machine tools and so on. Applications: Boiler pressure vessel, petroleum, chemical industry, shipbuilding, pharmacy metallurgy,machinery, stamping elbow food and other industries.

Name	Titanium weld neflanges
Material Grade	TiGR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)
Standard	ANSI/ASME B16.5
Size	1/2''~80''
Pressure	Class 150- Class 2500
Technique	Forged and CNC Machined
Type	Weld neck flange
Flange surface	FF,RF,TG,RJ etc.
Application	Boiler pressure vessels, chemical,petroleum,shipbuilding,pharmacy,metallurgy,machinery
Advantage	1,Long servise lif 2,corrosion-resistant 3,High yeiled strength and tensilestrength
Certificate	EN10204/3.1
