EN1092-1 Titanium Flange

EN1092-1 Titanium Flange

History of EN1092-1

The BS4504 standard is now considered to be obsolete and has been replaced by the En 1092-1 Type 11 Welding Neck Flange. This EN 1092-1 Slip On Flange has also been listed in British Standards as the BS-EN 1092. The En 1092-1 Flange Material, has evolved from the DIN 2501 standard. DIN 2501, is a standard which has become a part of the ISO 7005, following which the Flange EN 1092-1 RF was created as the standard for DIN based flanges.

Product Information of EN1092-1 Titanium Flange

Material: Gr1, Gr2, Gr5, Gr7, Gr12

Standard: EN1092-1

Type: Type 01, Type 02, Type 04, Type 05, Type 11, Type 12, Type 13, Type 21, Type 32, Type 33, Type 34 etc.

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN 6-PN 160

UNI & EN: 6Bar 10Bar 16Bar 25Bar 40Bar

ANSI: Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

DIN: 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

JIS: 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Forged and CNC Machined

Certificates:

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

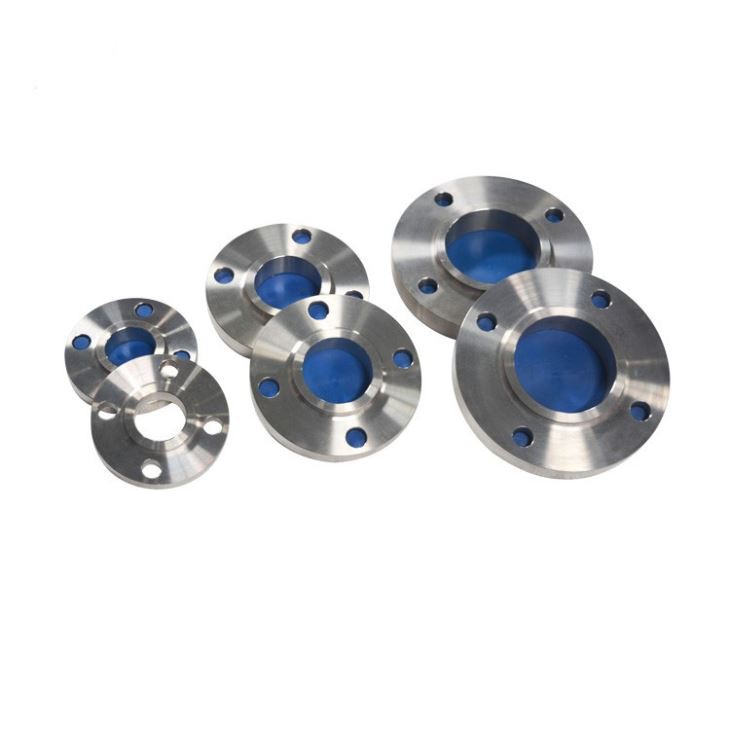

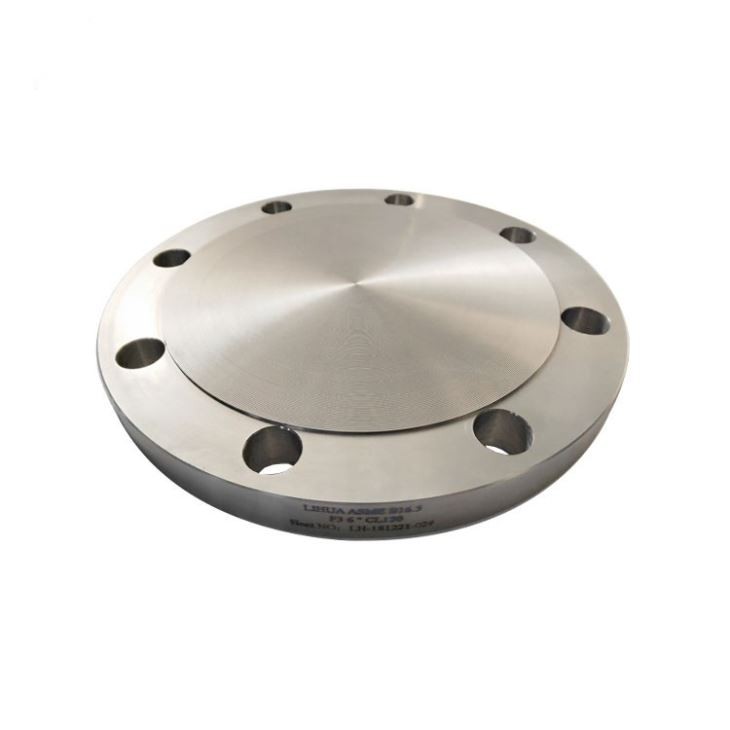

Detailed Images of EN1092-1 Titanium Flange
