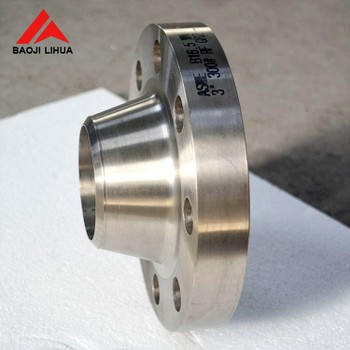

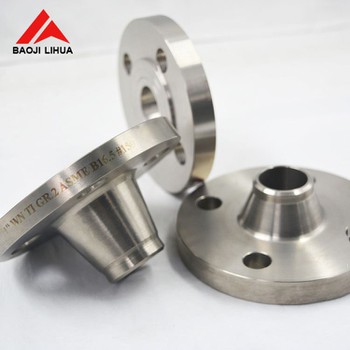

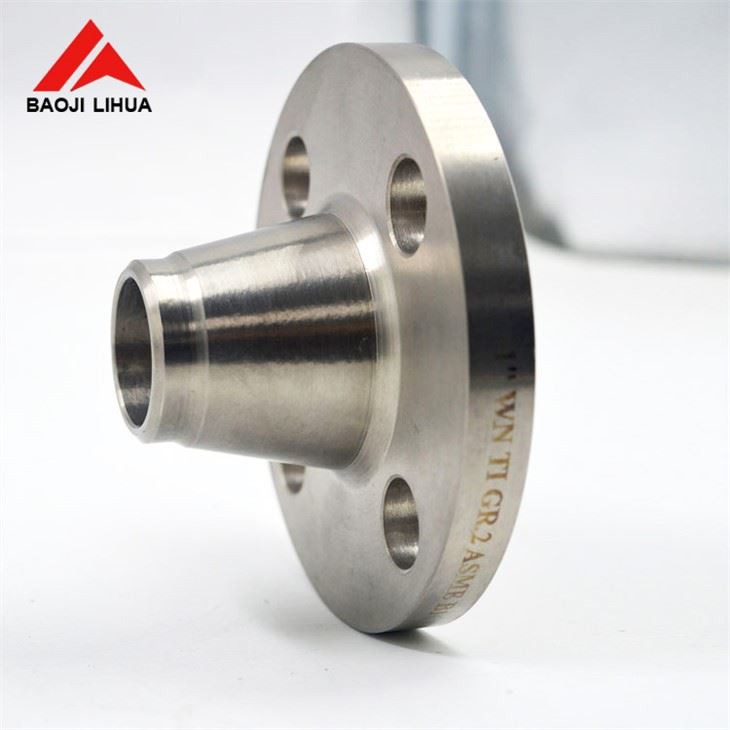

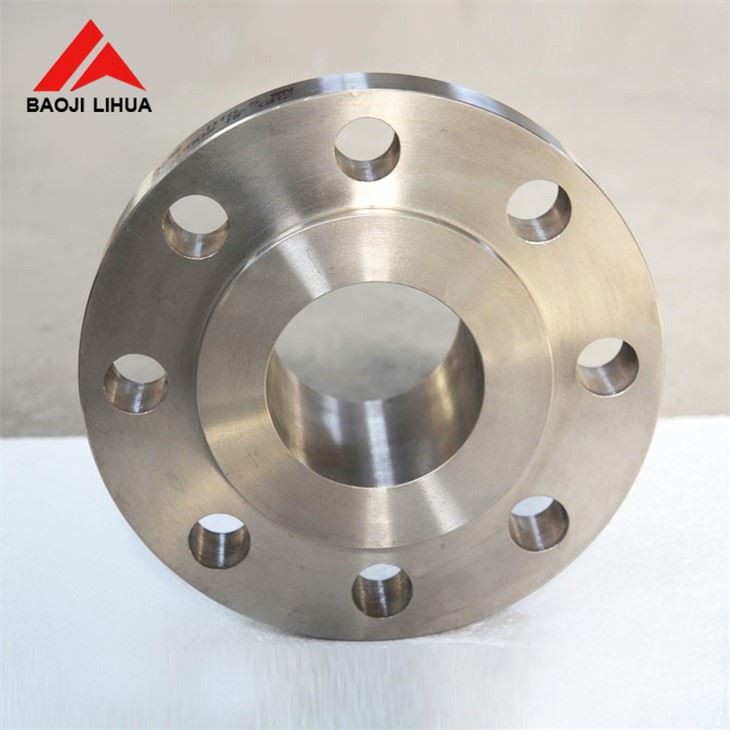

Titanium Weld Neck Flange Class 300
Standard: ANSI / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Application: Chemical industry
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 3
Pressure: Class 300
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
Titanium Weld Neck Flange Class 300
| Name | Titanium flange,Titanium alloy flange |
| Material Grade | Gr1,Gr2,Gr5,Gr7,Gr12 |
| Certificate | EN10204/3.1 |
| Standard | EN1092-1 |
| Size | DN10-3600 |
| Pressure | PN0.6-PN100 |
| Technique | Forged and CNC Machined |
| Type | WNRF,SORF,BLIND,SW,PL |
| Flange surface | FF,RF,TG,RJ etc. |
| Application | Boiler pressure vessels, chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machinery |
| Advantage | 1,Long servise lif 2,corrosion-resistant 3,High yeiled strength and tensilestrength |

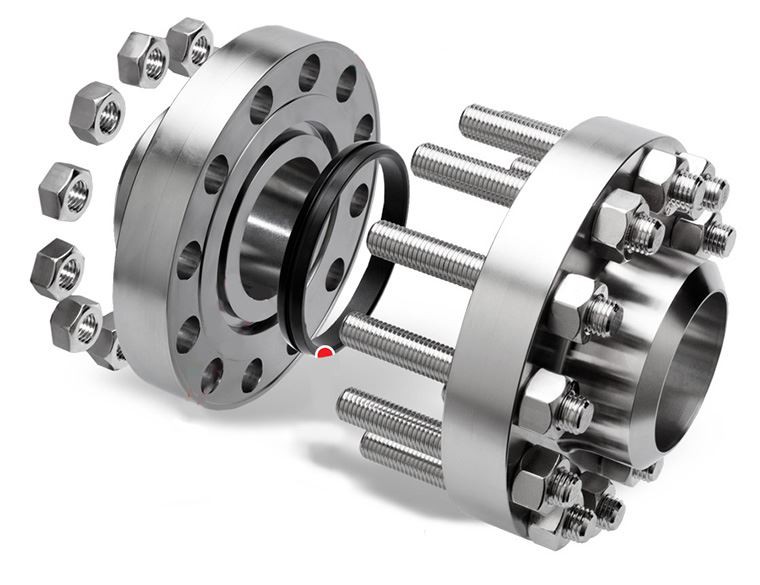

Available Flange types
| a.Slip On Flange |
| b.Welding Neck Flange |
| c.Threaded Flange(Screwed Flange) |
| d.Plain Flange |
| e.Blind Flange |
| f.Lap Joint Flange |
| g.Wocket Welding Flange |
| h. welded flange |
| i. titanium large-diameter flange |
Specification
| Titanium Weld Neck Flange Class 300 | ||||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick. | Hub Dia. At Base | Raised Face Dia. | Hub Dia. At Weld Point | No. of Holes | Dia. Of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-3/4 | 9/16 | 1-1/2 | 1-3/8 | 0.84 | 4 | 2-5/8 | 1/2 | 0.62 | 2-1/16 |
| 3/4 | 4-5/8 | 5/8 | 1-7/8 | 1-11/16 | 1.05 | 4 | 3-1/4 | 5/8 | 0.82 | 2-1/4 |
| 1 | 4-7/8 | 11/16 | 2-1/8 | 2 | 1.32 | 4 | 3-1/2 | 5/8 | 1.05 | 2-7/16 |
| 1-1/4 | 5-1/4 | 3/4 | 2-1/2 | 2-1/2 | 1.66 | 4 | 3-7/8 | 5/8 | 1.38 | 2-9/16 |
| 1-1/2 | 6-1/8 | 13/16 | 2-3/4 | 2-7/8 | 1.90 | 4 | 4-1/2 | 3/4 | 1.61 | 2-11/16 |
| 2 | 6-1/2 | 7/8 | 3-5/16 | 3-5/8 | 2.38 | 8 | 5 | 5/8 | 2.07 | 2-3/4 |
| 2-1/2 | 7-1/2 | 1 | 3-15/16 | 4-1/8 | 2.88 | 8 | 5-7/8 | 3/4 | 2.47 | 3 |
| 3 | 8-1/4 | 1-1/8 | 4-5/8 | 5 | 3.50 | 8 | 6-5/8 | 3/4 | 3.07 | 3-1/8 |
Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

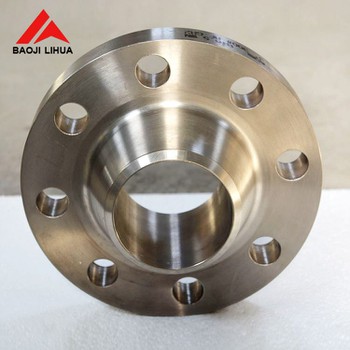

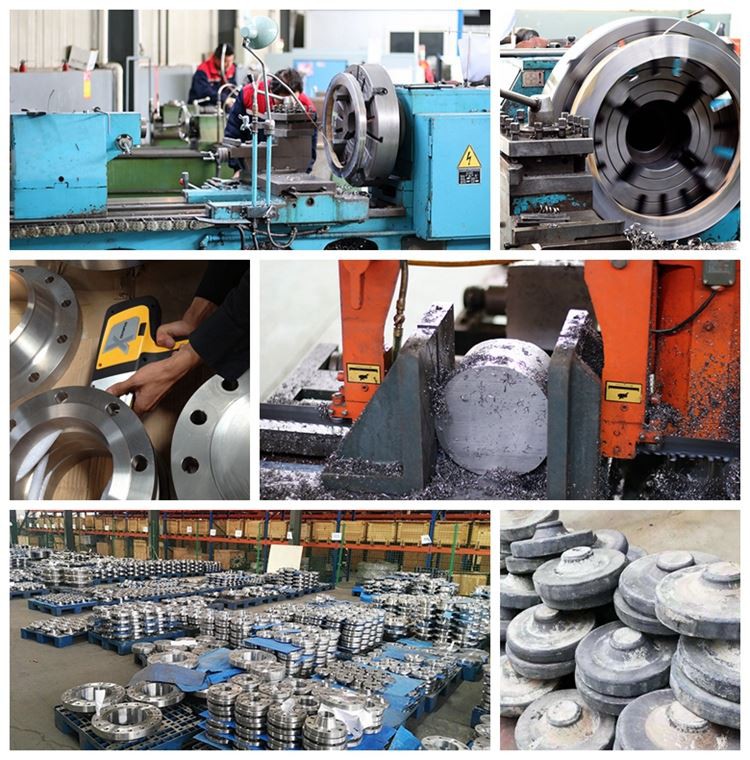

Detailed Images
Application Industries of Titanium Flange
Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

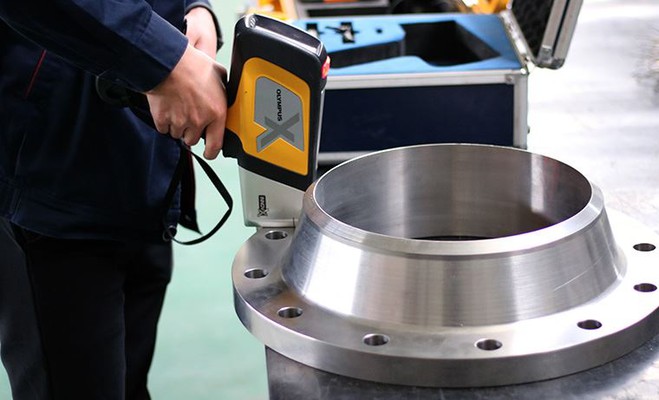

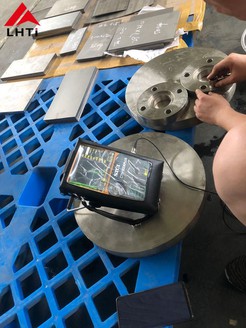

Quality inspections
Packaging and shipping
Each flange is wrapped with pearl cotton to prevent collision and scratch of the flange surface. The gap between the flange and the flange is filled with sponge to ensure that the flange is not deformed when the customer receives the goods. Outside is fumigation-free plywood case. Choose the best express, air or sea based on the weight of the goods. Everything is to better serve customers as the goal.Customer also can arrange shipment theirselves.
