Titanium Slip On Flange Class 150
Product Name: Titanium SO Flange
Standard: ANSI / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Application: Chemical industry
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: 1/2''~80''(DN10~3600)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer
Standard: ANSI / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Application: Chemical industry
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: 1/2''~80''(DN10~3600)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer
Send Inquiry
Chat Now
Product Introduction

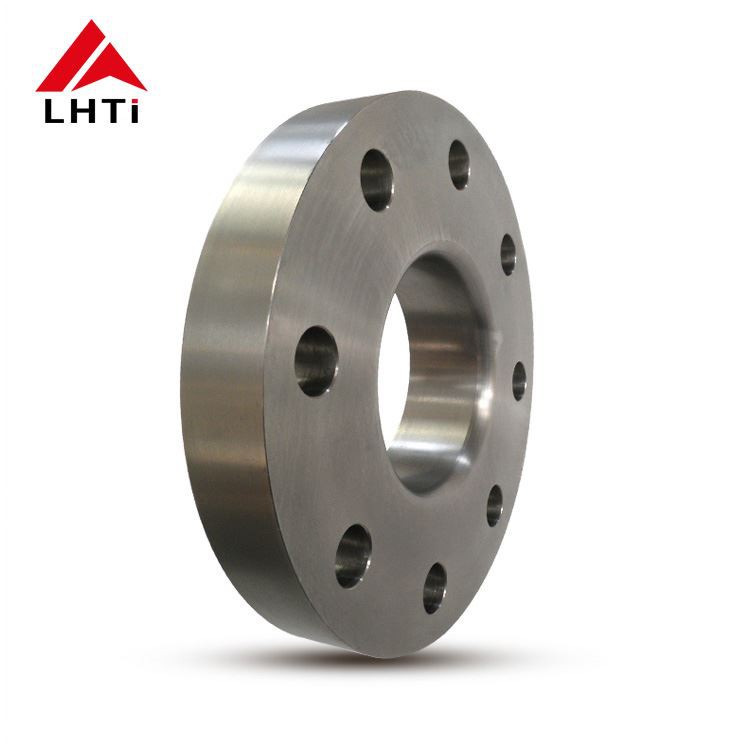

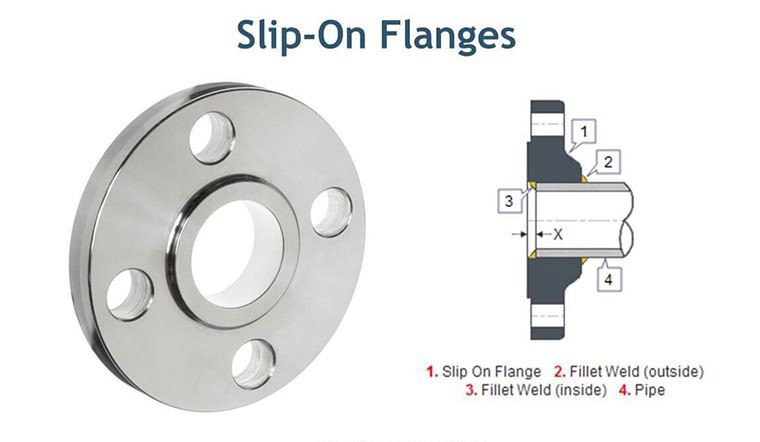

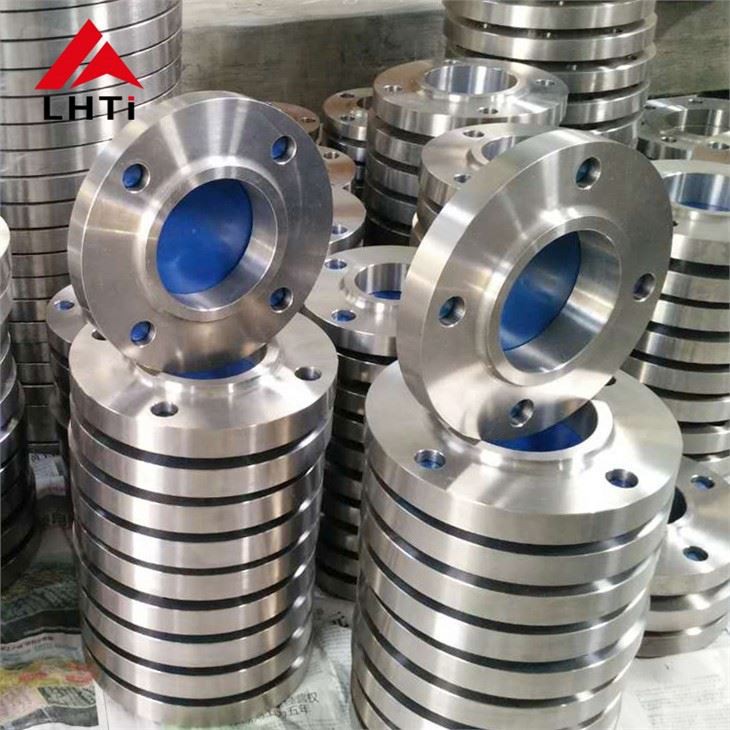

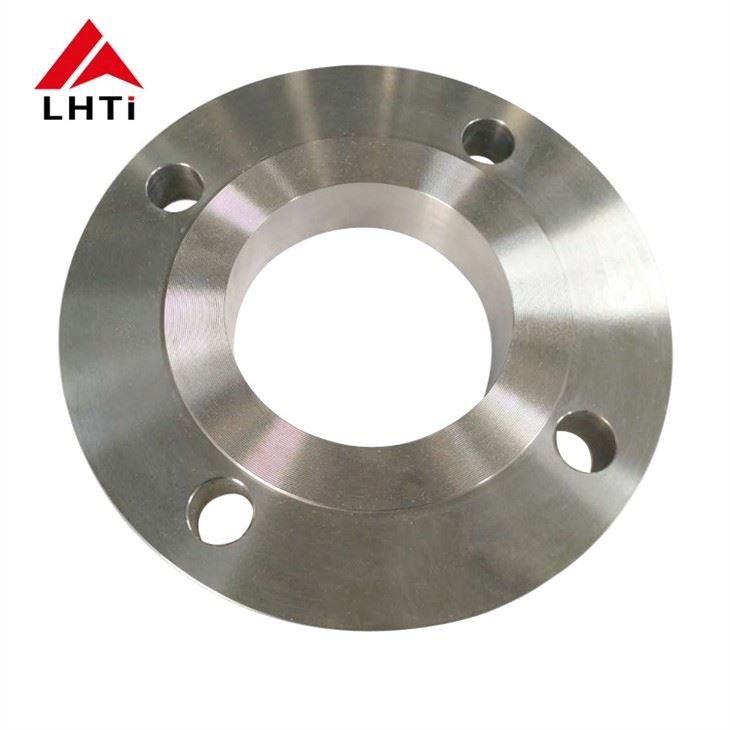

Titanium Slip On Flange Class 150
Product Information
| Product | titanium slip on flange |
| Application | Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery |
| Standard | ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 |
| Material | Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 |
| Size | 1/2''~80''(DN10~3600) |
| Pressure | ANSI: Class 150-2500 DIN:PN6-PN250 |
| Sealing Surface | RF, FF, TG, RJ etc. |
| Technique | Froged and CNC Machined |
Specification
| Titanium Slip On Flange Class 150 | |||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick | Hub Dia. At Base | Raised Face Dia. | No. of Holes | Dia. Of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-1/2 | 7/16 | 1-3/16 | 1-3/8 | 4 | 1/2 | 2-3/8 | 0.88 | 5/8 |
| 3/4 | 3-7/8 | 1/2 | 1-1/2 | 1-11/16 | 4 | 1/2 | 2-3/4 | 1.09 | 5/8 |
| 1 | 4-1/4 | 9/16 | 1-15/16 | 2 | 4 | 1/2 | 3-1/8 | 1.36 | 11/16 |
| 1-1/4 | 4-5/8 | 5/8 | 2-5/16 | 2-1/2 | 4 | 1/2 | 3-1/2 | 1.70 | 13/16 |
| 1-1/2 | 5 | 11/16 | 2-9/16 | 2-7/8 | 4 | 1/2 | 3-7/8 | 1.95 | 7/8 |
| 2 | 6 | 3/4 | 3-1/16 | 3-5/8 | 4 | 5/8 | 4-3/4 | 2.44 | 1 |
| 2-1/2 | 7 | 7/8 | 3-9/16 | 4-1/8 | 4 | 5/8 | 5-1/2 | 2.94 | 1-1/8 |
| 3 | 7-1/2 | 15/16 | 4-1/4 | 5 | 4 | 5/8 | 6 | 3.57 | 1-3/16 |
| 3-1/2 | 8-1/2 | 15/16 | 4-13/16 | 5-1/2 | 8 | 5/8 | 7 | 4.07 | 1-1/4 |
| 4 | 9 | 15/16 | 5-5/16 | 6-3/16 | 8 | 5/8 | 7-1/2 | 4.57 | 1-5/16 |
| 5 | 10 | 15/16 | 6-7/16 | 7-5/16 | 8 | 3/4 | 8-1/2 | 5.66 | 1-7/16 |
| 6 | 11 | 1 | 7-9/16 | 8-1/2 | 8 | 3/4 | 9-1/2 | 6.72 | 1-9/16 |
| 8 | 13-1/2 | 1-1/8 | 9-11/16 | 10-5/8 | 8 | 3/4 | 11-3/4 | 8.72 | 1-3/4 |
| 10 | 16 | 1-3/16 | 12 | 12-3/4 | 12 | 7/8 | 14-1/4 | 10.88 | 1-15/16 |
| 12 | 19 | 1-1/4 | 14-3/8 | 15 | 12 | 7/8 | 17 | 12.88 | 2-3/16 |
| 14 | 21 | 1-3/8 | 15-3/4 | 16-1/4 | 12 | 1 | 18-3/4 | 14.14 | 2-1/4 |
| 16 | 23-1/2 | 1-7/16 | 18 | 18-1/2 | 16 | 1 | 21-1/4 | 16.16 | 2-1/2 |
| 18 | 25 | 1-9/16 | 19-7/8 | 21 | 16 | 1-1/8 | 22-3/4 | 18.18 | 2-11/16 |
| 20 | 27-1/2 | 1-11/16 | 22 | 23 | 20 | 1-1/8 | 25 | 20.20 | 2-7/8 |
| 24 | 32 | 1-7/8 | 26-1/8 | 27-1/4 | 20 | 1-1/4 | 29-1/2 | 24.25 | 3-1/4 |
Advantages
Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.
Long service life
Corrosion-resistant
High yeiled strength and tensile strength
Excellent strength to weight ratio
High temperature resistance
Low temperature resistance
Good thermal conductivity
Great malleability and weldability

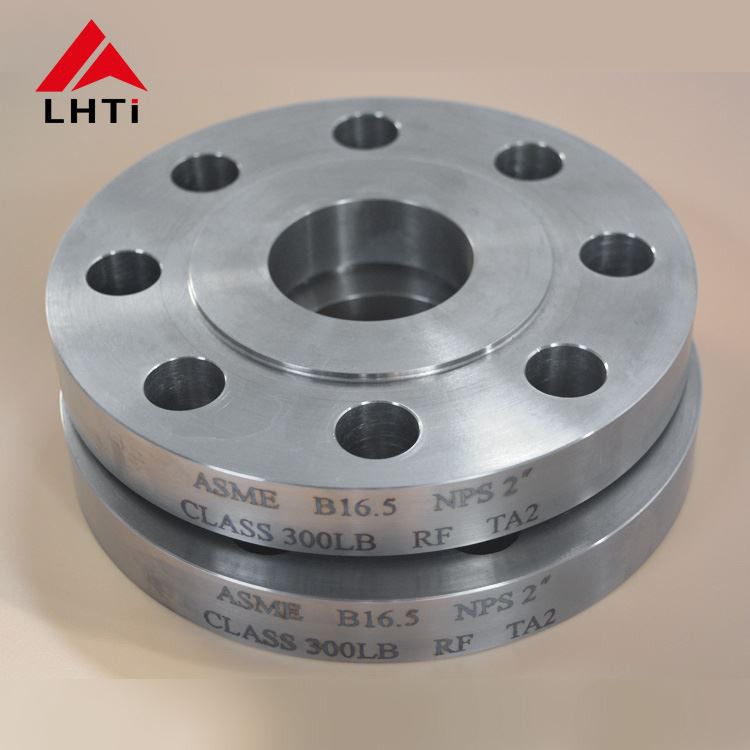

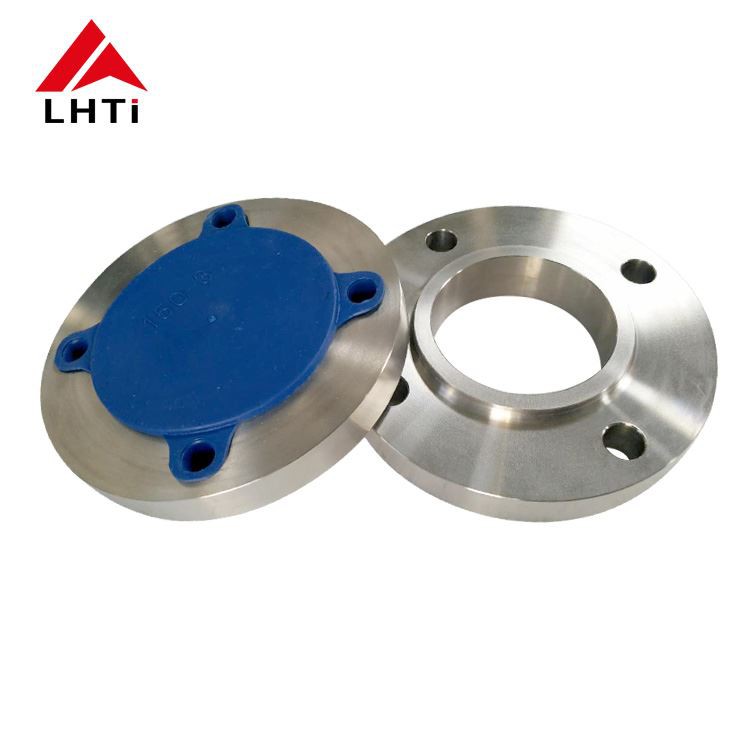

Detailed Images

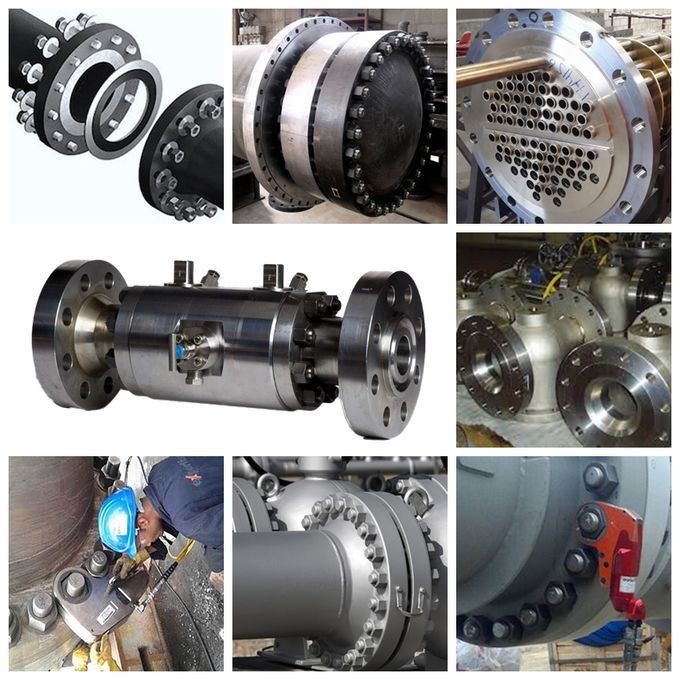

Applications

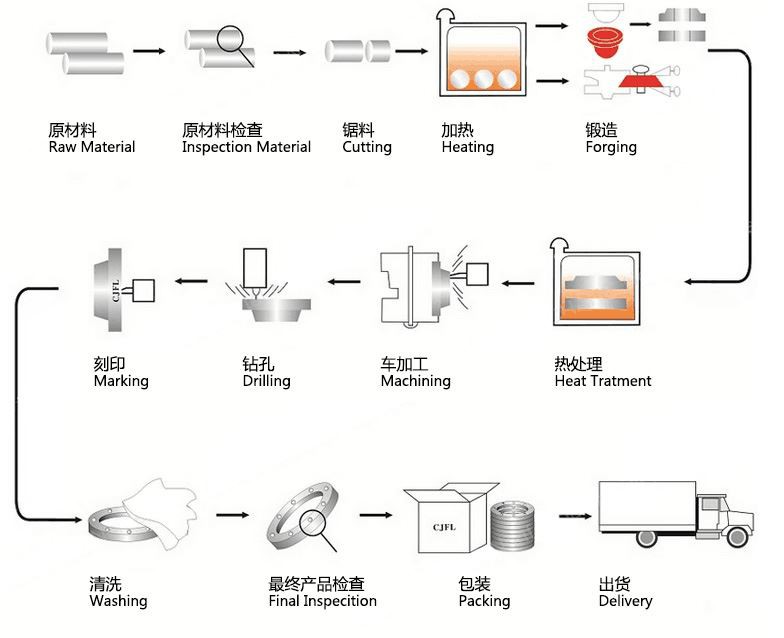

Production Process
Related Products
Titanium Pipe
Titanium Elbow
Titanium Tee
Titanium Reducer
Titanium Stub End
Titanium Sockolet

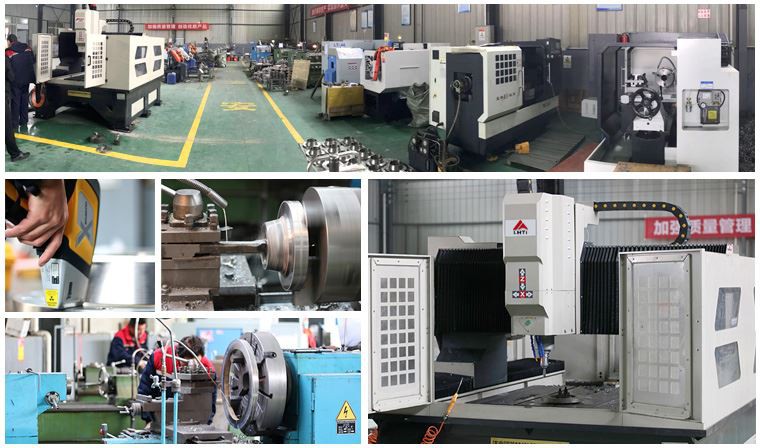

Our Factory

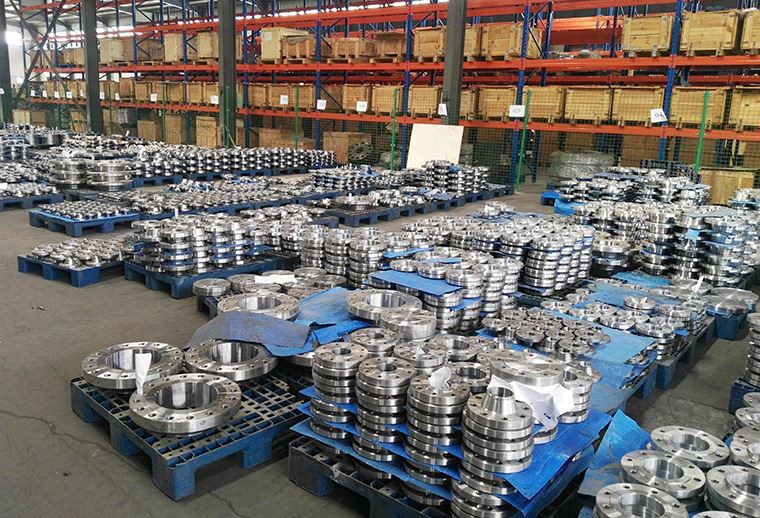

Stock
Quality Inspection
Packaging
