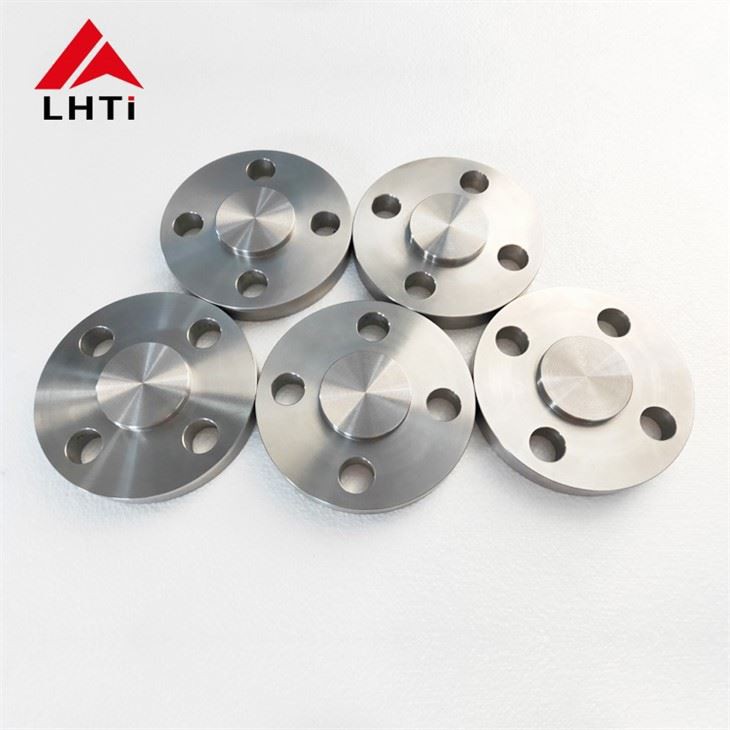

ASME B16.5 Titanium Blind Flange

ASME B16.5 Titanium Blind Flange

Product Name: Titanium Blind Flange
Standard: ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500#
Surface: Polished

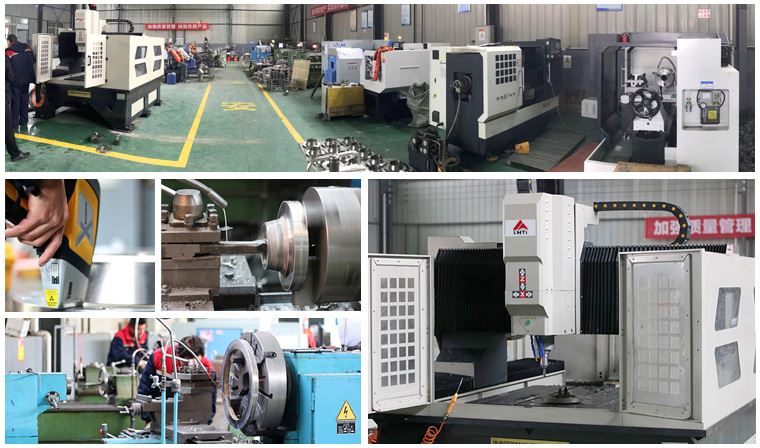

Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer

Send Inquiry

Chat Now

Product Introduction

ASME B16.5 Titanium Blind Flange

Product Information

Product	Titanium blind flange

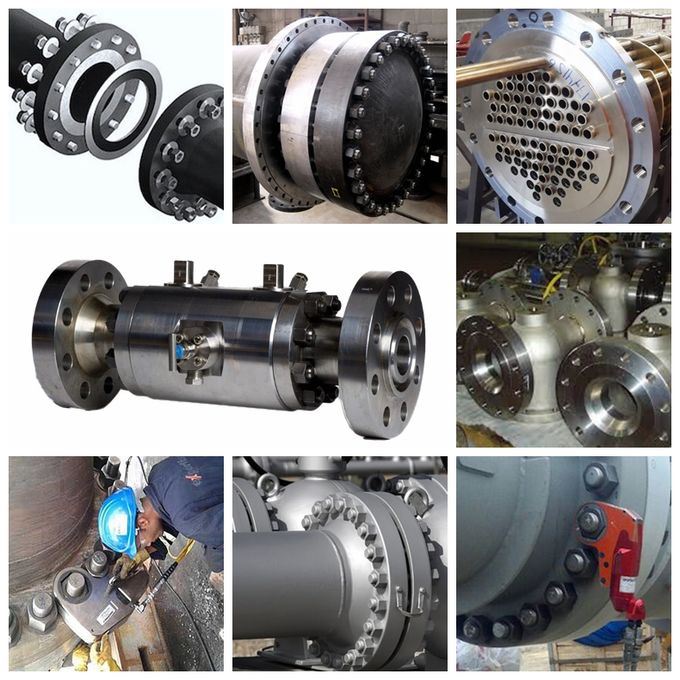

Application	Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Standard	ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Material	Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure	PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB
Sealing Surface	RF, FF, TG, RJ etc.
Technique	Froged and CNC Machined

Advantages of ASME B16.5 Titanium Blind Flange:

Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.
Long service life
Corrosion-resistant
High yeiled strength and tensile strength
Excellent strength to weight ratio
Temperature resistance
Good thermal conductivity
Great malleability and weldability

Avaliable flange type:

Titanium Lap Joint Flanges

Titanium threaded Flanges

Titanium Socket Weld Flanges

Titanium Slip On Flanges

Titanium Blind Flanges

Titanium Weld neck Flanges

Detailed Images

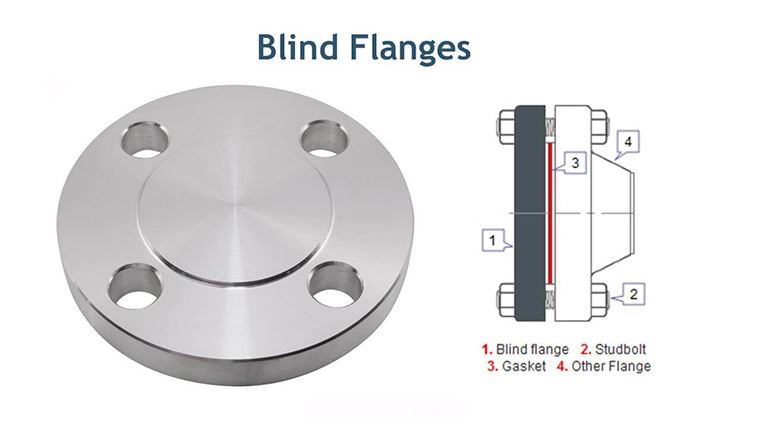

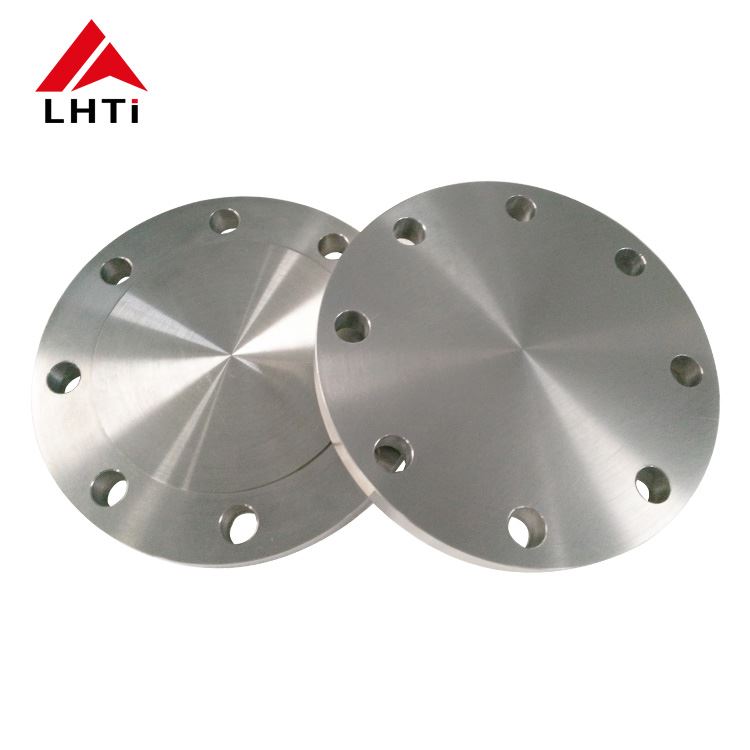

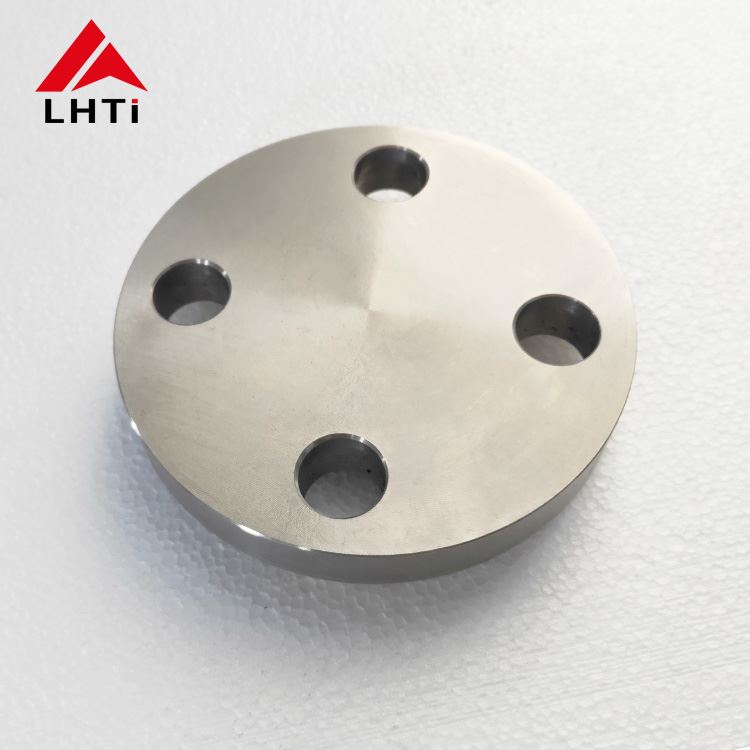

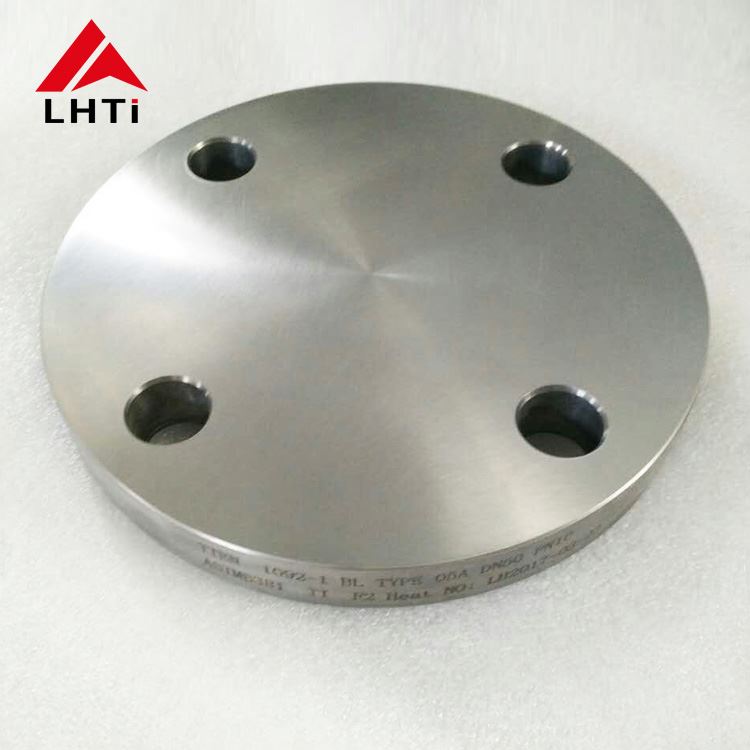

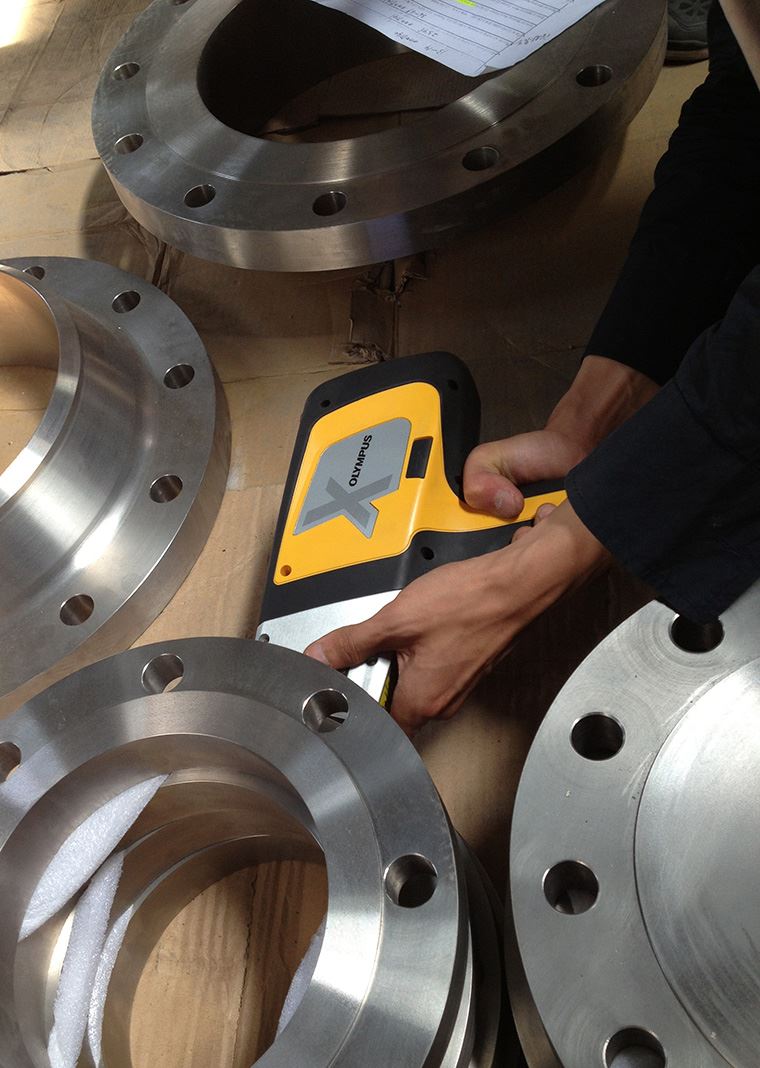

Titanium Blind Flange Type 05
