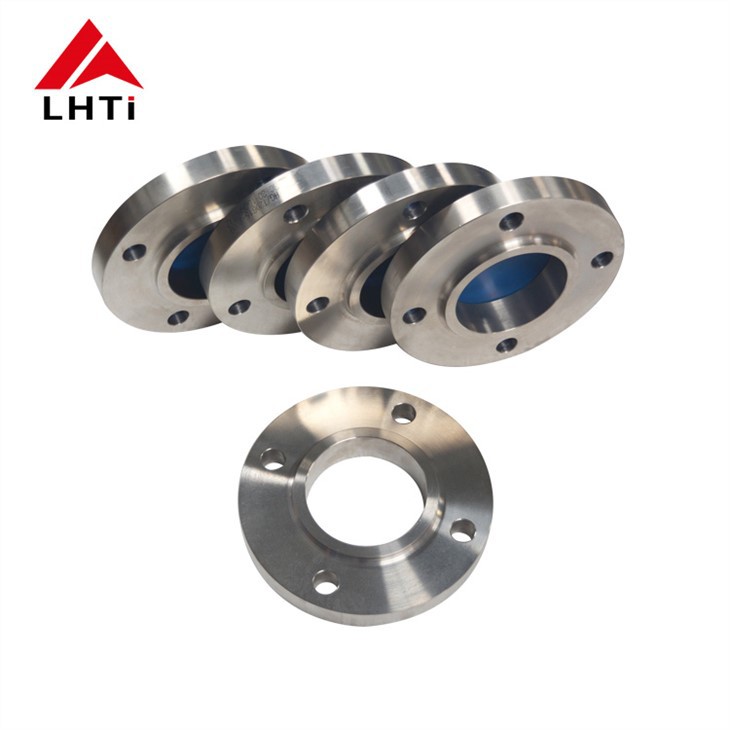

Titanium Flanges And Fittings

Titanium flange is a part made of non-ferrous metal titanium or titanium alloy that connects the pipe and the pipe to each other, and is connected to the pipe end.

There are holes on titanium flange and bolts connect the two flanges tightly. Flanges are sealed with gaskets. Flanged pipe fittings refer to pipe fittings with flanges .

Product name:Titanium flanges and fittings,titanium flange,titanium blind flange,titanium wn flange,titanium slip on flange, titanium flange price, titanium forging flange,titanium flange manufacturer

Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc.

Material:Gr1 Gr2 Gr5 Gr7 Gr12 Titanium

Pressure Level:

CLASS series: CL150, CL300, CL600, CL900, CL1500, CL2500

PN series: PN2.5 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160 PN250 PN320 PN400

Production process: forging, CNC machined

Advantages of titanium flange: good anti-corrosion performance, light weight and high strength.

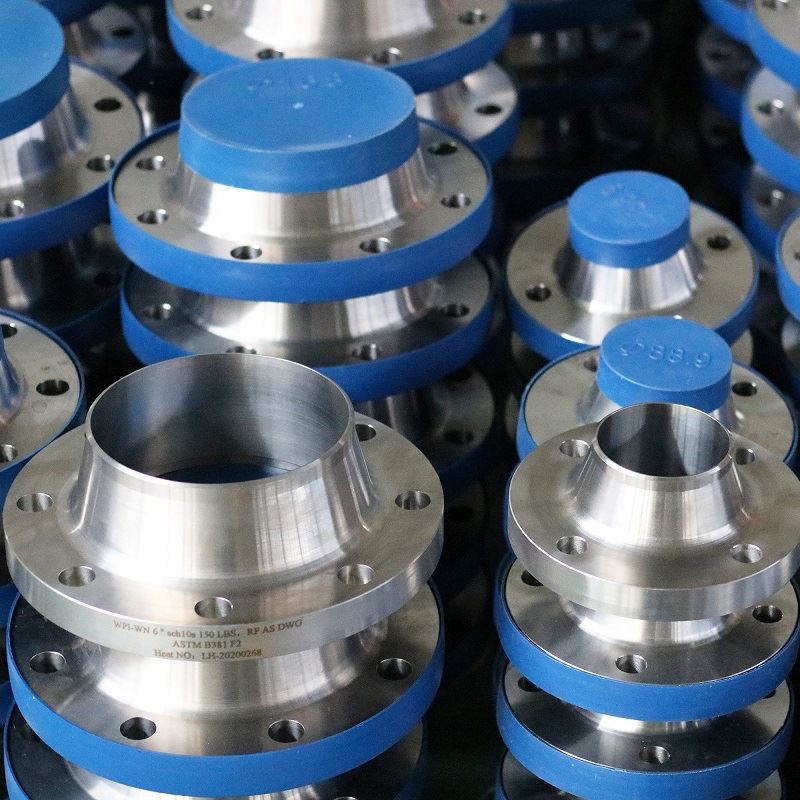

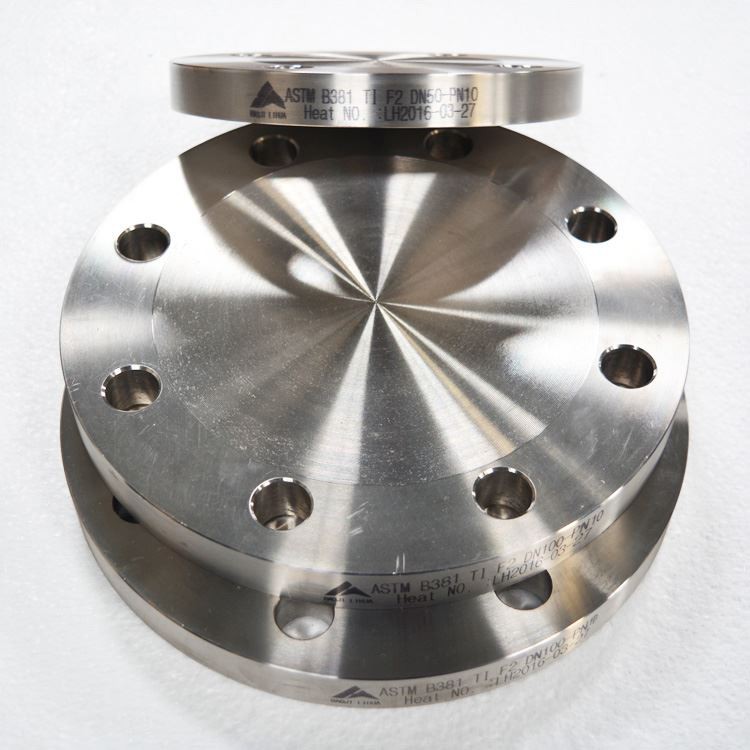

Classified by structure type: there are integral titanium flanges, blind titanium flanges, weld neck titanium flange, slip on titanium flanges and threaded titanium flanges etc.

Physical Properties(Min):

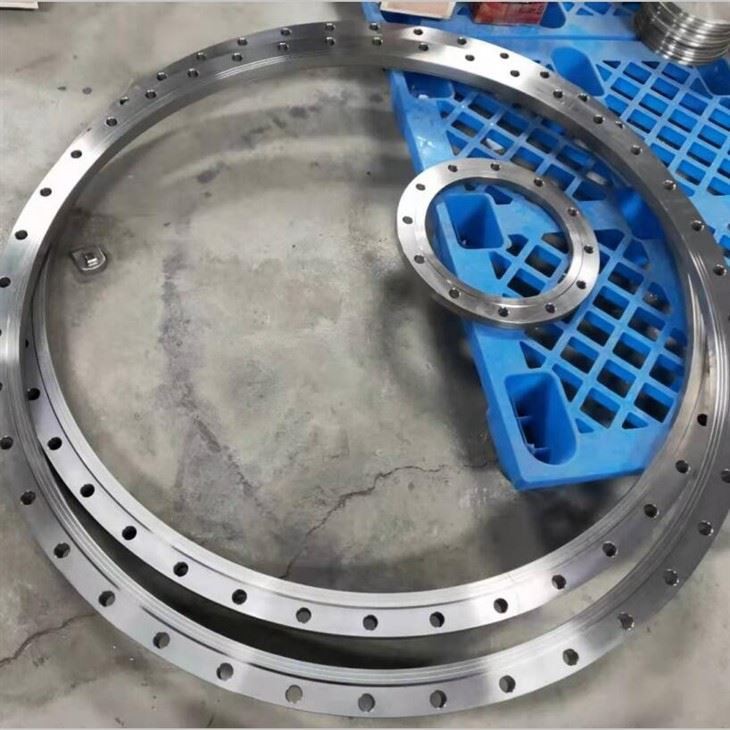

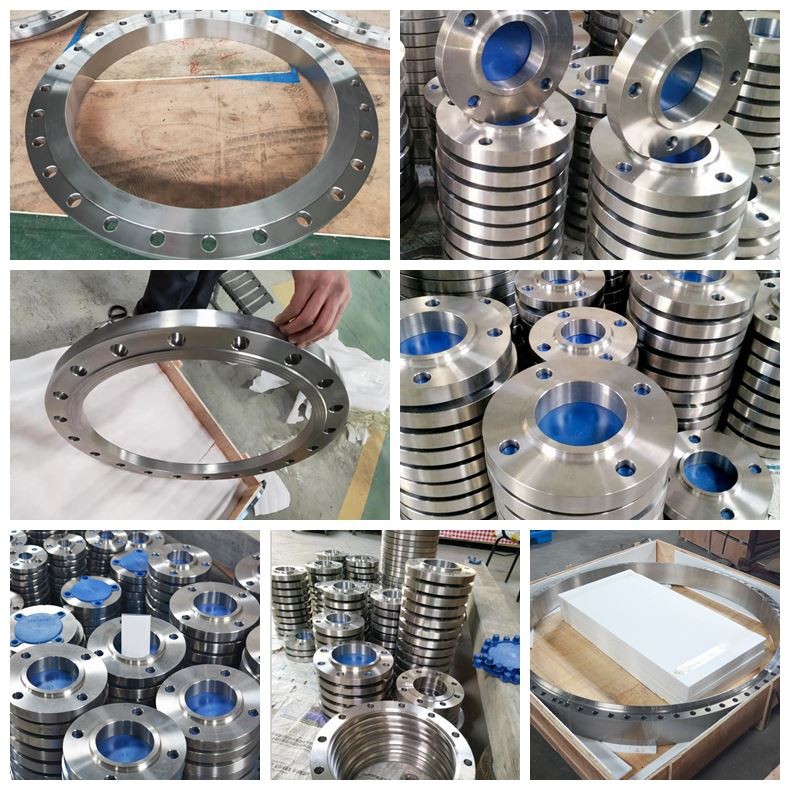

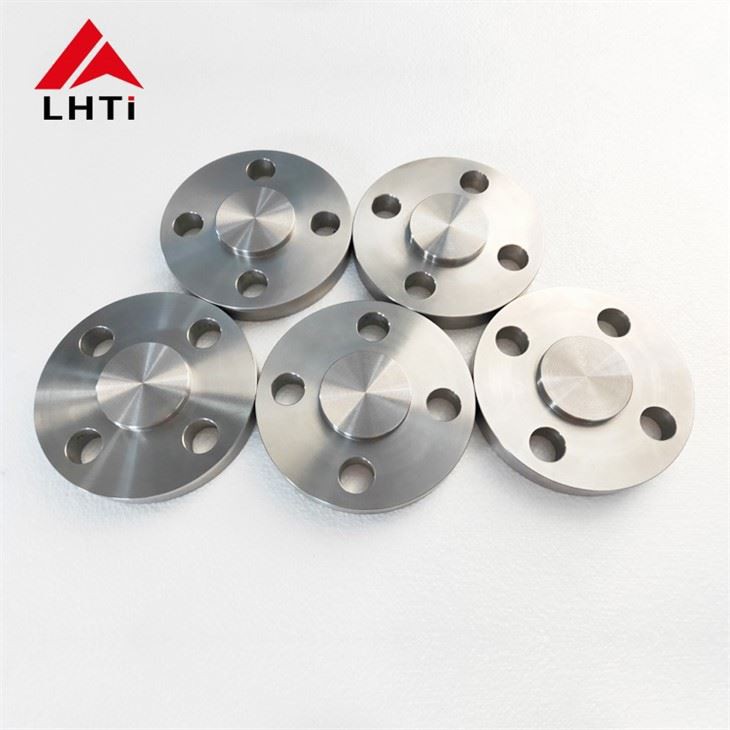

Detailed images:

Titanium flange can be made by casting, threaded connection or welding. The flange connection consists of a pair of flanges, a gasket and several bolts and nuts. The gasket is placed between the sealing surfaces of the two flanges. After tightening the nut, the specific pressure on the gasket surface reaches a certain value and deforms and fills up the unevenness of the sealing surface to make the connection tight and leak-proof.

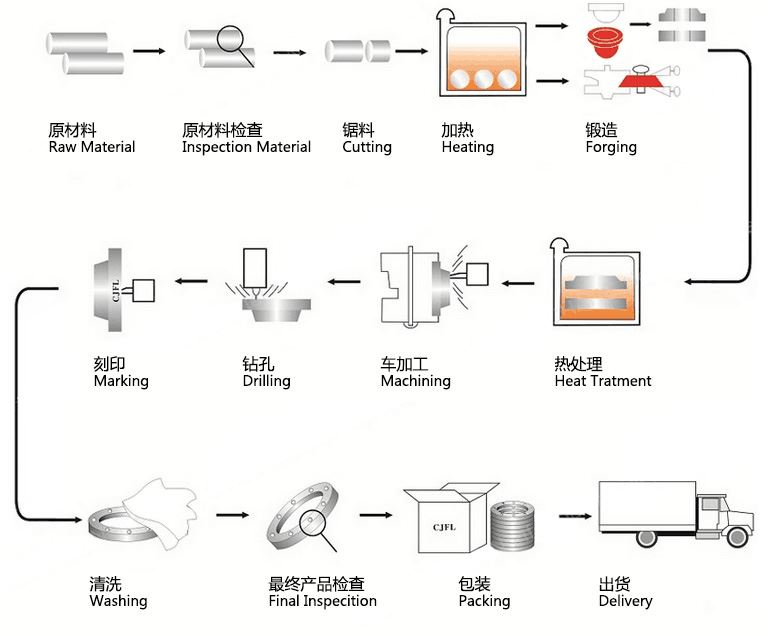

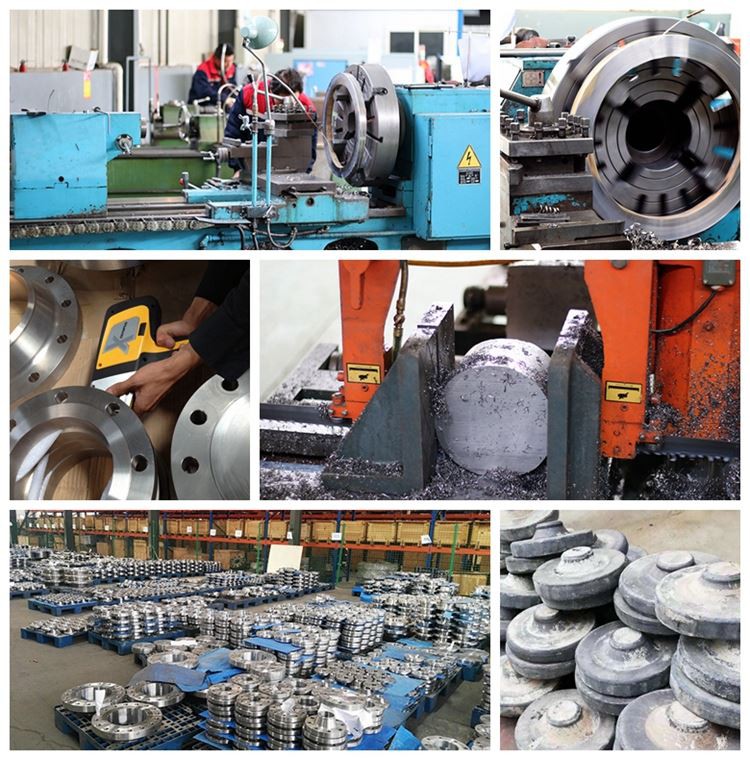

Production Process:

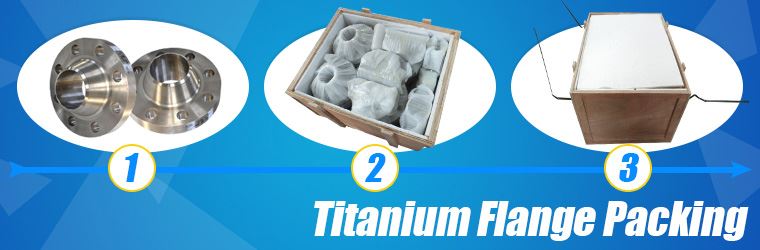

Packaging:
