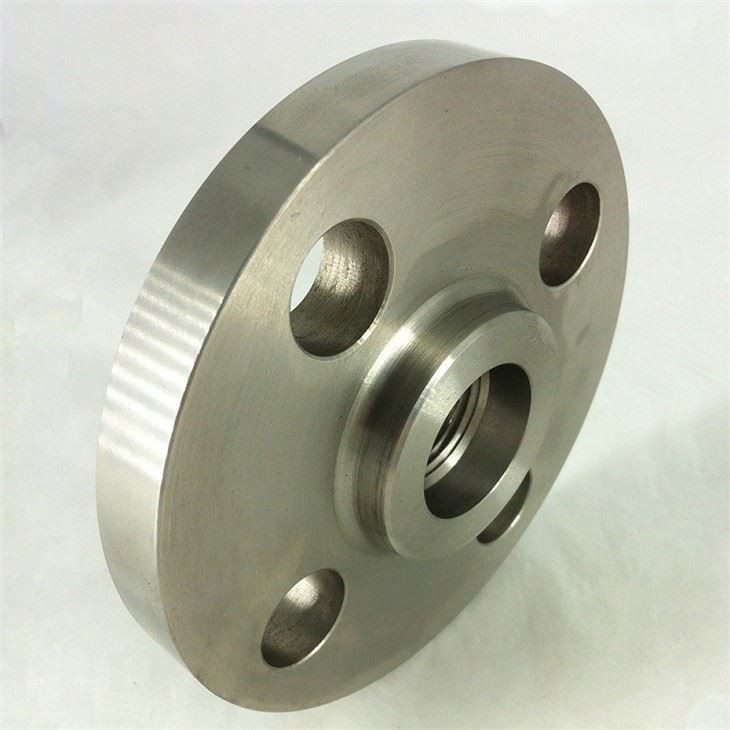

Titanium Threaded Flange
Standard: ASTM B16.5 / ANSI B1.65 / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
| Titanium Threaded FlangeItem name | Titanium threaded flange |
| Standard | ASME/ANSI B16.5,DIN2630~2633,BS,JIS etc |
| Material | Titanium Gr1,Gr2,Gr5,Gr7,Gr9,Gr12 |
| Size | 1/2''~80''(DN10~600) |
| Pressure rating | 0.6~32Mp |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| (ASNI) CL150,CL300,CL600,CL900,CL1500 | |
| Working temperature | -60°C~250°C |
| Flange surface | FF,RF,TG,RJ etc |
| Quality control | Ultrasonic Testing & Material Test Report |
| Packaging | Plywood case line with foam or as per clients request |
Applications of Threaded flange:
1, Threaded flange can be used for where welding would be hazardous
2, Threaded flange was designed for low-pressure and non-cyclic applications
3, Threaded flange , bore is threaded to match pipe thread
4, Threaded flange is tapered to seal pipe and flanges
Chemical requirements
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile requirements
| grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Advantages of Titanium Flanged Threaded Fittings
1. High Strength: Titanium flanged threaded fittings have a high strength-to-weight ratio, making them ideal for use in high-stress applications.
2. Corrosion Resistance: Titanium fittings are highly resistant to corrosion in many environments, including seawater and acidic solutions.
3. Biocompatible: Titanium is a biocompatible material that is non-toxic and non-reactive in the body, making it suitable for medical implants and other biological applications.
4. Low Thermal Expansion: Titanium fittings have a low coefficient of thermal expansion, which makes them less likely to expand and contract with temperature changes, reducing the risk of leaks or other damage.
5. High Temperature Resistance: Titanium fittings can withstand high temperatures without losing their strength or integrity, making them suitable for use in extreme environments.
6. Longevity: Titanium is a durable material that can withstand wear and tear over time, leading to a longer service life compared to other materials.
7. Lightweight: Titanium fittings are lightweight and easy to install, reducing the overall weight and complexity of a system.
8. Versatility: Titanium fittings can be machined into a variety of shapes and sizes, making them suitable for a wide range of applications.

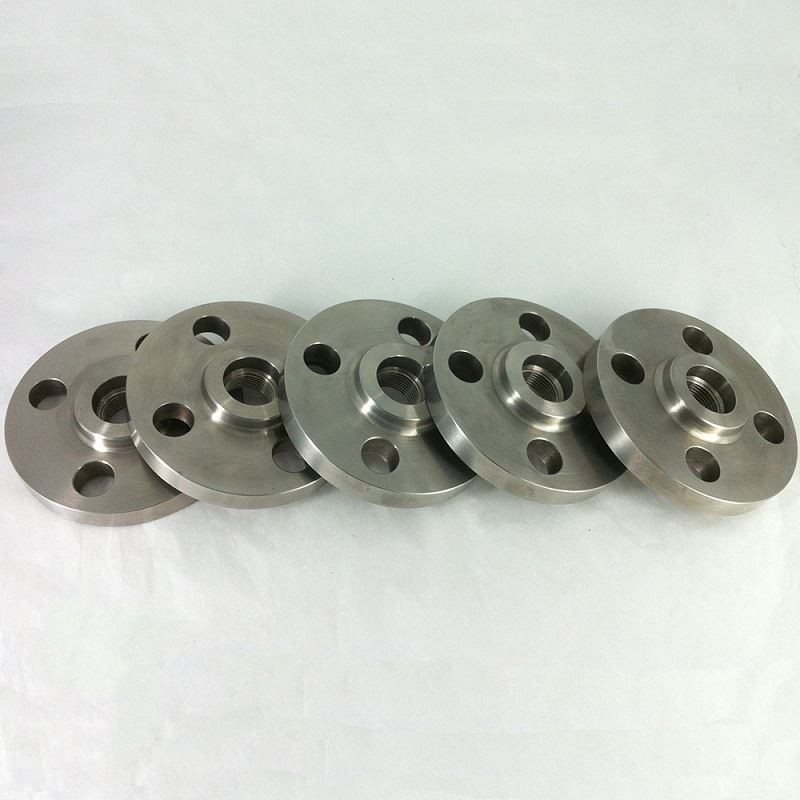

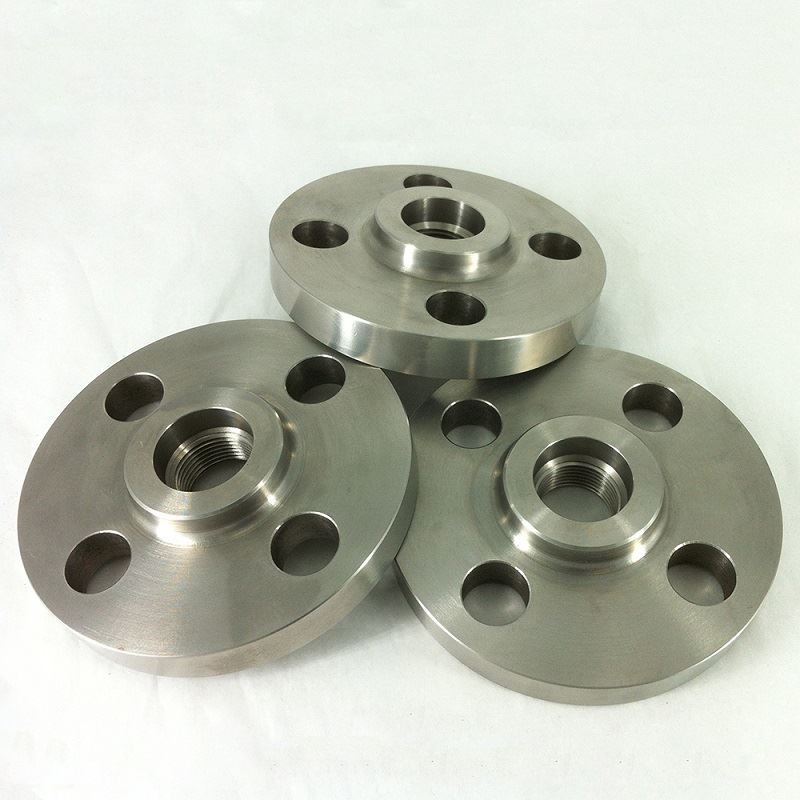

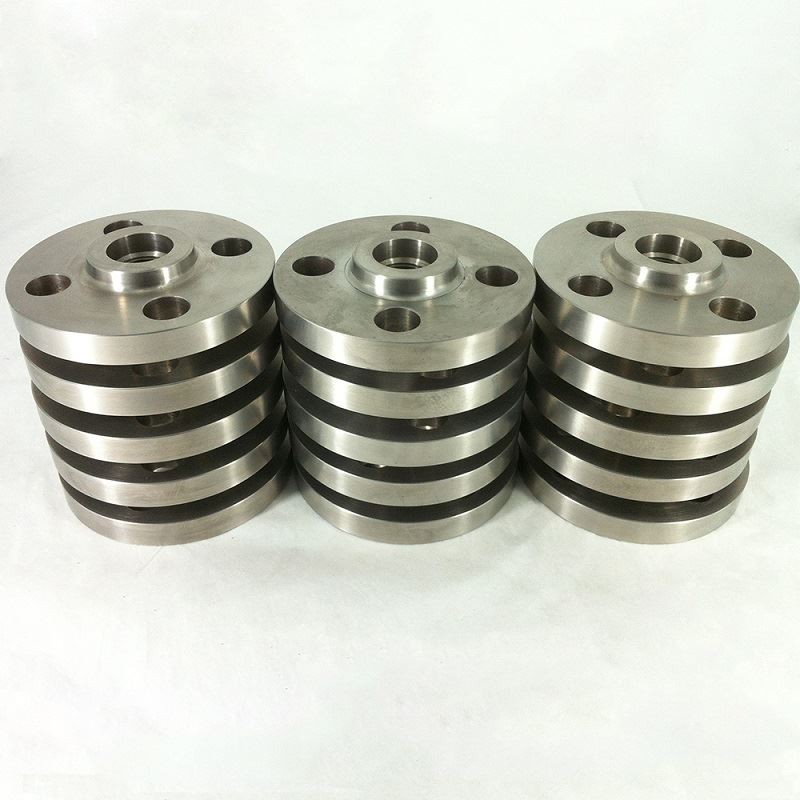

Detailed images:
Applications

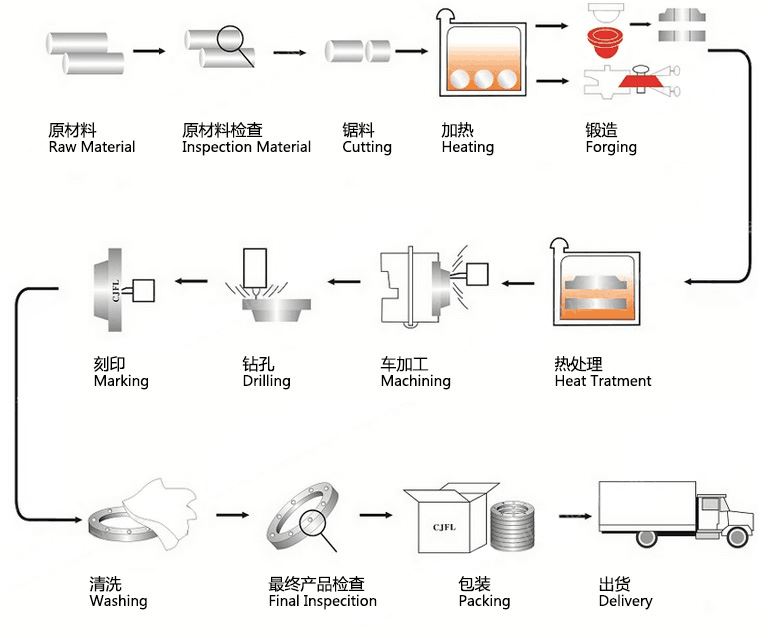

Production Process
Our Factory

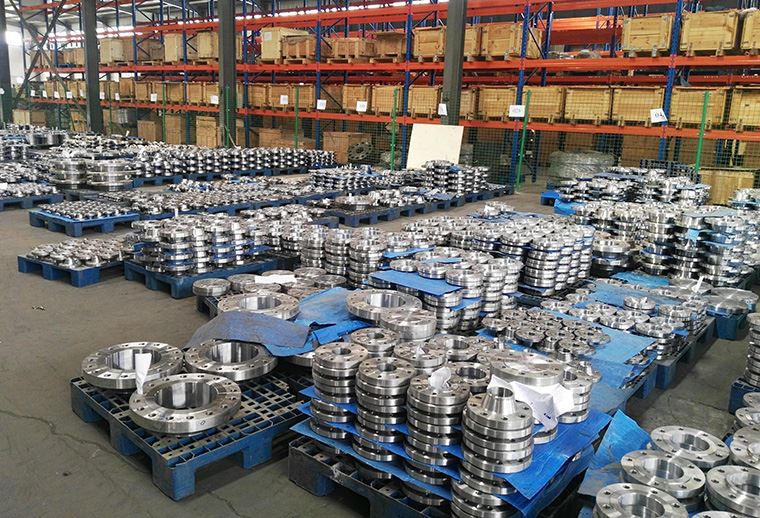

Stock
Types of Titanium Flange
Titanium Weld Neck Flange
Titanium Slip On Flange
Titanium Blind Flange
Titanium Threaded Flange
Titanium Socket Weld Flange
Titanium Lap Joint Flange
Titanium Loose Flange
Titanium Plate Flange
Titanium Ring Type Joint Flange
Quality Inspection

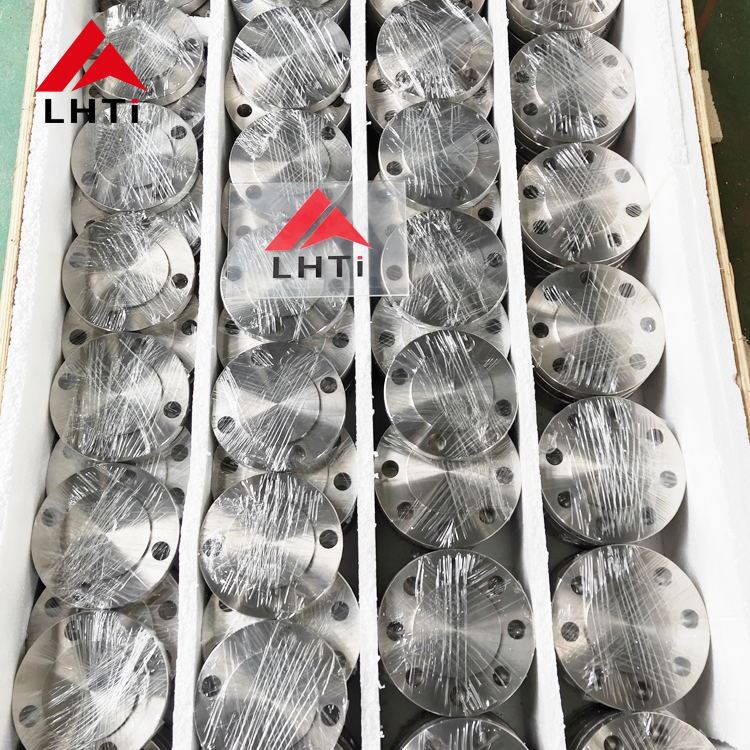

Packaging
Our Company
As a leading manufacturer & trader of titanium products, Baoji Lihua mainly focus on titanium rod, titanium wire, titanium tube and titanium flange etc., with a history of 16 years. The quality of our products is widely recognized.
