Gr2 Titanium Weld Neck Flange

Gr2 Titanium Weld Neck Flange

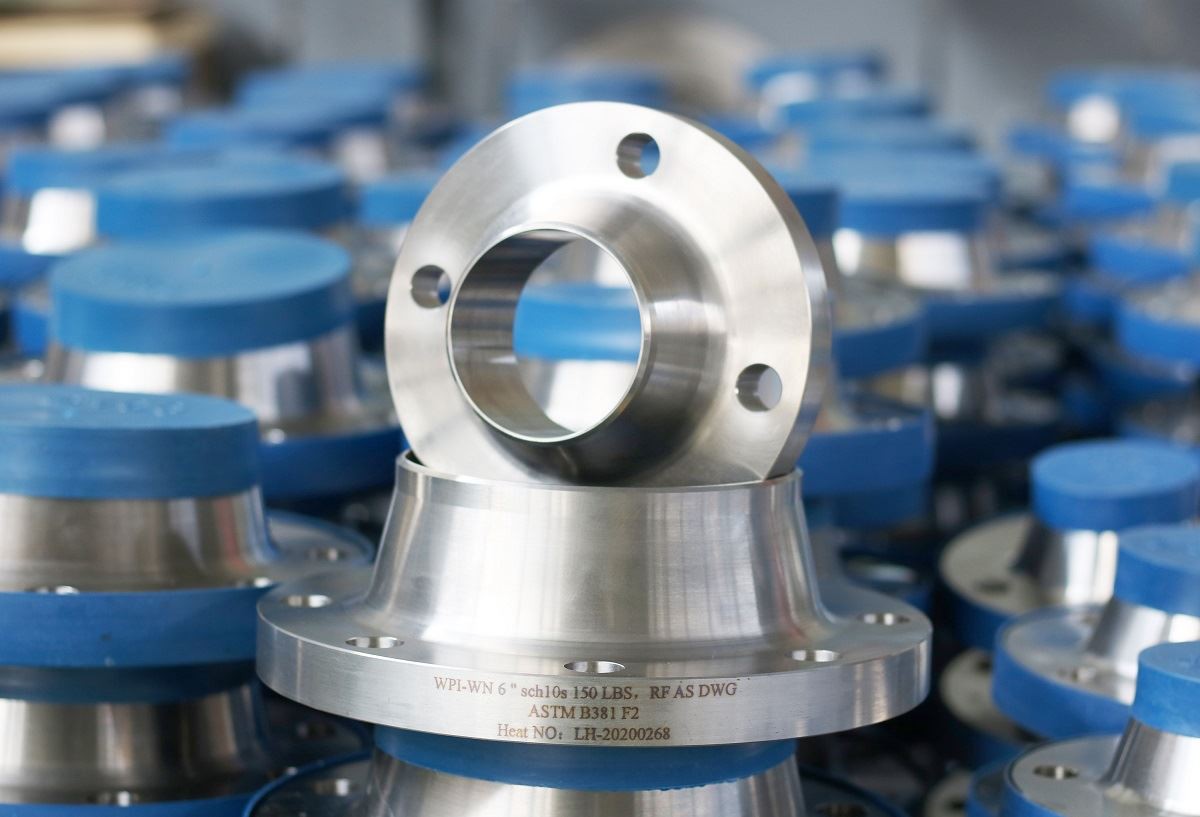

Product Name: Gr2 Titanium weld neck flange
Standard: ANSI / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500#
Surface: Polished

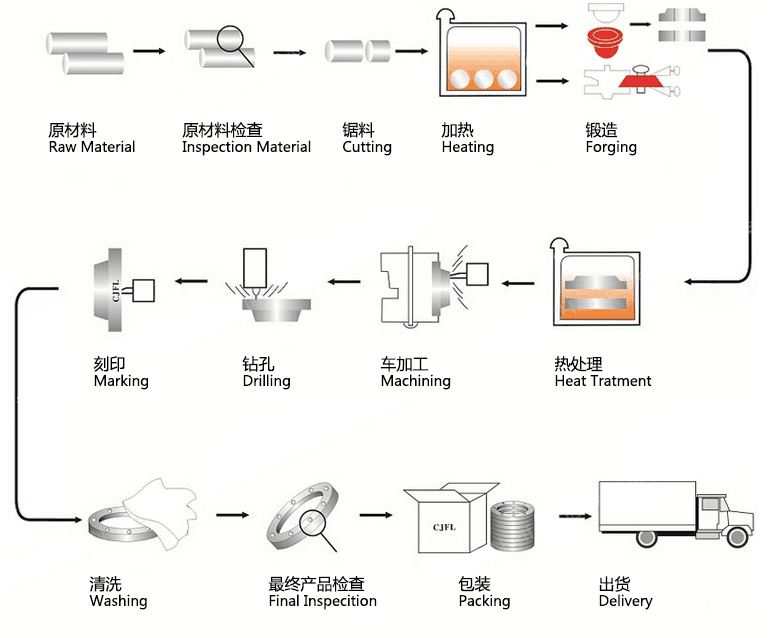

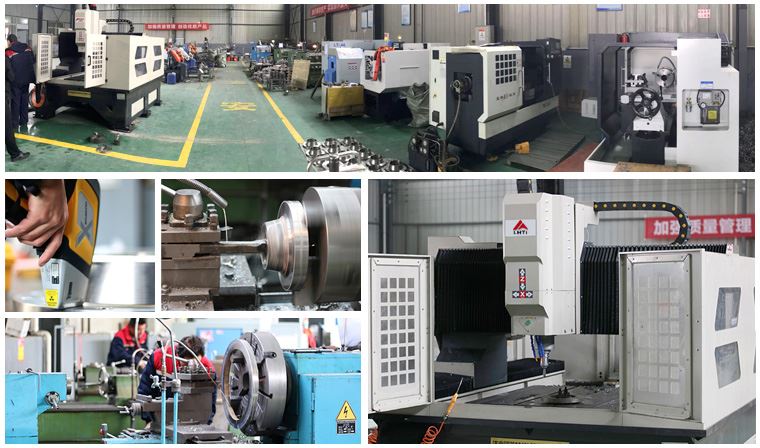

Technique: Forged and CNC Machined

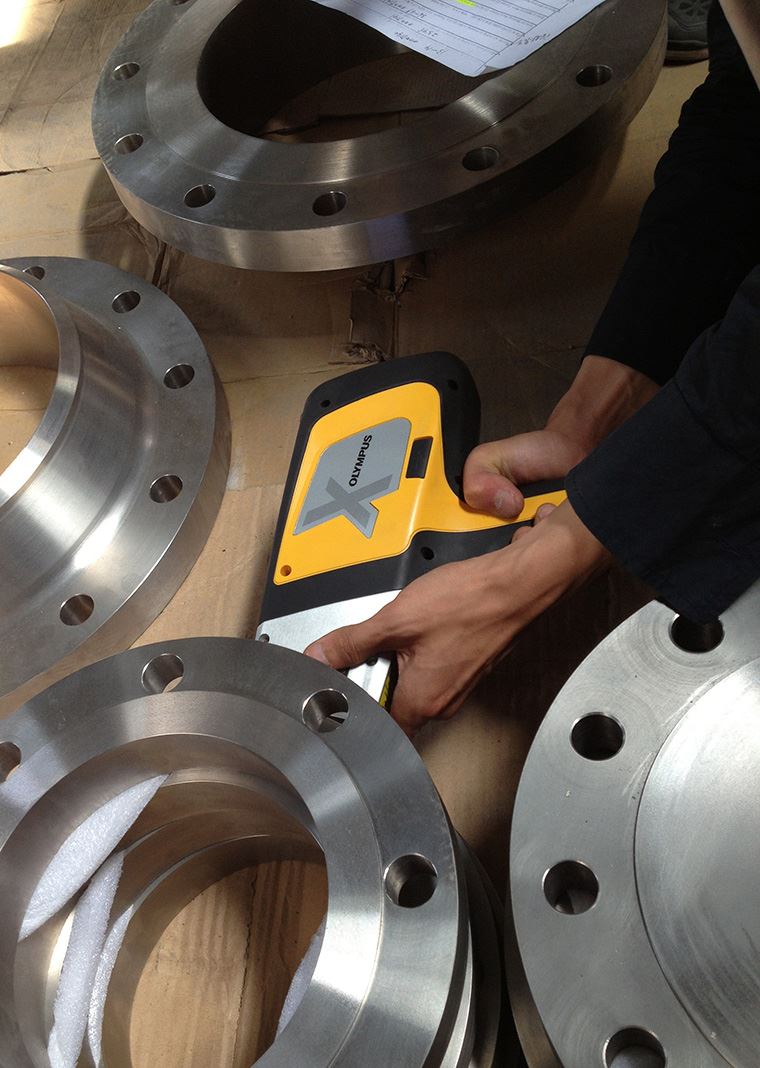

Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer

Send Inquiry

Chat Now

Product Introduction

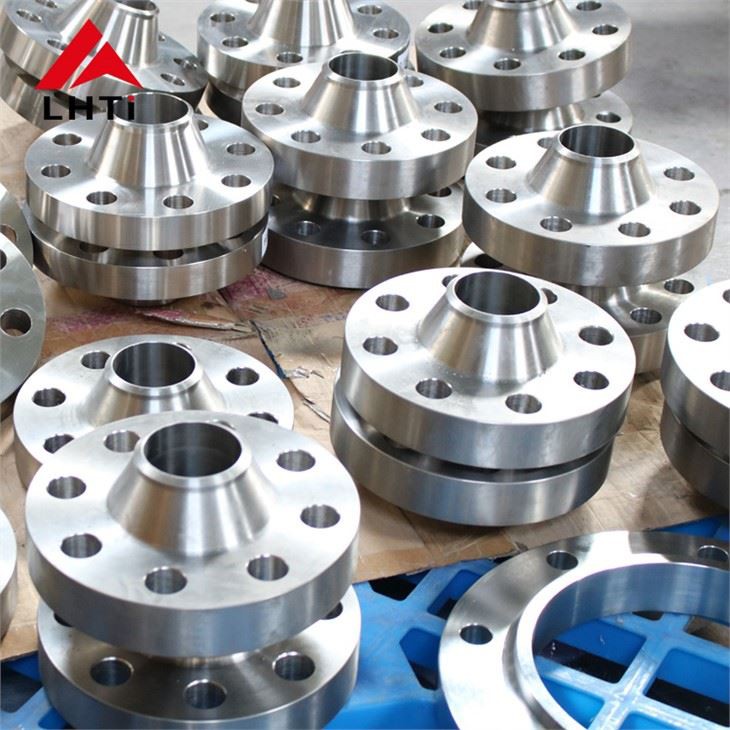

Gr2 Titanium Weld Neck Flange

Product name: Gr2 Titanium weld neck flange

Type: WNRF

Material Grade: Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Standard: ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5.

size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Technique: Forged and CNC Machined.

Advantages: Long service life, corrosion -resistant, hign yeiled strenth and tensile strength.

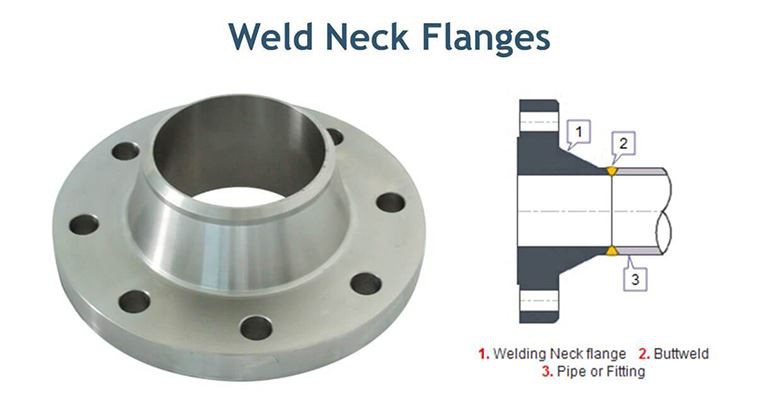

Drawing

Weld-Neck-Flange-(2)

Other flange type：

Products		Size
Titanium Threaded Flanges	Titanium Reducing Flanges	1/8’’ - 36’’ Raised Face or Flat Face
Titanium Blind Flanges	Titanium Plate Flanges
Titanium Slip-On Flanges	Titanium Forged Flanges
Titanium Lap Joint Flanges	Titanium Socket Weld Flanges

Tensile requirements

Grade	Tensile strength(min)		Yield strength(min)		Elongation(%)
Grade	ksi	M Pa	ksi	M Pa	Elongation(%)
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
12	70	438	50	345	18
