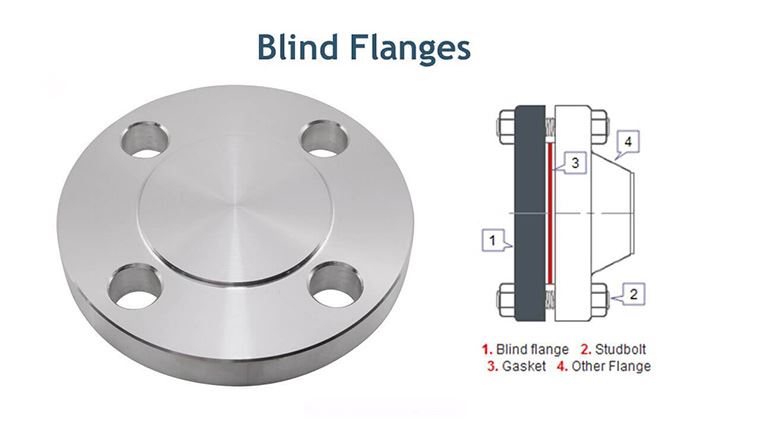

ANSI B16.5 Gr2 Titanium Blind Flange

ANSI B16.5 Gr2 Titanium Blind Flange

Product Information

Material: Gr1, Gr2, Gr5, Gr7, Gr12

Standard:  ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Forged and CNC Machined

Standard Specification for Gr2 Titanium Flange

ASTM B381 / SB381M-This specification covers 39 grades of annealed titanium and titanium alloys. The grades of titanium and titanium alloy metals covered by this specification shall comply with the specified chemical composition requirements.

ANSI B16.5-standard covers alloy pipe flanges and flange fittings from NPS 1/2 to NPS 24 metric/inch in pressure class 150 to class 2500.

The ANSI B16.48-standard covers pressure-temperature ratings, materials, dimensions, tolerances, markings and tests. Working pipe blanks with sizes from NPS 1⁄2 to NPS 24 are used for ASME B16 at 150, 300, and 600. 5 Installation between flanges, 900, 1500 and 2500 pressure ratings.

Advantages

• Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

• Long service life

• Corrosion-resistant

• High yeiled strength and tensile strength

• Excellent strength to weight ratio

• Temperature resistance

• Good thermal conductivity

• Great malleability and weldability

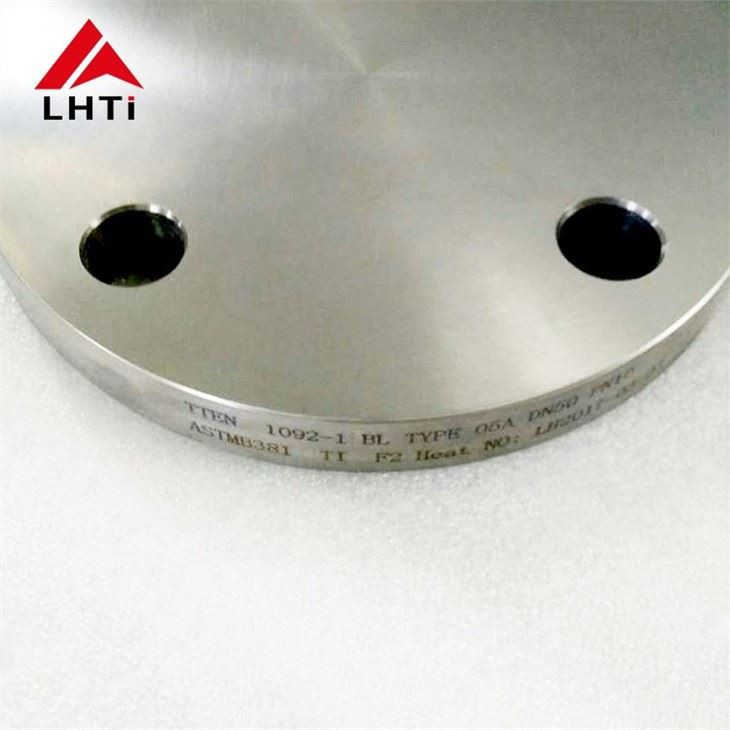

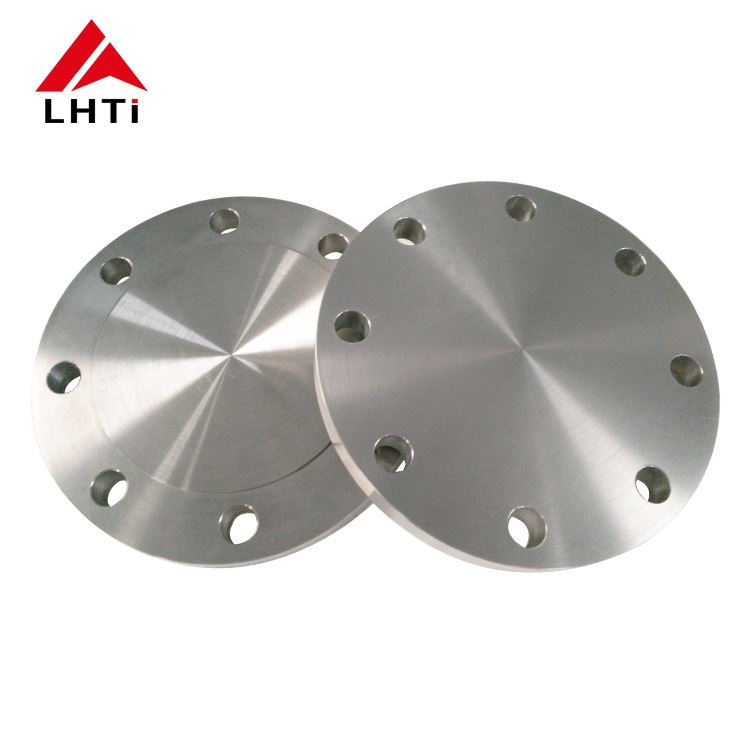

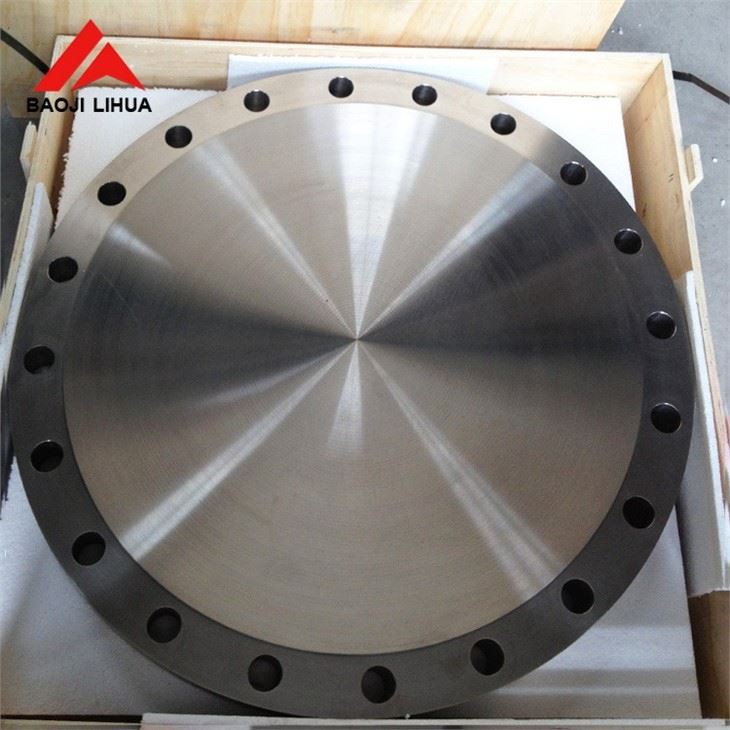

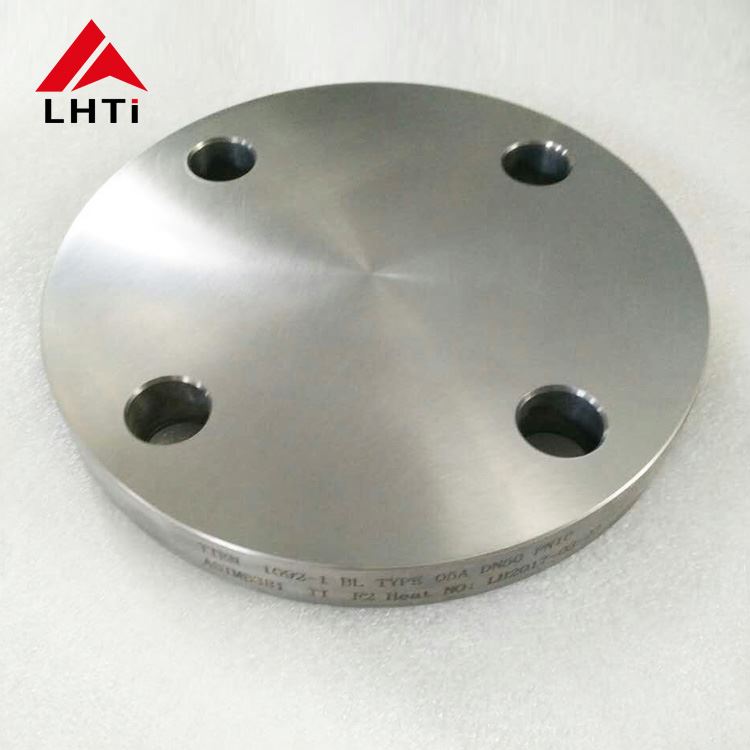

Detailed Images

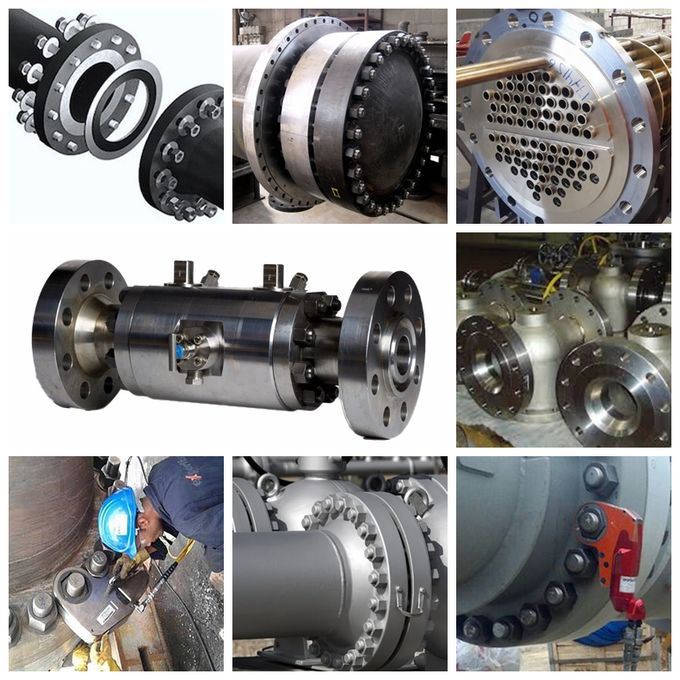

Applications

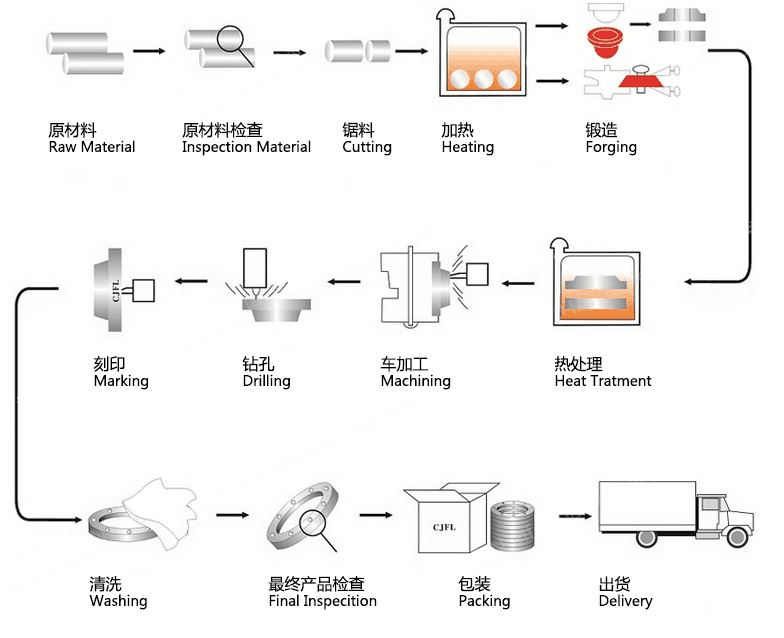

Production Process

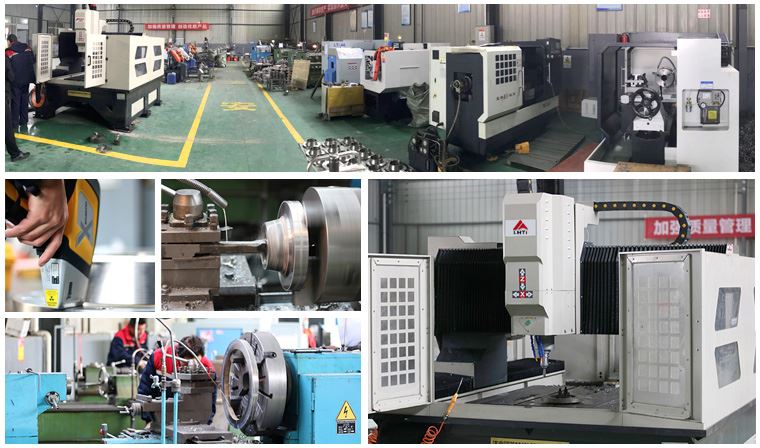

Our Factory

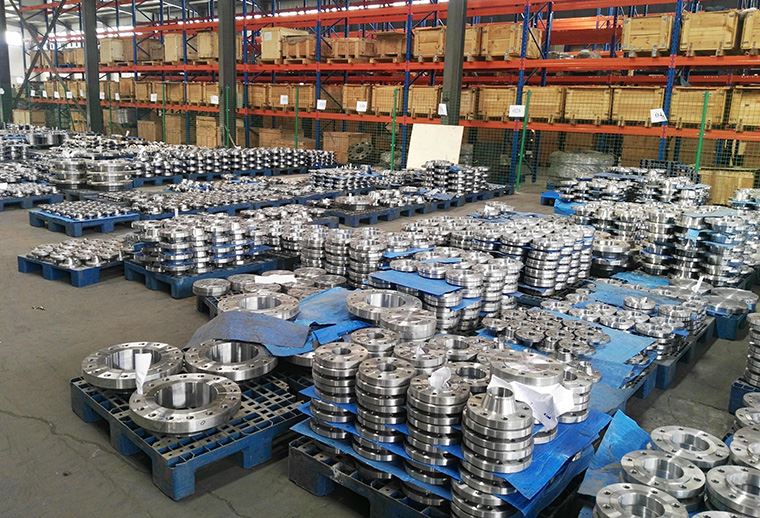

Stock

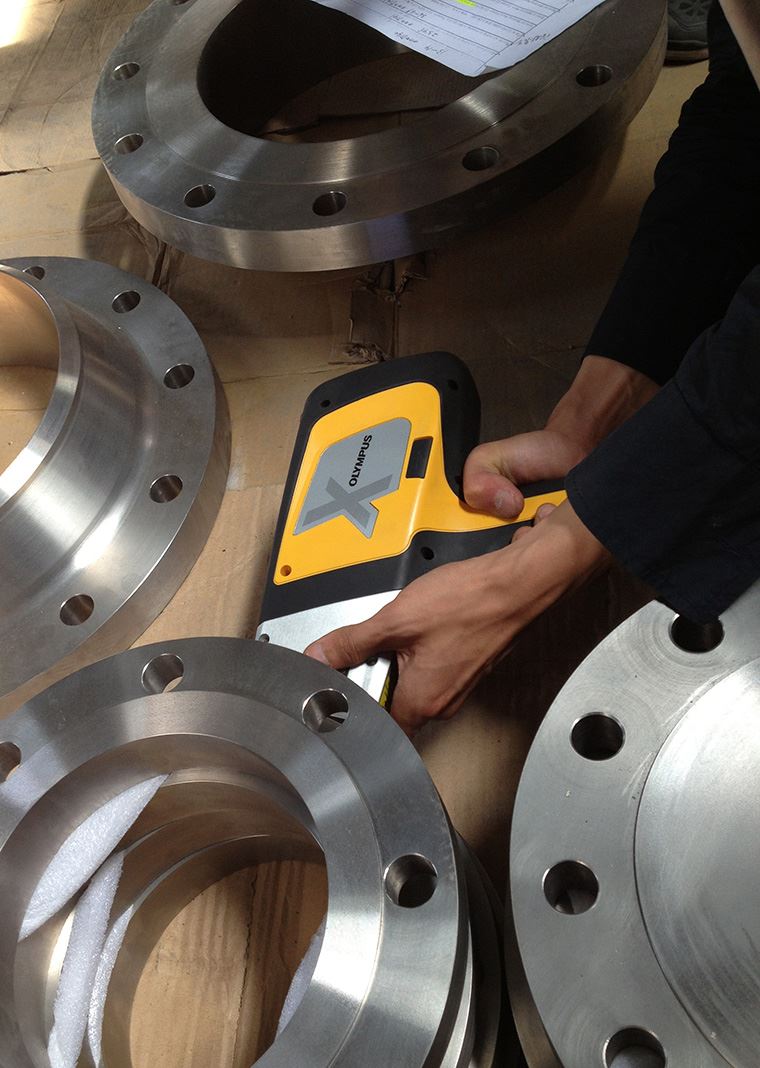

Quality Inspection

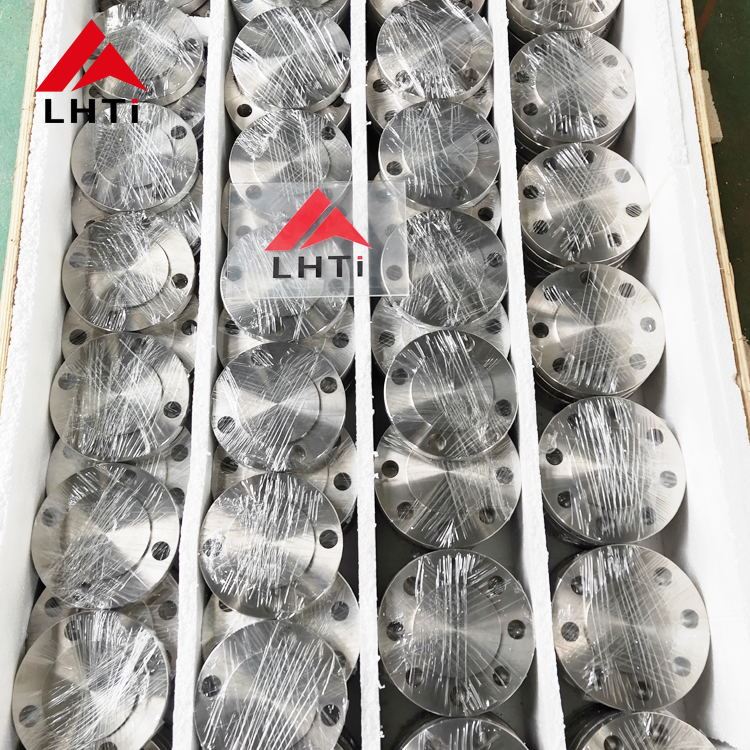

Packaging

Our Company

As a leading manufacturer & trader of titanium products, Baoji Lihua mainly focus on titanium rod, titanium wire, titanium tube and titanium flange etc., with a history of 16 years. The quality of our products is widely recognized.
