Titanium Tube Sheet Φ1057×125

Titanium Tube sheet Φ1057×125

 Titanium tubesheet is a kind of accessory that can drill holes on the titanium plate with the same outer diameter as the pipe, penetrate the pipe and weld it unchanged.

The accuracy of tubesheet processing is that the distance between tube holes and pipe diameter, perpendicularity and brightness all affect the assembly and application functions of the chemical equipment listed above. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small aperture, deep, high precision and brightness requirements.

It is mainly used in chemical vessels, such as tubular heat exchanger, pressure vessel, steam boiler, condenser, central air conditioner, evaporator and seawater desalination. It plays the role of maintaining the same tubular. The material of metal makes it not only have strong rigidity, but also have great heat conduction function

Chemical composition (Wt%)

Physical Properties (Min)

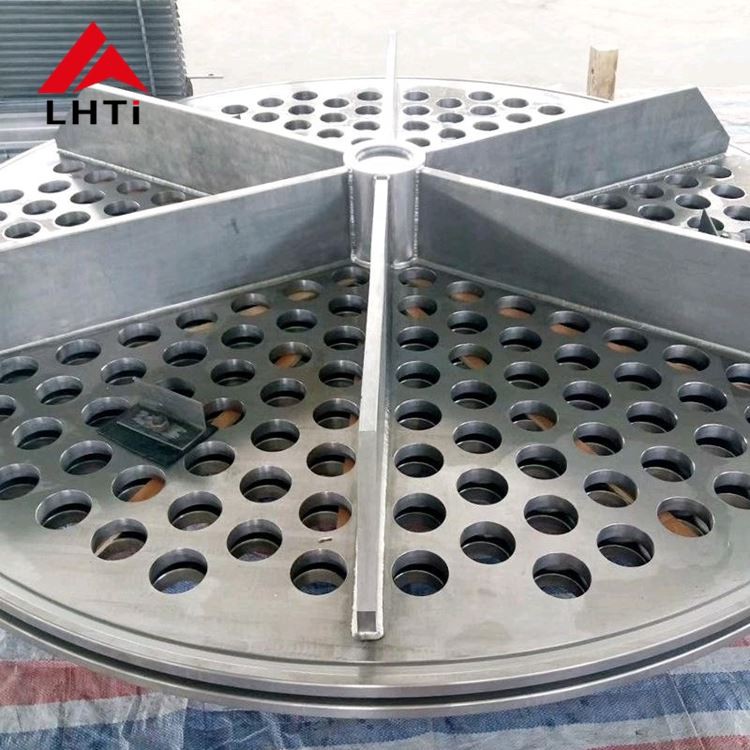

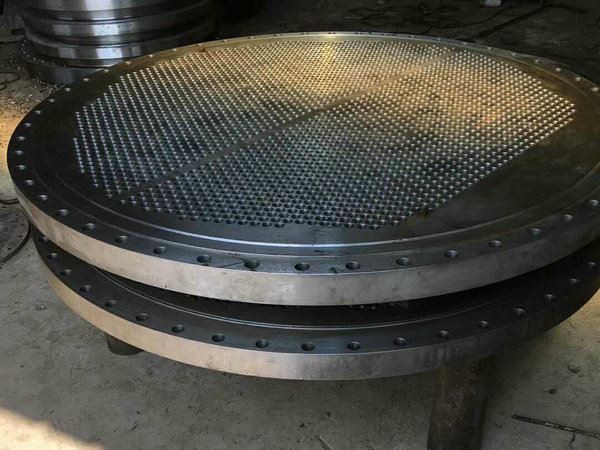

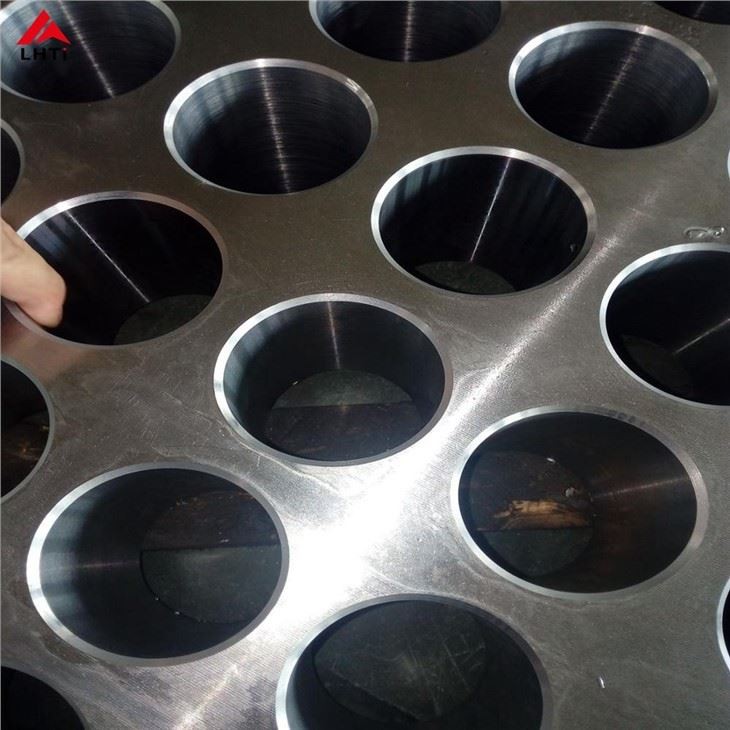

Detailed images:

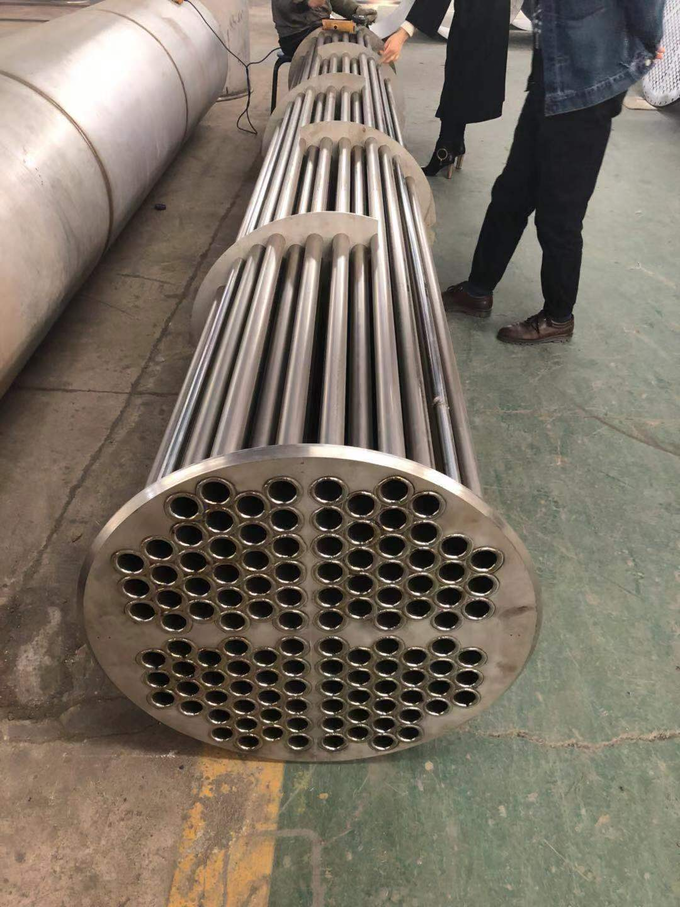

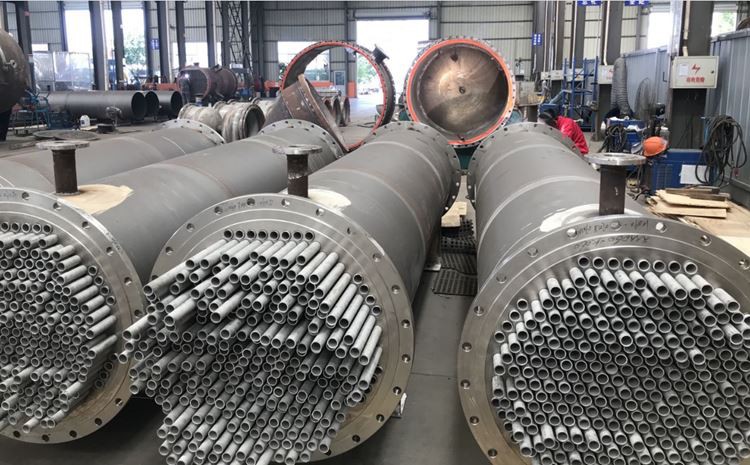

Titanium tubesheet used in heat exchanger:

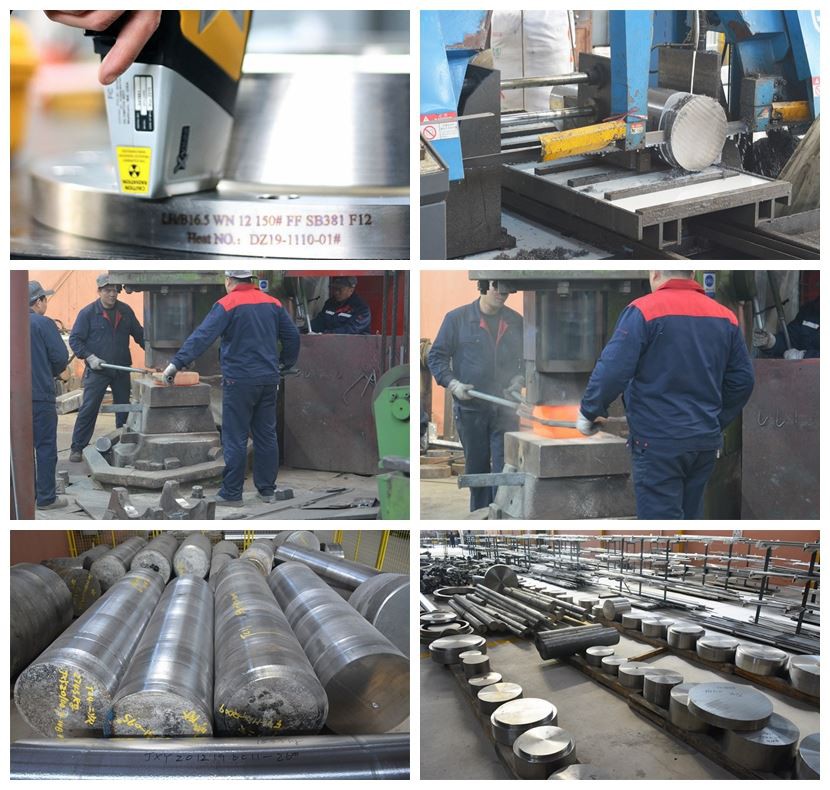

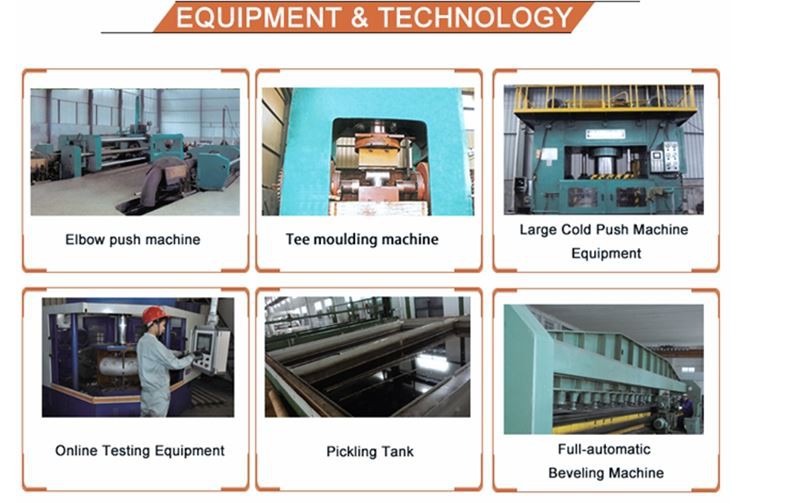

About our company:

Packing and shipping:

Welcome to contact!
