Gr7 Titanium Disc
Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Shape: Round or according to your requirements
Technique: Forged, CNC Machined
Quality Control: Ultrasonic Testing
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Disc Manufacturer

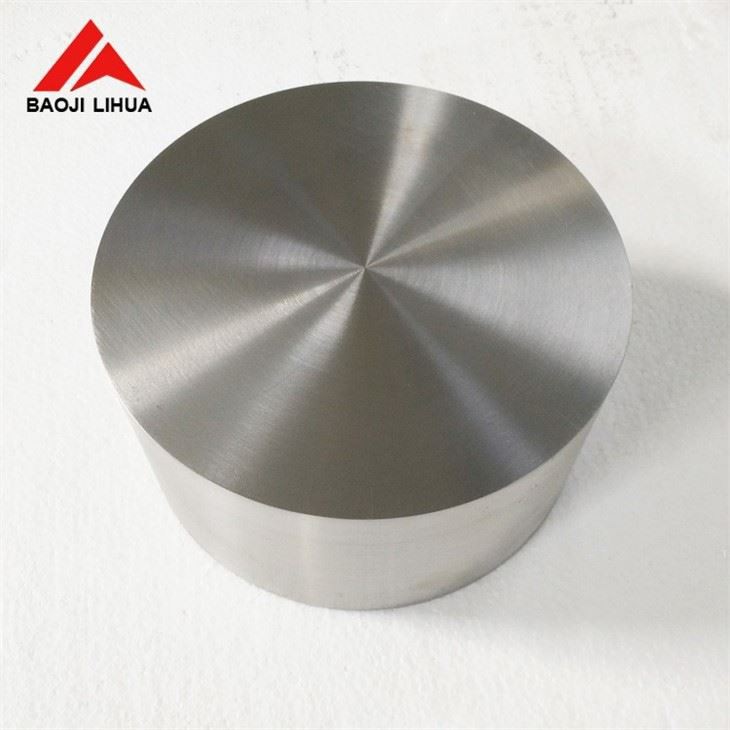

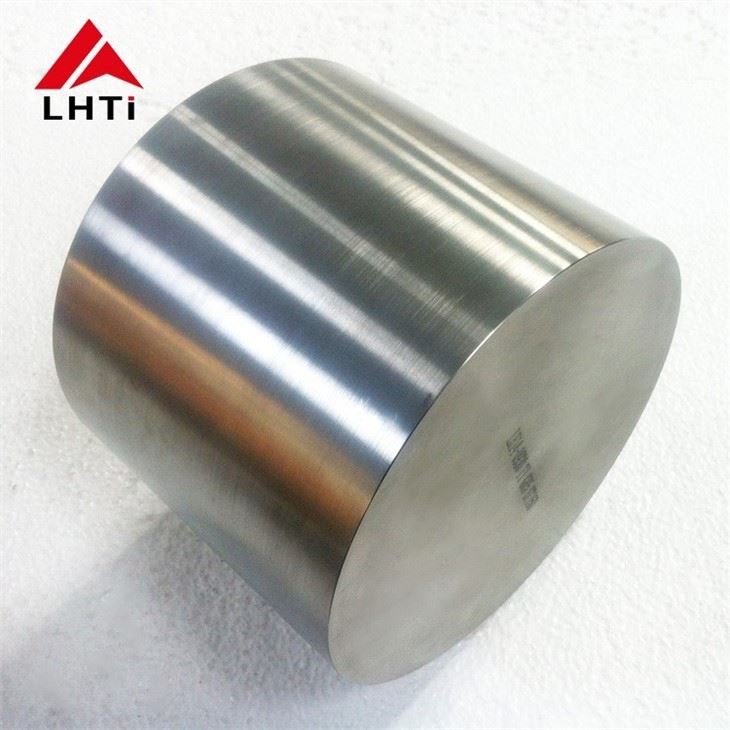

Gr7 Titanium Disc
Product Description
Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Standard: ASTM / ASME SB381
Shape: Round or according to your requirements
Available Sizes:
Diameter:50-200mm*Height 2-140mm
Diameter:200-400mm*Height 25-150mm
Diameter:400-600*Height 30-110mm
Advantages
High hard texture
Low impurity content
Excellent heat dissipation
High Strength
Excellent strength to weight ratio
Chemical compositions(weight%,<=) | ||||
Pd | Al | V | Fe | C |
0.12-0.25 | ---- | ---- | 0.30 | 0.08 |
N | H | O | Other(total) | Ti |
0.05 | 0.015 | 0.2 | 0.4 | Remainder |
Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) | |
400 | 275 | 20 | 25 | |

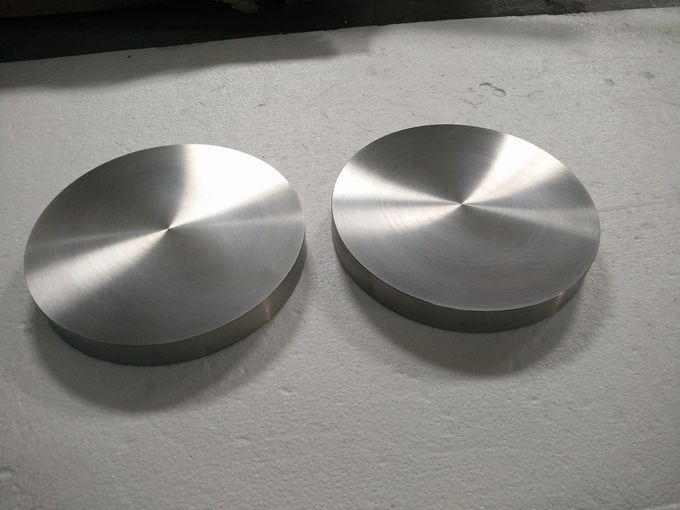

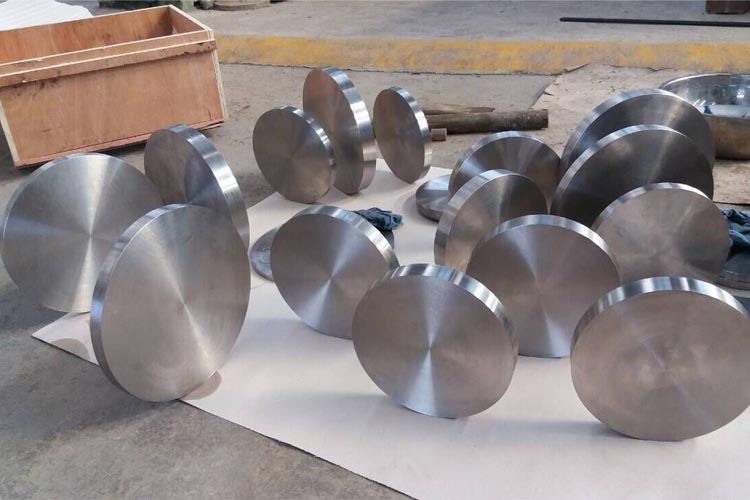

Deatiled Images
Applications
Building Structure
Power Plant
Marine Industry
Gasoline Exploration Industry
Medical Instrument Industry
Desalination Plant
Chemical Processing Plant

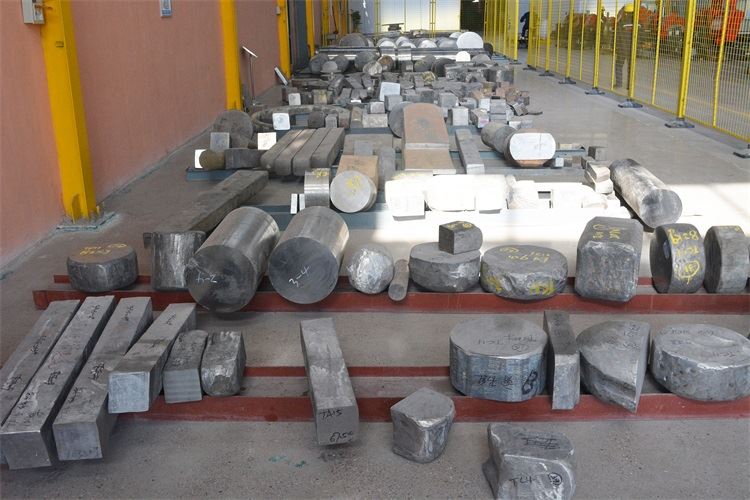

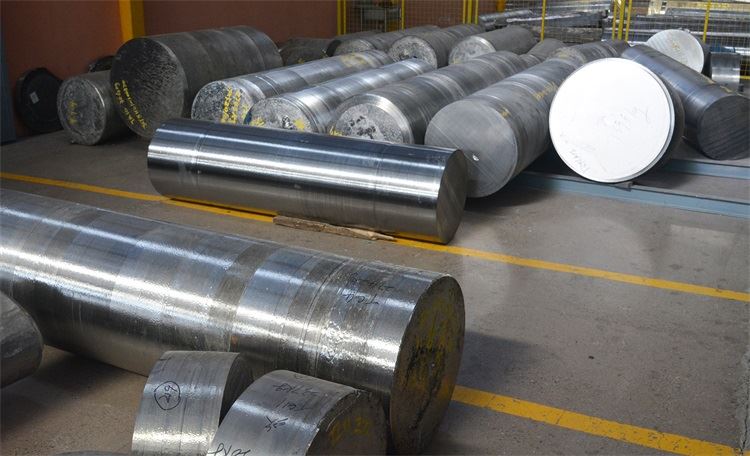

Raw Materials

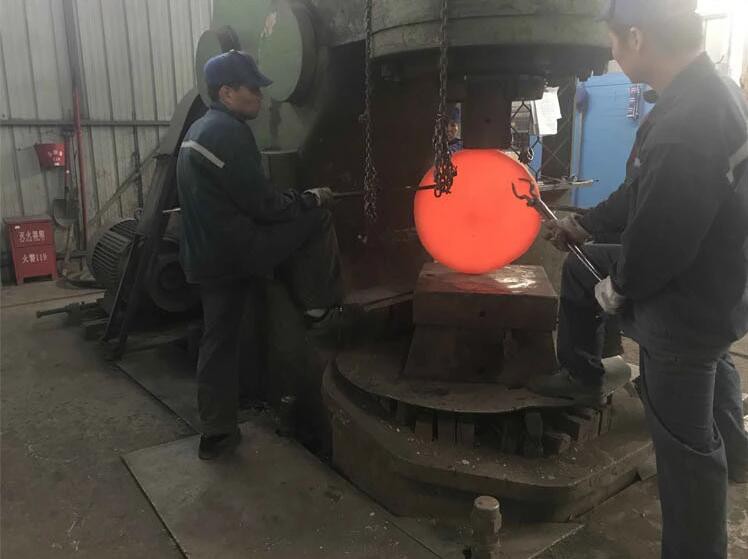

Our Factory

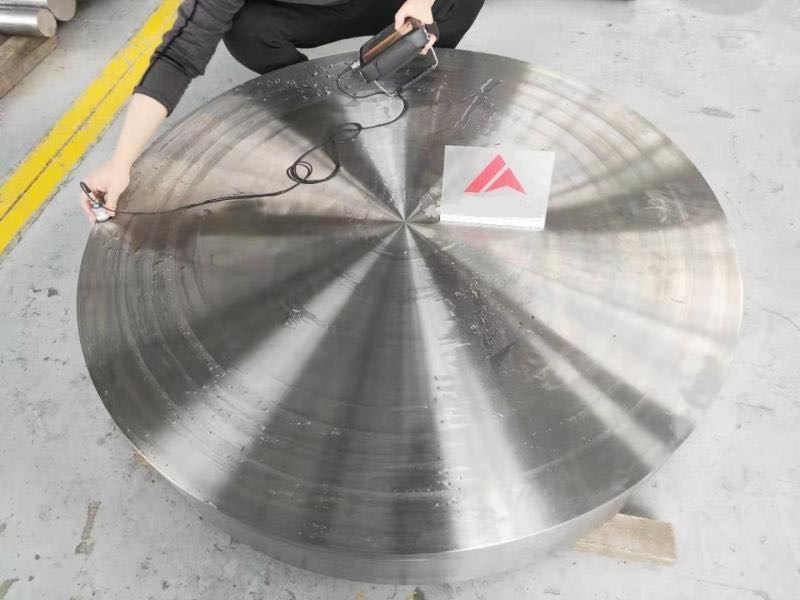

Quality Inspection
Destructive testing: physical performance testing, hardness testing, chemical composition testing.
Non-destructive testing: ultrasonic testing, penetration testing, appearance testing.
Packaging
Our Services
(1) We have inventory so we will provide customers with a shorter delivery time.
(2) Strict control from raw materials to finished products to ensure quality.
(3) Customized sizes are available as well as designated sizes and multiple sizes.
(4) Original mill sheet test reports EN 10204.3.1 is available.
