Titanium Round Cake Precision Custom Machining Parts

Titanium Round Cake Precision Custom Machining Parts

Titanium Round Cake Precision Custom Machining Parts

Standard: ASTM / ASME SB381
Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Shape: Round or according to your requirements
Technique: Forged, CNC Machined
Quality Control: Ultrasonic Testing
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Disc Manufacturer

Send Inquiry

Chat Now

Product Introduction

Grade	Physical properties
	Tensile strength Min		Yield strength Min (0.2%, offset)		Elongation in 4D Min (%)	Reduction of Area Min (%)
	ksi	MPa	ksi	MPa	Elongation in 4D Min (%)	Reduction of Area Min (%)
Gr1	35	240	20	138	24	30
Gr2	50	345	40	275	20	30
Gr4	80	550	70	483	15	25
Gr5	130	895	120	828	10	25
Gr7	50	345	40	275	20	30
Gr9	90	620	70	483	15	25
Gr11	35	240	20	138	24	30
Gr12	70	483	50	345	18	25
Gr16	50	345	40	275	20	30
Gr23	120	828	110	759	10	15

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Product picture:

product-1-1

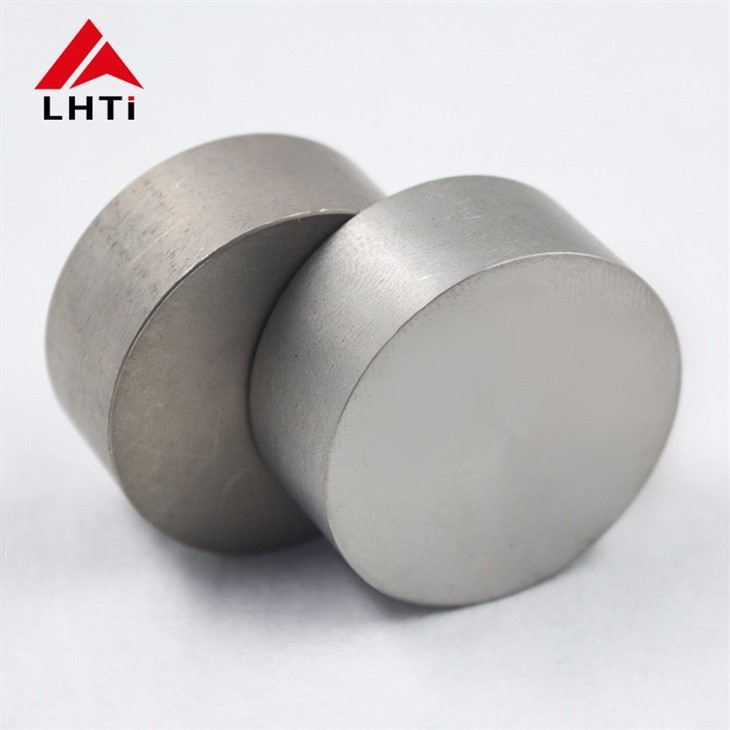

GR5 Forged Titanium Round Cake Precision Custom

Titanium Disc Forged
