Titanium Hex Bar

Titanium Hex Bar

Product Name: Titanium Hexagon Bar
Standard: ASTM B348
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg- $30usd/kg
Shape: Hex
Diameter: 6-50mm
Length: Max 6000mm
Surface: Bright
MOQ:50kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer

Send Inquiry

Chat Now

Product Introduction

1.Low Density and High Strength

2.Excellent Corrosion Resistance

3.Good resistance to effect of heat

4.Excellent Bearing to cryogenic property

5.Nonmagnetic and Non-toxic

6.Good thermal properties

7.Low Modulus of Elasticity

Titanium hexagon bar, grade 2 titanium hex bar, grade 5 titanium hex bar,Gr7 titanium hex bar, Gr12 titanium hex bar

Product Name: Titanium Hex Bar

Standard: ASTM B348

Material: GR1, GR2, GR5, GR7, GR12

Shape: Hex

Diameter: 6-50mm

Length: Max 6000mm

Surface: Bright

Technique	Hot Forging & Hot Rolling
Surface Finish	Polishing, or Pickling
Shape	hexagonal
Application	Industrial, Medical, Petrochemical Industry, etc
Feature	Excellent Bearing to Cryogenic property Non-magnetic and Non-toxic Good thermal properties Low modulus of elasticity

Mechanical Properties:

Product Form	Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation (%)	Hardness (HRB)
Hex & Bar	Hot Finished	60-85	15-45	55-35	45-80
Hex & Bar	Cold Drawn/Annealed or Hot-Finished/Annealed	55-75	15-30	55-40	45-70

Similar titanium material of different country:

China	America	Russia	Japan
TA1	Industrially Pure Titanium	GR1	BT1-00	TP270
TA2		GR2	BT1-0	TP340
TA3		GR3		TP450
TA4		GR4		TP550
TC4	Ti-6Al-4V	GR5	BT6	TAP6400
TA7		GR6
TA9	Ti-0.2Pd	GR7		TP340Pb
TA18	Ti-3Al-2.5V	GR9	0T4-1B	TAP3250
TA9-1		GR11
TA10	Ti-0.3Mo-0.8Ni	GR12
TB5	Ti-15V-3Al-3Gr-3Sn	Ti-15333

Detailed Images

Advantages

Non-Magnetic
High Strength
Low density
Precision Manufacturing
Light in weight
Excellent corrosion resistance
Excellent strength to weight ratio
High temperature resistance
Low temperature resistance
Good thermal conductivity
Long service life

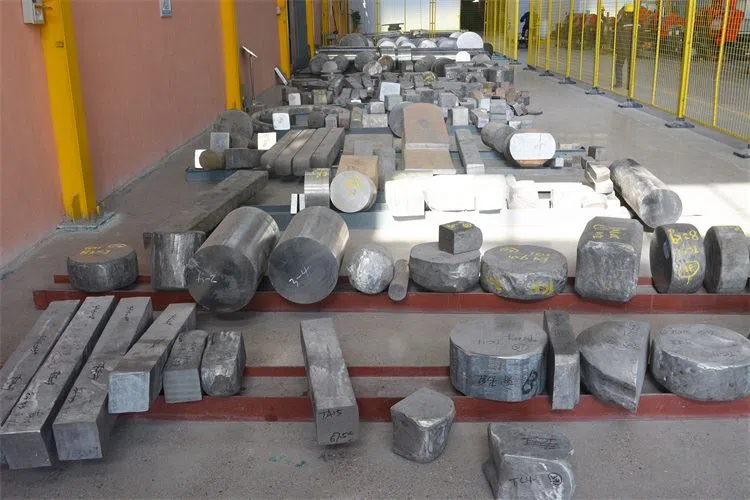

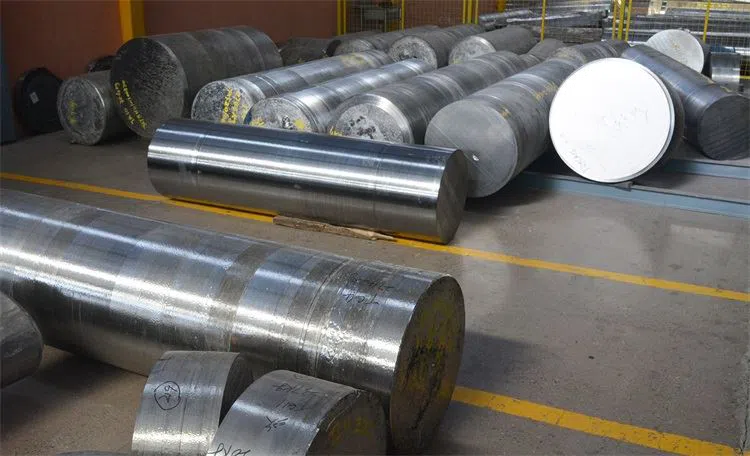

Raw Materials

About our company:

Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing various non-ferrous metals, called“China Titanium Valley”.We are specialized in manufacturing,researching and marketing non-ferrous metals, mainly for titanium, nickel& nickel alloy, tantalum mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI/ASTM/ASME/JIS/DIN etc. Lihua is certified by ISO9001:2008,TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.

Our Services

(1) Strict control from raw materials till products finished, so the quality is guaranteed.

(2) Customized sizes are offered as well as specified sizes and multiple sizes.

(3) Competitive prices will be provided for sure.
