ASTM F136 GR5 Eli Medical Titanium Bar
Application:Medical,surgical implant(Bone nail implant, dentistry etc.)
Standard : ASTM F136,ISO 5832-3
Material Grade: Grade 5,Grade 23(Ti6Al4V ELI)
Size: Dia (3.5-20)mm *L(up to 3000mm)
Diameter Tolerance :h9-h7
Shape:Round
Surface:Bright
Supply status: Annealed M
Certificate : ISO 9001, thrid party inspection is available(SGS TUV etc.).

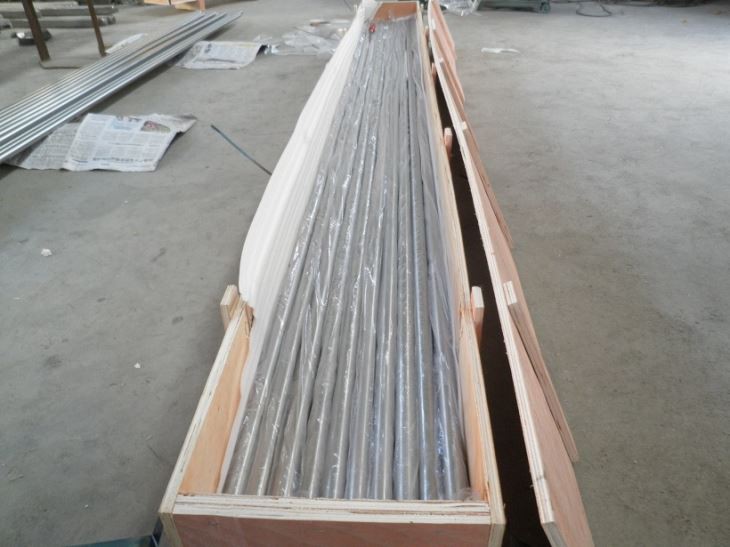

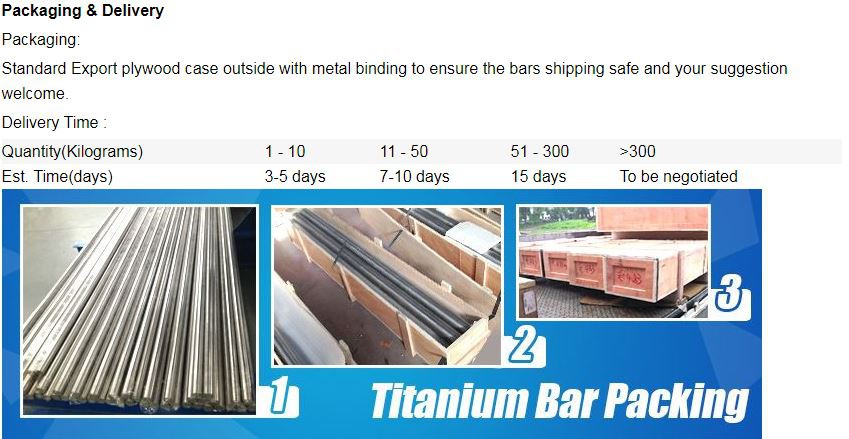

Package: Export Carton box or plywood case.
Quality and Test : EN10204.3.1 certificate
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer
ASTM F136 / ISO 5832-3 Gr5 eli Gr23 medical titanium bar
Item name | Medical titanium bar |
Standard | ASTM F136/ ISO 5832-3 |
Grade | GR5 Ti6AL4V ELI |

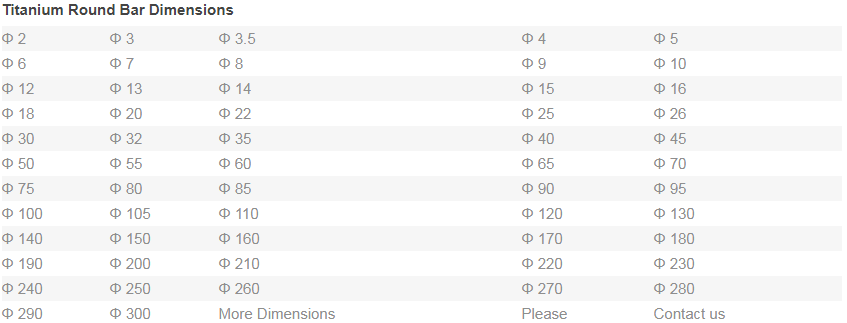

Diameter | 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm etc. |
Length | 1000mm,3000mm or as customer's requests |
Technique | Rolled |
Surface | Polished, bright |
Features | 1. Low density (ρ = 4.51g / cm³) and light. 2. Non-magnetic. 3. Used in the working environment of -273 ℃ to 500 ℃, high strength. 4, Implanted in the human body, no exclusion. |

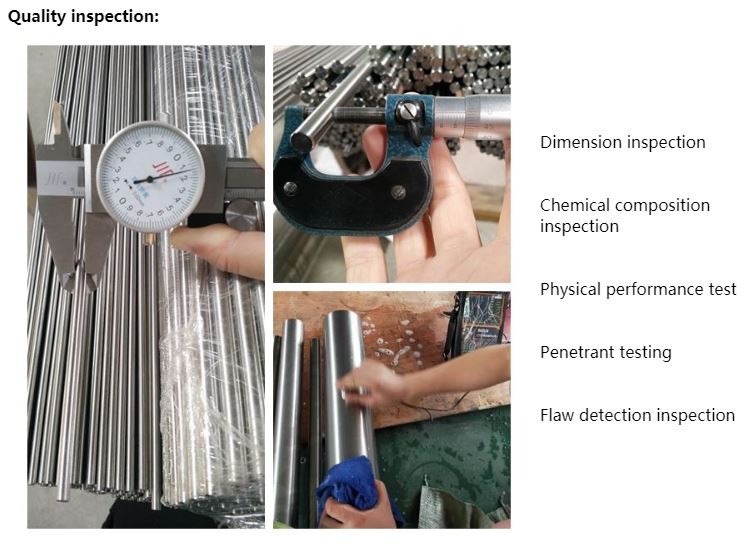

Inspections | Ultrasonic testing, straightness testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis. |
Certificate | ISO9001:2015, Material test certificate acc EN10204.3.1,Third party inspection is available |
Customers can choose the following tolerances as product requirements
Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 |
Tolerance precision (um) | ||||||
3Max | 10 | 14 | 25 | 40 | 60 | 100 |
3~6 | 12 | 18 | 30 | 48 | 75 | 120 |
6~10 | 15 | 22 | 36 | 58 | 90 | 150 |
10~18 | 18 | 27 | 43 | 70 | 110 | 180 |
18~30 | 21 | 33 | 52 | 84 | 130 | 210 |
30~50 | 25 | 39 | 62 | 100 | 160 | 250 |
50~80m | 30 | 46 | 74 | 120 | 190 | 300 |
80~120 | 35 | 54 | 87 | 140 | 220 | 350 |
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | ||||||

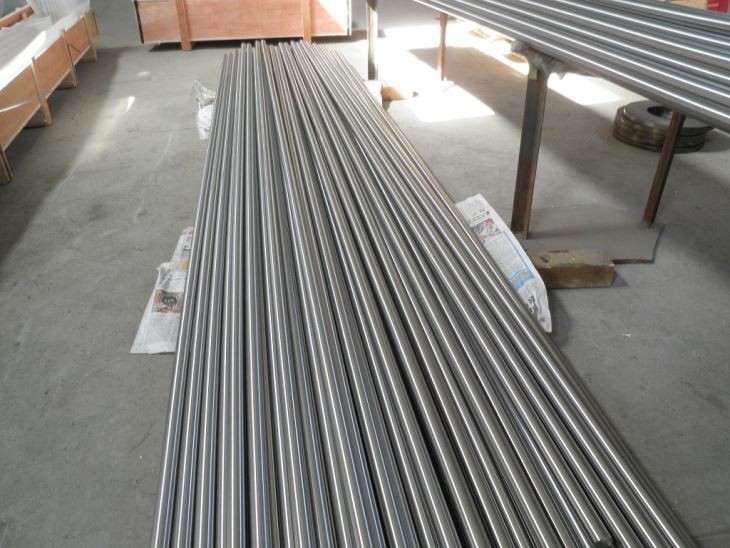

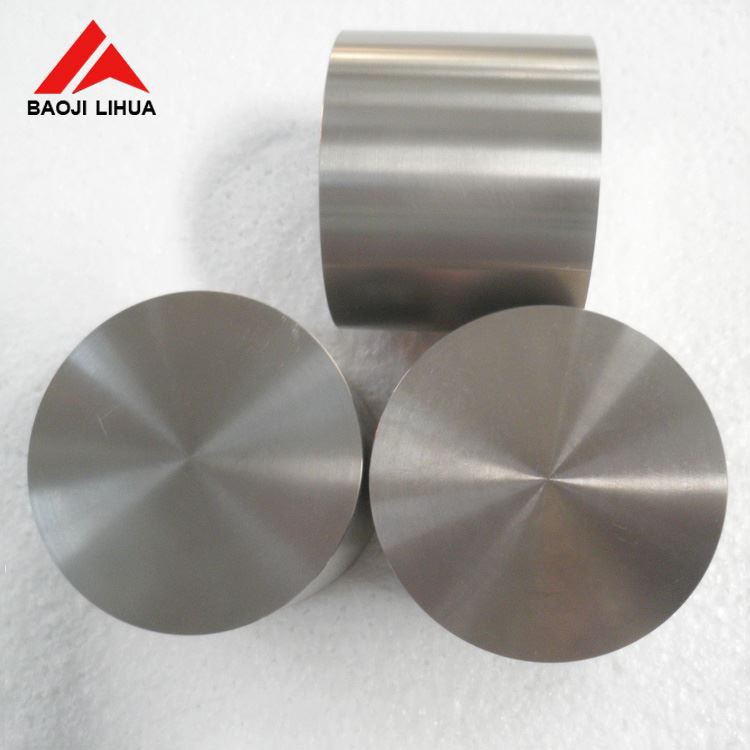

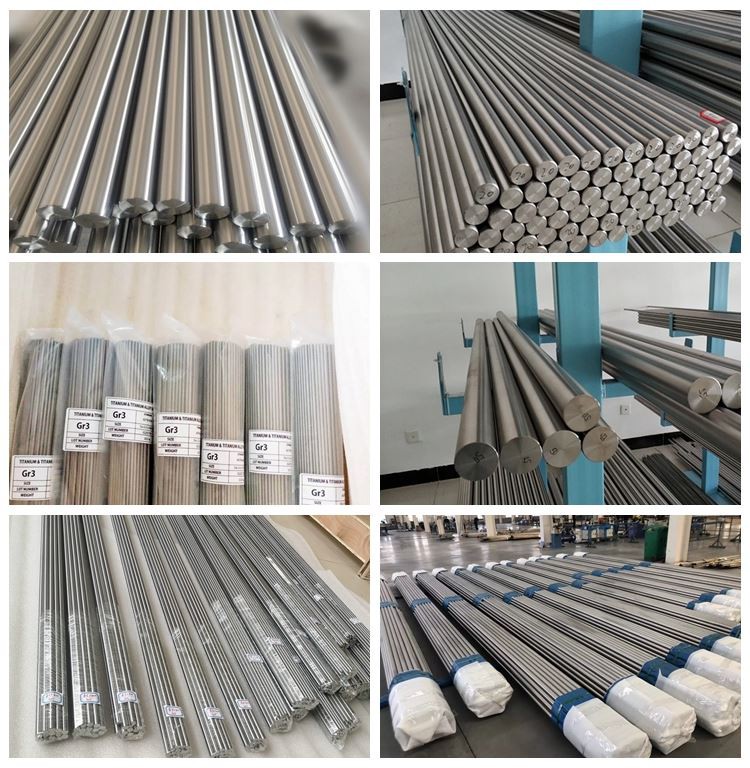

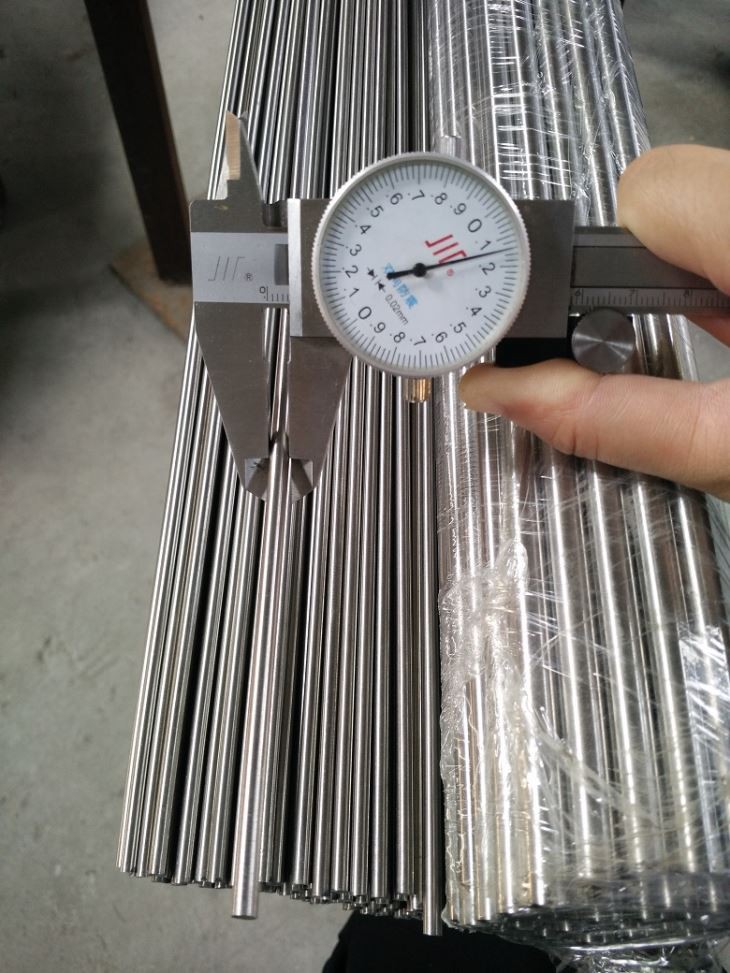

Detailed images:
About our company:

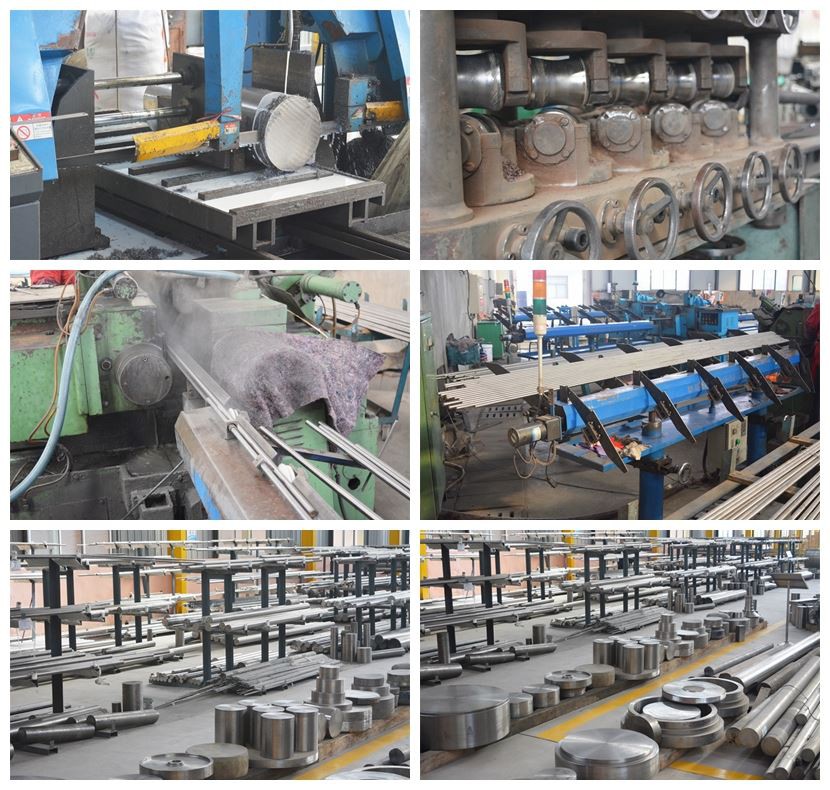

Baoji Lihua Non-ferrous Metals Co.Ltd, founded in 2006, lies in Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing for titanium. With 15 years production and export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Our company keep long-term cooperation with SGS,BV, LR'S ,TUV and other international inspection agency.Third party inspections to our products is acceptable.
