Titanium Bar For Sale
Standard : ASTM B348
Size: Dia 5--200mm * Max L6000mm
Applications :Industrial
Supply status: Annealed
Package: Carton or plywood case.
Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
MOQ : 10kgs
Feature : low density, special strong strength, excellent corrosive resistance

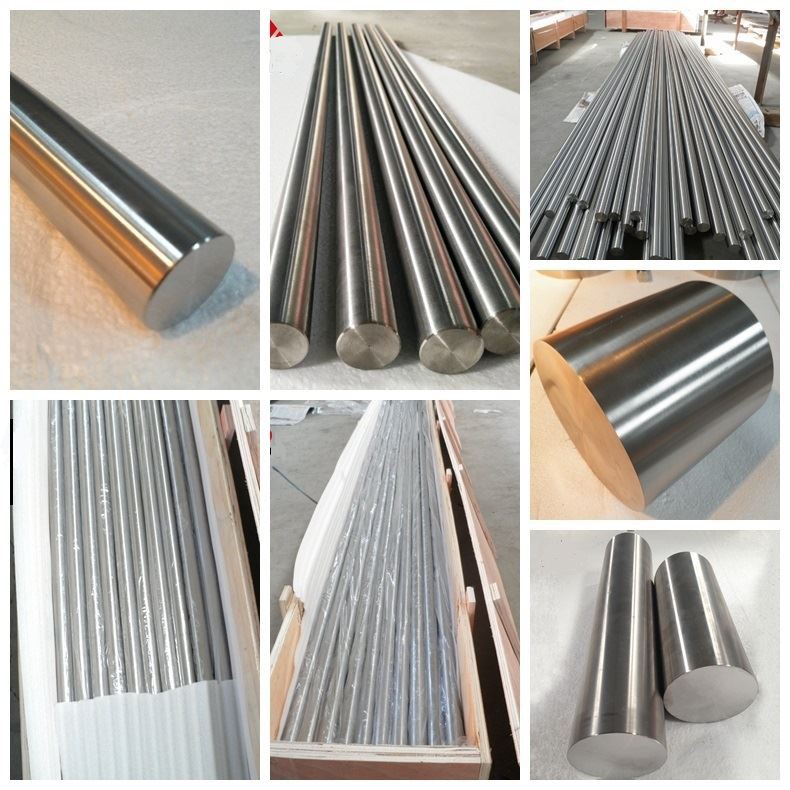

Titanium Bar for sale
Feature:
- Low Density
- Excellent Corrosion Resistance in acid and alkali salt
- High heat transfer capability
- Good biocompatibility
- Low elasticity module
- Low thermal expansion coefficient
- Superior strength-to-density ratios
- Good strength at low and high temperature.
Production Name | Titanium Bar |
Size | Dia5-350mm |
Material grade | Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc. |
Standard | ASTM B348, ASTM F67, ASTM F136, AMS 4928, ASTM F1295, ISO5832-2, ISO5832-3 |
Diameter | 6.35-230mm |
Length | 300-4000mm |
Supply status | M (Y/ R) |
Feature | High corrosion resistance, low density, good thermal stability |
Certificate | ISO 9001:2008; The third test report; TÜV Rheinland; Supplier Assessment Certificate |
Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
Gr3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | bal |
Gr4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.17 | / | / | bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | bal |
Common Grades:
Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium grade is used in airframes, heat exchangers and desalination units.
Titanium Grade 2 is an unalloyed, medium strength titanium product. This titanium grade is used in airframes, aircraft engines and marine parts; good weldability and corrosion resistance are its distinguishing characteristics.
Titanium Grade 3 is an unalloyed, high strength, titanium product providing excellent corrosion resistance and good weldability. This titanium grade is primarily used in airframe and aircraft engine parts.
Titanium Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for
airframe, aircraft engine parts, marine, surgical implants, hydraulic tubing. Good formability and corrosion resistance are its
hallmark.
Titanium Grade 5 (6AL-4V)is an alloyed titanium product containing 6% Aluminum and 4% Vanadium; is a medium strength product. This titanium grade is predominantly used in airframe and turbine engine parts; and for use in surgical implants. Technical Info Titanium 6AL – 4V ELI is an alloyed titanium product containing 6% Aluminum and 4% Vanadium, ELI (Extra Low Interstitial).
6AL–2Sn–4Zr–2Mo (6-2-4-2)is an alloyed titanium product containing 6% Aluminum, 2% Tin, 4% Zirconium, 2% Molybdenum.
6AL–6V–2Sn (6-6-2)is an alloyed titanium product containing 6% Aluminum, 6% Vanadium, 2% Tin.
5AL–2.5Sn & ELI (5-2.5)is an alloyed titanium product containing 5% Aluminum and 2.5% Tin. Also ELI (Extra Low Interstitial).
8AL–1V–1Mo (8-1-1)is an alloyed titanium product containing 8% Aluminum, 1% Molybdenum and 1% Vanadium.
15V–3Cr–4AL–3Sn (15-3-3-3)is an alloyed titanium product containing 15% Vanadium, 3% Chromium, 4% Aluminum, 3% Tin.
