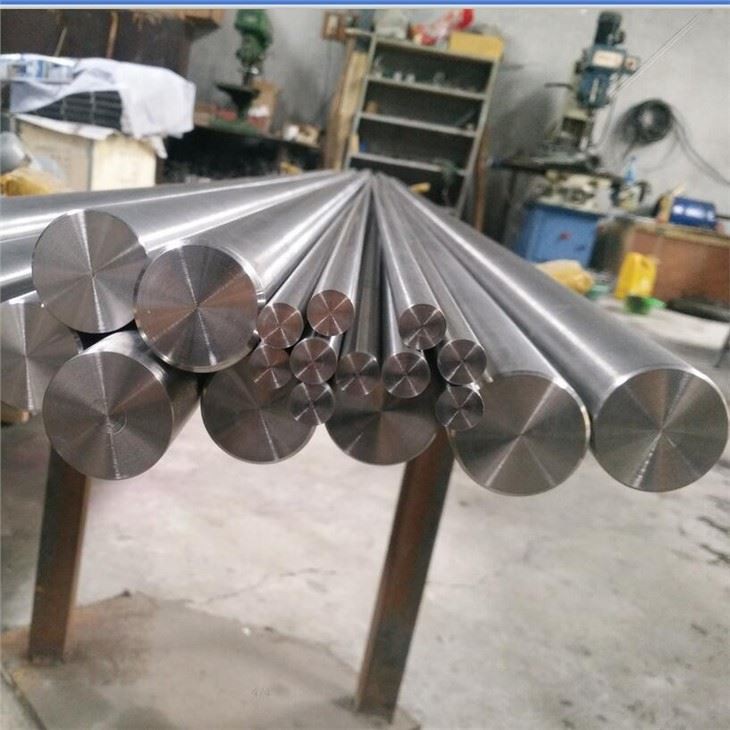

6-2-4-2 Titanium Bar

6-2-4-2 Titanium Bar

Product name: 6-2-4-2 Titanium bar
Standard : ASTM B348
Size: Dia 5--200mm * Max L6000mm
Applications :Industrial
Supply status: Annealed
Package: Carton or plywood case

Send Inquiry

Chat Now

Product Introduction

6-2-4-2 Titanium bar

Ti-6Al-2Sn-4Zr-2Mo-0.1Si (6-2-4-2 ) is an alloyed titanium product containing 6% Aluminum, 2% Tin, 4% Zirconium, 2% Molybdenum. It is belong to titanium alloy material.

Production Name	6-2-4-2 Titanium bar, titanium alloly bar,6242 titanium bar,titanium bar price per kg
Size	Dia5-350mm
Material grade	(6-2-4-2 )Ti-6Al-2Sn-4Zr-2Mo-0.1Si
Standard	ASTM B348
Diameter	6.35-230mm
Length	300-4000mm
Supply status	M (Y/ R)
Feature	High corrosion resistance, low density, good thermal stability
Certificate	ISO 9001:2008; The third test report; TÜV Rheinland; Supplier Assessment Certificate

6-2-4-2 titanium bar
Chemical compositions(weight%,<=)
Al	Sn	Mo	Zr	Si	Fe	C
5.5-6.5	1.8-2.2	1.8-2.2	3.6-4.4	<=0.13	0.25	0.05
N	H	O	Other(total)	Ti
0.05	0.0125	0.15	0.3	Remainder
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	825	10	25

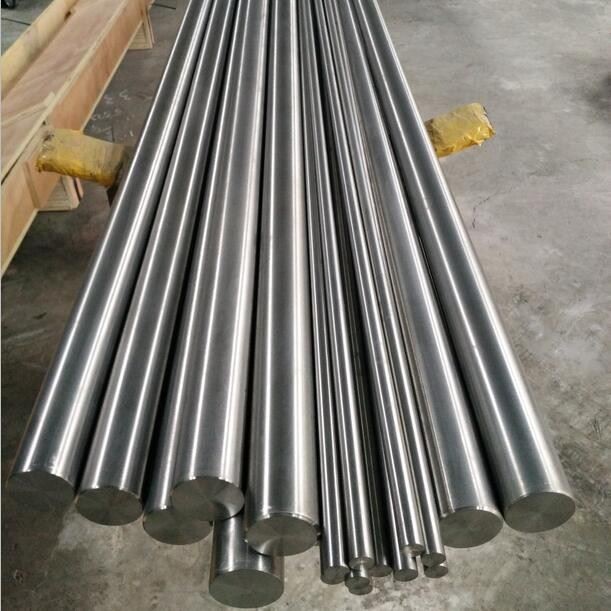

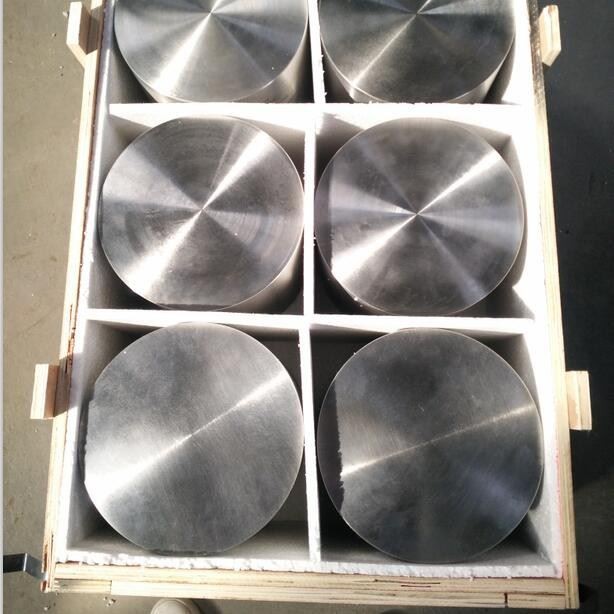

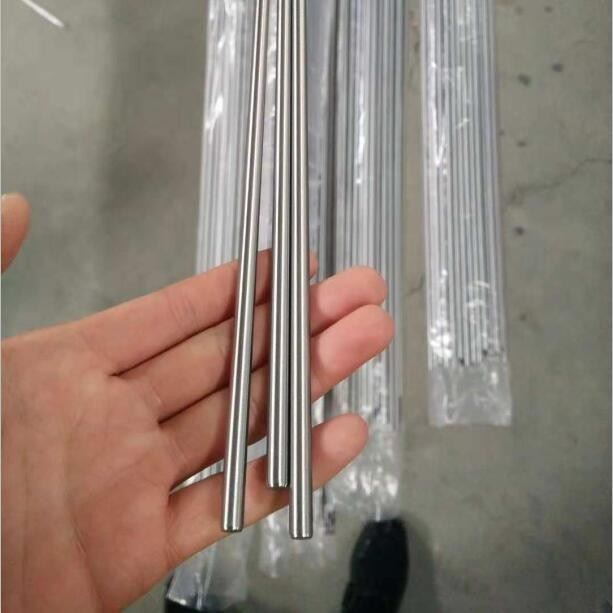

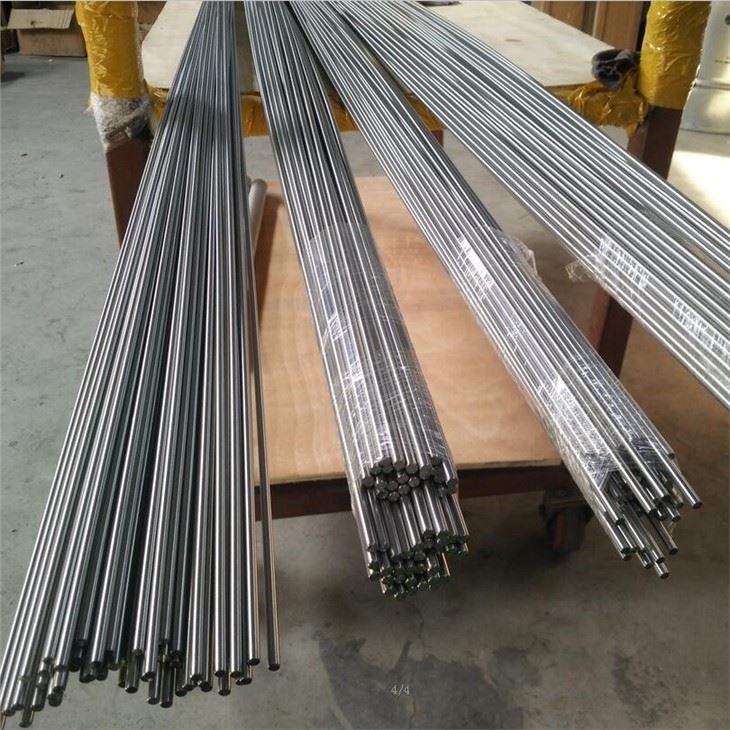

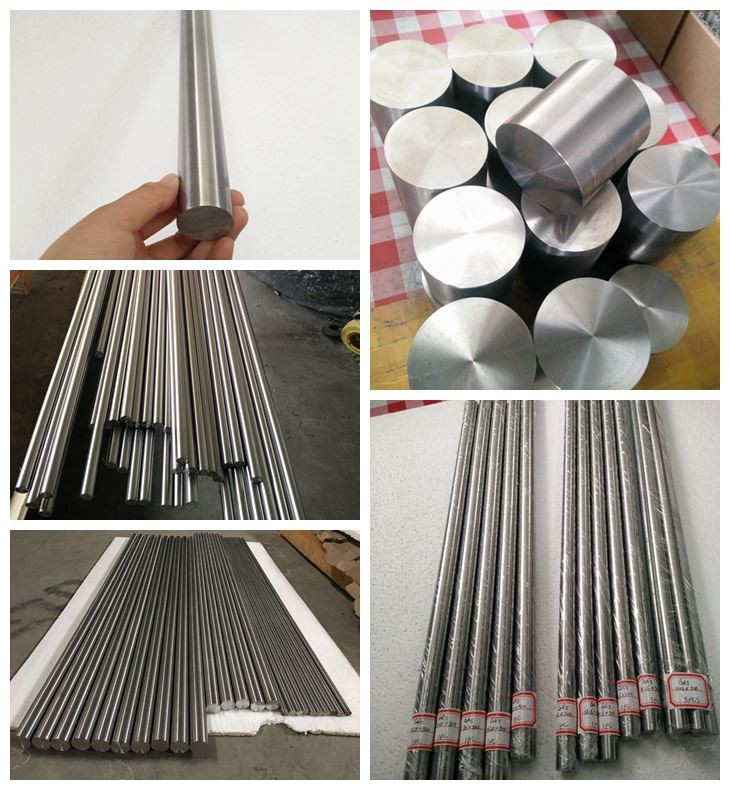

Detailed images:
Titanium bar 33

Titanium bar/rod used in different fields:

Material Testing:
We ,Baoji Lihua ensure that all our materials go through strict quality tests before dispatching them to our clients.Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Intergranular Corrosion (IGC) Test

Quality

About our company:

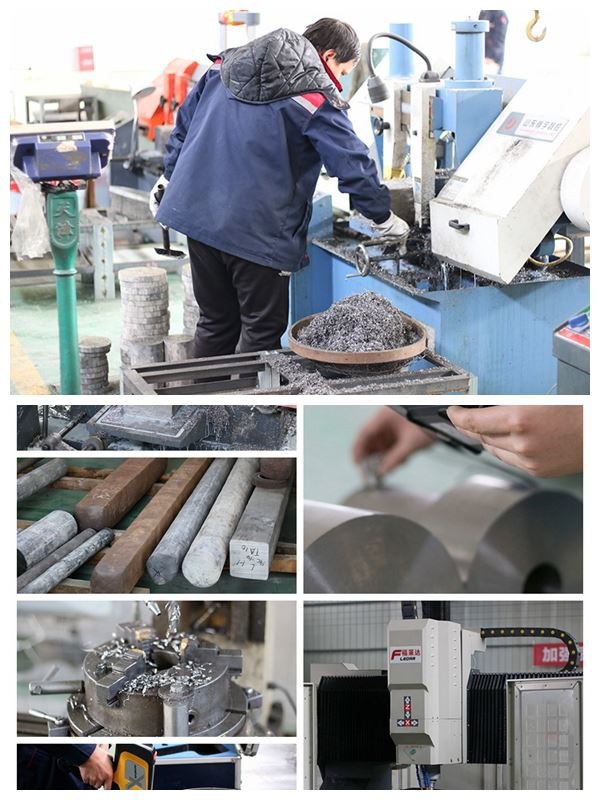

factory7 lihua titanium rod (1)
