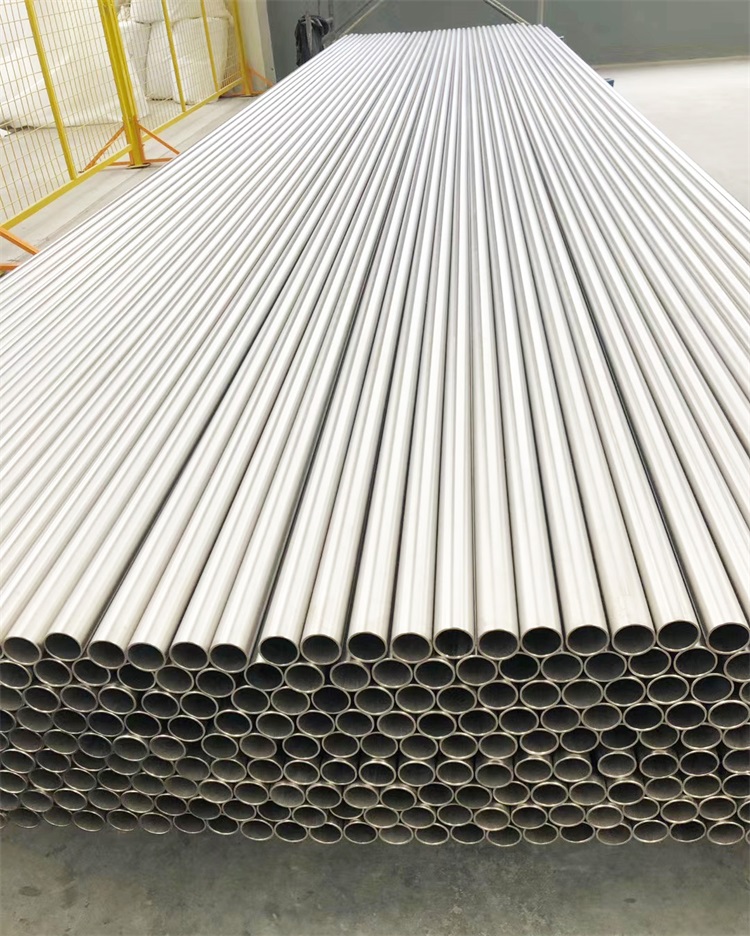

ASTM SB338 Gr2 Pure Titanium Pipe
Material:Pure Titanium
Grade:Grade 2
Purity:99.5%min
Length:Max 12 Meter
Surface:Pickling Surface
Application:Heat Exchanger
Payment Term:T/T,Paypal,Western Union Etc
The commonly used size of heat exchange tube (outer diameter x wall thickness) is mainly Φ 19mmx2mm, Φ 25mmx2.5mm and Φ 38mmx2.5mm seamless pipe and Φ 25mmx2mm and Φ 38mmx2.5mm pipe. Standard pipe lengths include 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The adoption of small tube diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption and improve the heat transfer coefficient. It is estimated that the heat exchange tubes of heat exchangers with the same diameter will be Φ Change 25mm to Φ 19mm, the heat transfer area can be increased by about 40% and the metal can be saved by more than 20%.
Standard: ASTM B338
Product Name: Titanium seamless pipe for heat exchanger
Material: Gr2
Type: Seamless
Shape: Round
Outer Diameter: 10mm 12mm 14mm 16mm 19mm 20mm 25mm 32mm 38mm 40mm 45mm 50mm 57mm etc
Customized OD is available
Wall Thickness: 1.24-30mm
Length: Max 16000mm
Surface: Bright
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |

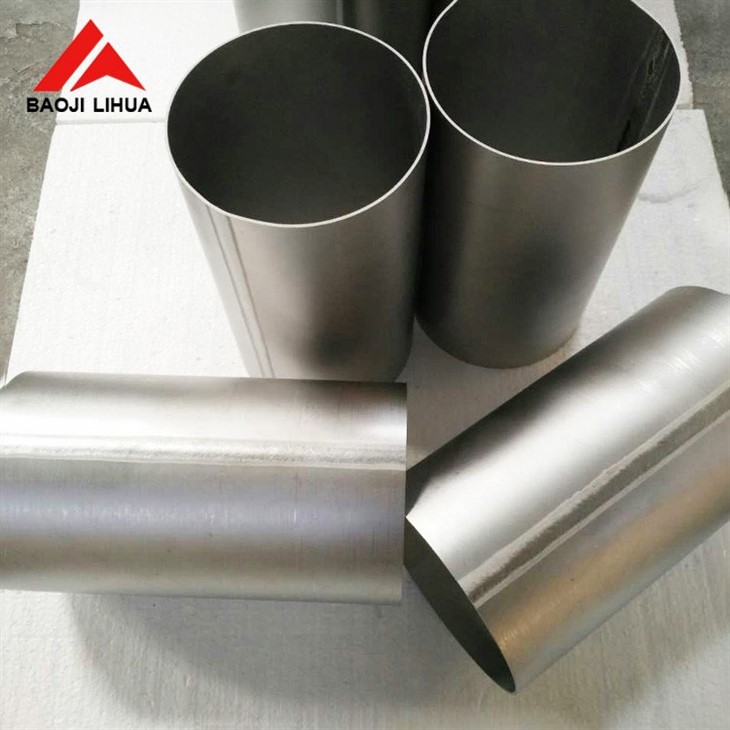

Detailed images:
