Application:Industrial
Diameter:5-350mm
Shape:Round
Length:Max6000mm
Technique:Rolled
Grade:GR2,GR3,GR4,GR5 Ti6AL4V ELI,Gr23 6AL7Nb,13Nb13Zr
weight:4.51g/cm3
Medical Titanium Alloys Grade 5 Titanium Bar
ASTM B348 Titanium forged Bar GR9 Titanium rod Gr9 Titanium Alloys Bar specifications: diameter 8 -- 200MM*L Gr9 Titanium Alloys Bar chemical composition: Ti-margin Al: 2.0-3.5 ,V:1.5 to 3.0 Fe < 0.25, C < 0.08, N < 0.05 ,H < 0.015, O < 0.15 Mechanical properties of Gr9 Titanium...
Send Inquiry
Chat Now
Product Introduction

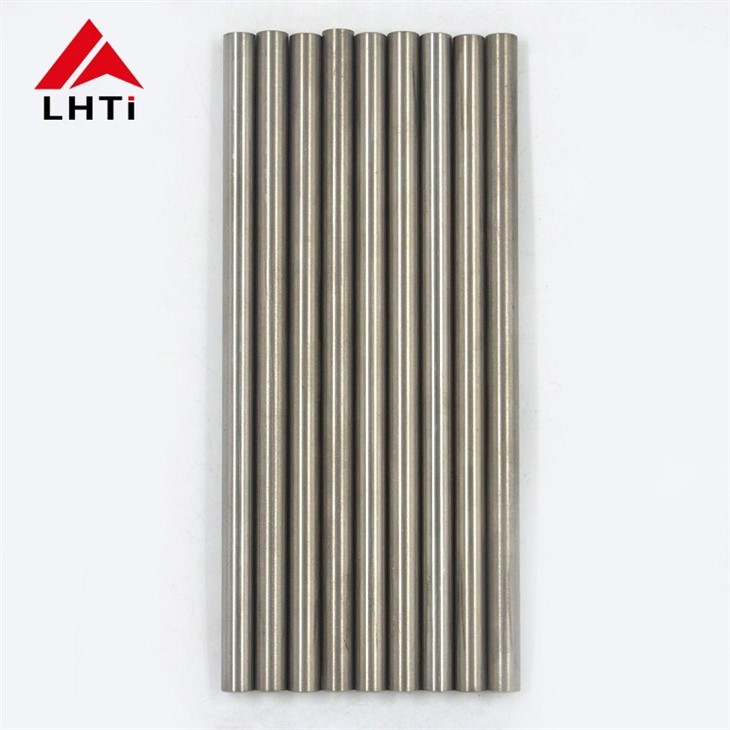

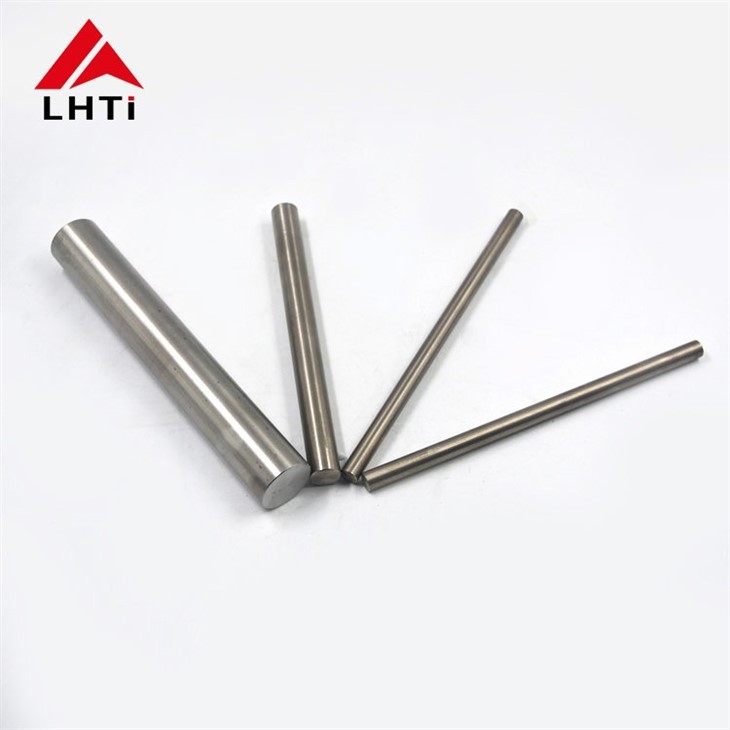

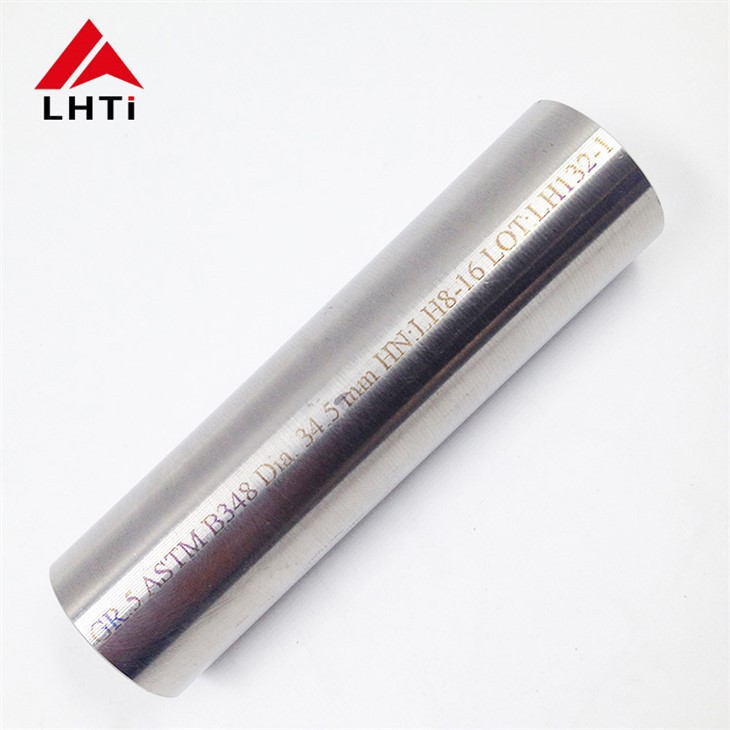

Medical Titanium Alloys Grade 5 Titanium Bar
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
