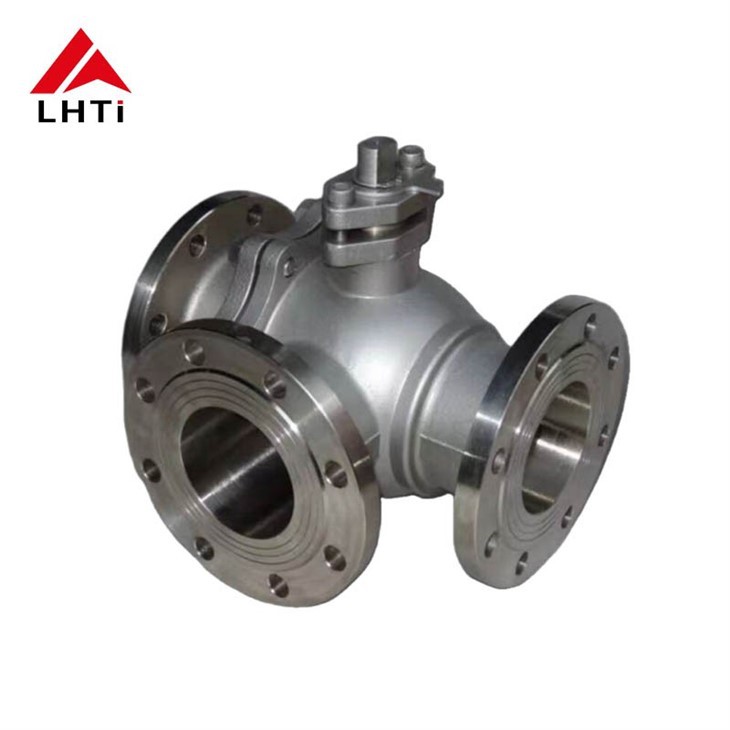

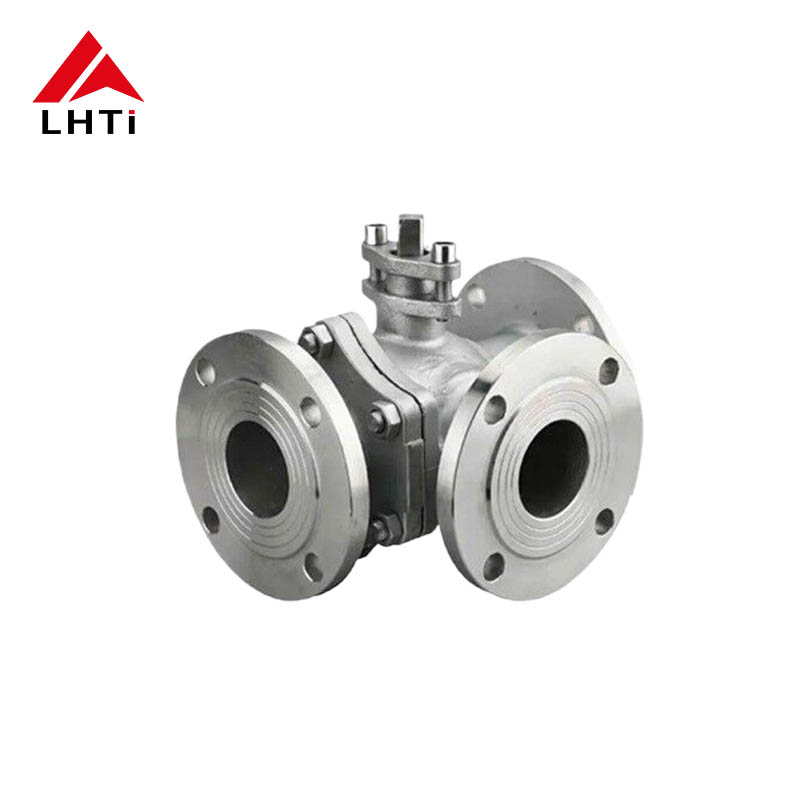

Three Way Titanium Ball Valve Gr1 Gr2

Three Way Titanium Ball Valve Gr1 Gr2

Product Description:

A three-way titanium ball valve is a specialized type of ball valve designed with three ports, allowing it to direct the flow of fluids in multiple directions. The construction of this valve takes advantage of titanium's superior properties, making it ideal for applications that require high corrosion resistance, strength, and durability. Below is a detailed overview of three-way titanium ball valves.

Three-way titanium ball valves can be classified into L-type (Q44F) and T-type (Q45F). Each type serves different functions in controlling the flow direction of the medium.

L-Type (Q44F) Three-Way Ball Valve:

The L-type three-way ball valve is primarily used for switching the flow direction of the medium. It allows the connection of two perpendicular channels, effectively changing the medium's path from one direction to another.

T-Type (Q45F) Three-Way Ball Valve:

The T-type three-way ball valve is designed for media distribution, confluence, and flow direction switching. It enables three channels to be interconnected, or alternatively, it can connect any two of the three channels. This versatile functionality allows for more complex flow control within a system.

Design & Testing International Standard of 3 Way Ball Valve:

Features of Three-Way Titanium Ball Valves:

Corrosion Resistance: Titanium exhibits exceptional resistance to corrosion from seawater, chlorine, and other aggressive chemicals, which makes these valves suitable for harsh environments.

High Strength-to-Weight Ratio: Titanium provides high strength while remaining relatively lightweight, making the valves easier to handle and install compared to those made from heavier materials.

Temperature Tolerance: These valves can perform well under high-temperature conditions, making them suitable for a variety of industrial applications.

Durability: Titanium's robustness ensures a long service life, reducing the need for frequent replacement or maintenance.

Biocompatibility: In applications where contact with biological tissues or pharmaceuticals is necessary, titanium's biocompatibility is beneficial.

Product Technical Specifications:

Different Materials of Ball Valves:

Special material ball valves can be manufactured using a variety of special materials to meet the requirements of different media and operating conditions in different application environments.

Titanium-With high corrosion resistance and lightweight, suitable for marine engineering and the chemical industry.

Nickel-With good oxidation and corrosion resistance, suitable for high-temperature and highly corrosive environments.

Zirconium-Excellent corrosion resistance, suitable for high-temperature acidic media.

Hastelloy-High strength and corrosion resistance, suitable for demanding chemical processing environments.

Monel-Good corrosion resistance and mechanical properties, suitable for seawater and chemical media.

Inconel-High-temperature alloy with excellent high-temperature strength and oxidation resistance.

Duplex Stainless Steel-Combines the advantages of austenitic and ferritic stainless steel, with high strength and corrosion resistance.

904L-Ultra-low carbon austenitic stainless steel, with excellent corrosion resistance, especially in strong acidic environments.

Alloy 20-Designed to resist sulfuric acid corrosion, suitable for the chemical and pharmaceutical industries.

Alloy C-4-With excellent corrosion resistance and strength, suitable for extreme corrosive environments.

Applications of Three-Way Titanium Ball Valves:

Chemical and Petrochemical Industry:

Fluid Distribution and Confluence: Three-way ball valves can achieve the mixing or separation of different chemicals, suitable for complex chemical reaction processes.

Flow Direction Switching: In production processes, sometimes it is necessary to quickly change the flow direction of fluids, which three-way ball valves can effectively meet.

Oil and Gas:

Pipeline Systems: Used in oil and gas pipeline systems to manage fluid transport paths and perform fluid splitting or merging operations.

Equipment Maintenance: During equipment maintenance, three-way ball valves can switch fluid paths to ensure that the entire system's operation is not affected.

Water Treatment:

Water Distribution: Used in sewage treatment plants and water plants, controlling the direction of water flow to switch between different treatment stages.

Filtration Systems: In filtration and purification systems, three-way ball valves can be used to switch the working status of different filters.

Food and Beverage Industry:

Liquid Handling: Used in beverage production lines and food processing, achieving the distribution, mixing, and flow direction switching of liquids.

Cleaning and Disinfection: In CIP (Clean-In-Place) systems, three-way ball valves help switch the flow of cleaning and disinfecting liquids.

Pharmaceutical Industry:

Production Processes: Used in pharmaceutical production to manage the direction and mixing of liquid medicines, ensuring the accuracy and sanitary conditions of the production process.

Laboratory Equipment: Used in laboratories for the distribution and handling of fluid samples.

HVAC (Heating, Ventilation, and Air Conditioning) Systems:

Cooling and Heating Systems: In central air conditioning systems, three-way ball valves are used to switch the flow direction of cooling water and heating water, regulating the system temperature.

Energy Management: By switching flow directions, they optimize energy use efficiency and reduce operating costs.
