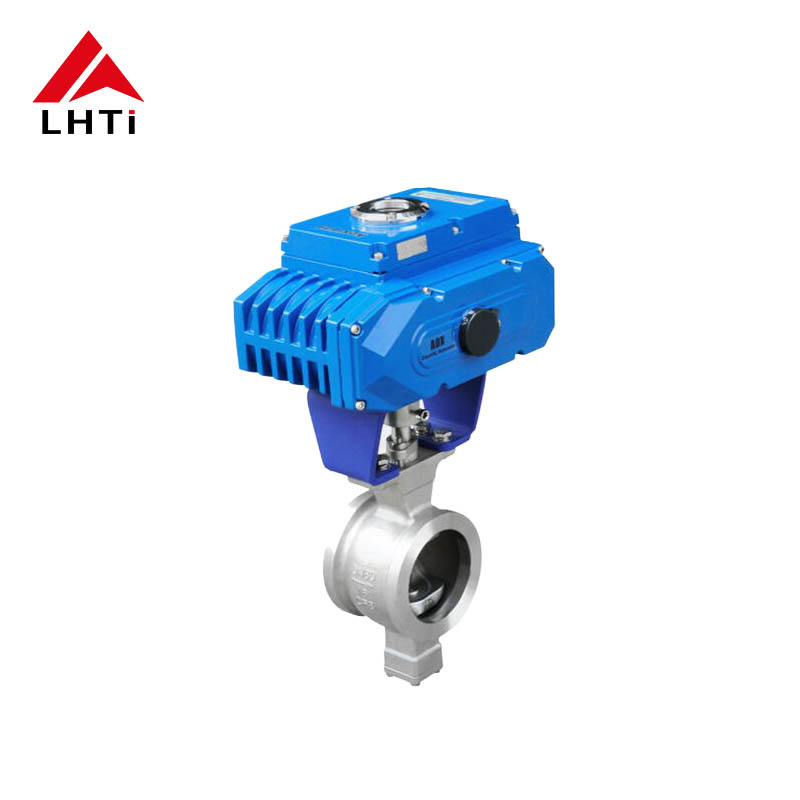

V Port Titanium Ball Valve

Product Description:

A titanium V-port ball valve is a specialized type of control valve that features a V-shaped port through which fluids can pass. This design allows for more precise flow control compared to traditional ball valves. The use of titanium in the construction of these valves offers exceptional corrosion resistance, making them suitable for demanding industrial applications.

Product Technical Specifications:

Main Features and Advantages of Titanium V-Port Ball Valves:

V-Port Design: The V-shaped port enables precise flow control, providing linear and stable modulation for applications requiring accurate throttling.

Corrosion Resistance: Made from titanium, these valves offer exceptional resistance to corrosion from a wide range of chemicals, seawater, and harsh environments, ensuring durability and longevity.

High Strength-to-Weight Ratio: Titanium's high strength combined with its lightweight nature makes the valve robust and easier to handle and install compared to valves made from heavier materials.

Temperature Tolerance: These valves can withstand extreme temperatures, making them suitable for both high-temperature and low-temperature applications.

Durability: The inherent robustness of titanium ensures a long service life, reducing the frequency of maintenance and replacements.

Biocompatibility: Titanium's biocompatible properties make these valves ideal for use in industries such as pharmaceuticals and biotechnology, where contact with biological materials is common.

Reduced Maintenance: Due to their high corrosion resistance and durability, titanium V-port ball valves require less frequent maintenance, leading to lower operational costs and downtime.

Smooth Operation: The precision engineering of the V-port design ensures smooth and efficient operation, enhancing overall process control and reliability.

Versatility: Suitable for a wide range of applications across different industries, including chemical processing, oil and gas, power generation, and more.

Enhanced Safety: Titanium's resistance to corrosion and high temperatures improves operational safety, particularly in critical and hazardous environments.

Calculate the Valve Size:

1. Determine the Cv Value

The Cv (Flow Coefficient) is a critical parameter that indicates the flow capacity of the valve. It is calculated using formulas specific to the flow characteristics of the fluid and the desired operating conditions. Typically, this involves using standard equations or software tools designed for flow control sizing.

2. Cavitation and Fluid Characteristics

Cavitation Check: Ensure that the selected valve can handle the pressure drop without causing cavitation. This involves checking the FL value (Liquid Pressure Recovery Factor) to avoid cavitation issues.

Expansion Factor: For compressible fluids, determine the Pressure Drop Ratio Factor to account for changes in fluid density across the valve.

3. Select Nominal Valve Size

Once you have the Cv value calculated:

V-Port Ball Valves: Choose a valve that provides the required Cv for flow rates between 20% to 80% of the port opening.

Round Port Ball Valves: Select a valve that supports Cv calculations for flow rates between 30% to 80% of the port opening.

Refer to Cv charts provided by valve manufacturers to select the appropriate nominal valve size based on your calculated Cv.

4. Valve Type and Materials

Valve Type: Determine whether a flanged, threaded, or welded valve connection is suitable for your application and piping system design.

Materials of Construction: Given your requirement for handling acetic acid, choose materials like titanium or stainless steel that offer corrosion resistance. Ensure compatibility with the fluid and environmental conditions.

Valve Seats: For V-Ball Control Valve applications, consider RTFE (Reinforced Teflon) valve seats, which offer good chemical resistance and sealing capabilities.

5. Actuator Selection

Select the Actuator: Choose an actuator based on the valve type (electric, pneumatic, hydraulic) and the operational requirements of your system. Factors to consider include torque or thrust requirements, control mechanism (on-off or modulating), and compatibility with automation systems if required.

How Titanium V Port Ball Valves Works?

The v-port ball valve utilizes a spherical ball with a v-shaped bore. It can be operated manually via a handle or automatically using an actuator. Rotating the handle operates the valve, simultaneously turning the ball. When the ball is rotated to open, the smaller end of the v-shaped bore opens first, ensuring precise flow control. To close the valve, the ball is rotated in the opposite direction. The valve opens or closes with a quarter turn of the handle to align the bore with the pipes, facilitating straightforward operation.

How to choose a V-Port Ball Valve:

When selecting a V-port ball valve, consider the following factors:

Pressure Rating: Ensure the valve matches the required pressure rating for your specific application.

Valve Size: Select a valve size that fits appropriately within your piping system.

Material Compatibility: Choose a V-port ball valve made from materials that are compatible with the medium being transported. Refer to material chemical resistance guides for detailed information.

Temperature Rating: Verify that the valve is capable of withstanding the temperatures present in your application.

Connection Type: Opt for a valve with a connection type that suits your application needs, such as flanged, welded, or threaded connections.
