Gr5 3 Ways Titanium Ball Valve

Product Introduction:

What is Gr5 Titanium Ball Valve?

A Gr5 titanium ball valve refers to a ball valve made from Grade 5 titanium alloy, which is also known as Ti-6Al-4V.

Grade 5 Titanium Alloy (Ti-6Al-4V): This is the most commonly used titanium alloy. It consists of 6% aluminum (Al) and 4% vanadium (V) alloyed with pure titanium (Ti). This alloy offers excellent corrosion resistance, high strength-to-weight ratio, and good toughness at low temperatures.

Ball Valve Construction: A ball valve made from Gr5 titanium alloy would feature a spherical disc (ball) with a port that can be rotated 90 degrees to control flow. The valve can be operated manually (using a lever or gear) or with an actuator for automated control.

Applications: Titanium ball valves, especially those made from Grade 5 titanium, are used in demanding applications where corrosion resistance, strength, and reliability are critical. These may include industries such as oil and gas, chemical processing, marine environments, and aerospace.

Advantages: The use of Grade 5 titanium alloy ensures that the valve is lightweight yet robust, offering resistance to corrosion from seawater, chemicals, and other harsh environments. It can withstand high temperatures and pressures, making it suitable for a wide range of industrial applications.

Types and Configurations: Like other titanium ball valves, Gr5 titanium ball valves can come in various configurations such as full port or reduced port, and may include special features like V port or cavity filler designs depending on specific application requirements.

Overall, Gr5 titanium ball valves combine the superior properties of titanium alloy with the functionality of ball valves, making them a preferred choice for industries requiring durable and reliable fluid control solutions in challenging environments.

Titanium Ball Valve Features:

A titanium ball valve consists of a spherical disc, or ball, designed to regulate fluid flow. The ball features a port that allows flow when aligned ("open"), and stops flow when perpendicular to the valve ends ("closed"). These valves are operated using levers, gears, or actuators and belong to the quarter-turn family, requiring a 90-degree turn for opening or closing.

Ideal for shut-off applications, titanium ball valves generally lack the precision needed for throttling. There are five main body styles: single body, three-piece body, split body, top entry, and welded, differing in how components, particularly the ball casing, are manufactured and assembled. Despite these variations, valve operation remains consistent across styles.

Regarding ball bore styles:

Full port (or full bore) titanium ball valves feature an oversized ball, matching the pipeline size to minimize friction loss. They are larger and more expensive, suited for applications requiring unrestricted flow, such as pigging in pipelines.

Reduced port (or reduced bore) valves have a smaller flow area than the pipe size, causing increased velocity due to constant flow discharge.

V port valves employ a 'V' shaped ball or seat, offering more precise control with near-linear flow characteristics. This design requires robust construction due to higher fluid velocities.

Trunnion valves anchor the ball at top and bottom, suitable for larger sizes and higher pressures.

Cavity filler valves address residue issues by sealing the gap between the ball bore and body, crucial in applications where fluid contamination or health hazards are concerns.

Additionally, titanium ball valves can be configured in three-way or four-way designs (L or T-shaped), allowing flow diversion to multiple ports simultaneously.

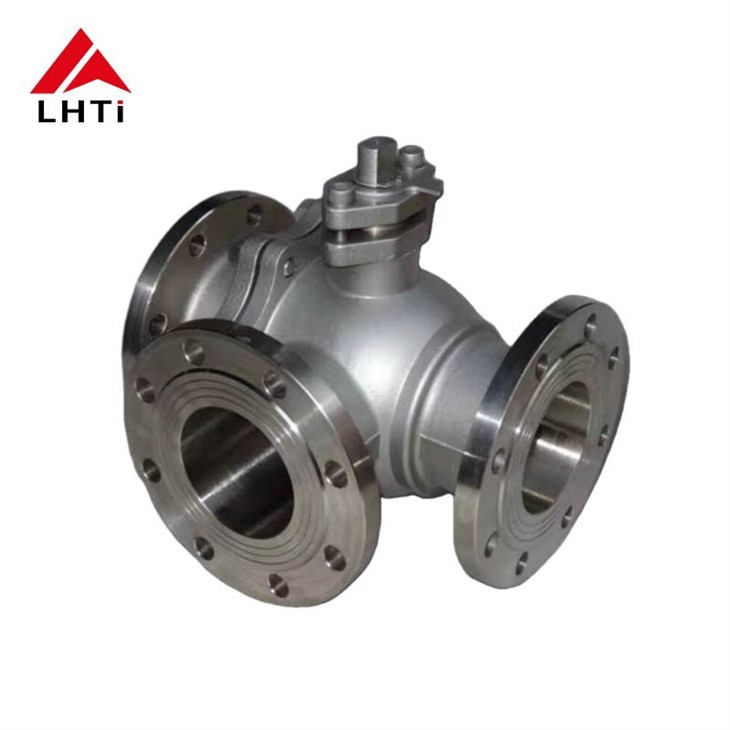

Three Way Titanium Ball Valve Specifications:

Installation and Maintenance Tips:

Ensure Proper Alignment: During installation, make sure all ports are correctly aligned to prevent leaks and ensure efficient flow control.

Use Compatible Seals: Depending on the application, choose seals that are compatible with the fluids being handled and the operational environment.

Regular Inspection: Periodic checks for signs of wear or damage can help maintain optimal performance and extend the valve's lifespan.

Cleanliness: In applications such as pharmaceuticals and food processing, ensure the valve is cleaned regularly to maintain hygiene standards.
