The blind flange |
|
Material Grade |
Gr1 Gr2 Gr3 Gr4 GR5 Gr7 Gr9 Gr11 |
|
Certification |
ISO9001:2008 Alibaba.com Assessed Supplier |
|
Standard |
ANSI B16.5 ASTM B16.5 ASME B16.47 JIS B2220 DIN2627-2628 |
|
size |
1/2"~ 60"NB NPS 1/2 - NPS 24 (DN 10 - 2000) |
|
Pressure Class |
PN0.25~32Mpa |
|
(DIN) PN6 PN10 PN16 PN25 though PN250 | |
|
150# 250# 300# 400# 500# 600# 900# 1500# 2500# | |
|
Technique |
Forged and CNC Machined |
|
type |
Weldnecks Slip-Ons Threaded Blind Socketweld and Lap-Joint |
|
Flange surface |
FF RF TG RJ MFM |

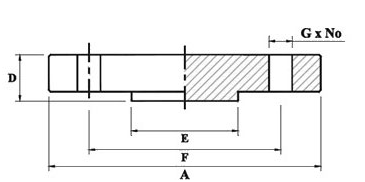

The blind flange is used to close ends of piping systems. It is a kind of round plate with no center hold but with all the proper bolt holes. This blind flange is available in various sizes and materials and is used to provide positive closer on the ends of pipes, valves or equipment nozzles. This flange helps in easy access to a line once it has been sealed. The blind flange is sometimes custom made or machined to accept a nominal sized pipe to which reduction is being made. This reduction can be a threaded reduction or welded reduction.
